A lightweight barrel bolt may be fine for a cabinet or small shed, but a large barn door or driveway gate can demand much heavier hardware. The YLINTBENG Heavy Duty 17-inch Slide Bolt Latch, model YLGLA-01, uses a carbon-steel body, thickened sliding bolt, and reinforced lock-ring design for larger gates and doors. Its main advantages are its substantial 17-inch size and the choice of left-side, right-side, screw-mounted, or welded installation. The tradeoff is that its size and 3.89-pound weight make it more suitable for sturdy structures than light doors or temporary installations.
Quick Verdict
Rating: 8.5/10, Recommended with caveats
Best For: Large barn doors, fence gates, warehouse gates, and other sturdy wood or metal closures that need a substantial manual slide bolt.
Bottom Line: The 17-inch carbon-steel build and flexible mounting options make this a practical choice for large gates. Its size is also its main limitation, since smaller doors, lightweight panels, and specialized automatic gates may need different hardware.
Key Specifications
| Specification | Detail |
|---|---|
| Brand | YLINTBENG |
| Model | YLGLA-01 |
| Product Type | Manual slide bolt gate latch |
| Overall Dimensions | 17 × 6 × 1.49 inches |
| Item Weight | 3.89 pounds |
| Material | Carbon steel |
| Color | Black |
| Installation Direction | Left or right side |
| Mounting Options | Screw mounting or welding |
| Suggested Surfaces | Wood, plastic/PVC, iron, and other suitable metal gate structures |
| Finish | Anti-rust finish |
| Main Applications | Barn doors, fence gates, warehouse gates, and entry gates |

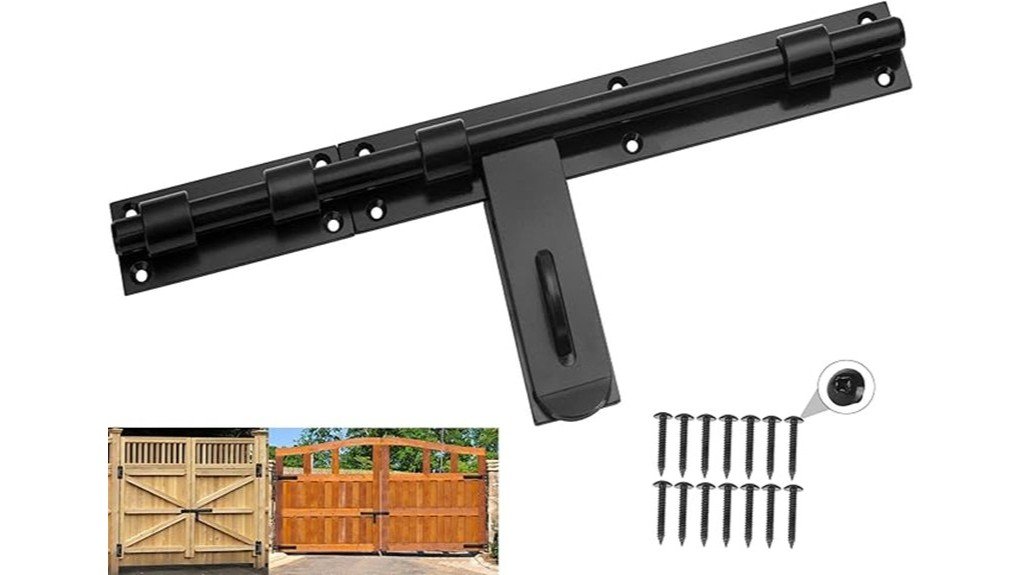

What Is the YLINTBENG 17-Inch Slide Bolt Latch?
The YLINTBENG YLGLA-01 is a large manual slide-bolt latch designed to hold substantial doors and gates in the closed position. Instead of using a small cabinet-style barrel bolt, it gives you a 17-inch assembly with a thickened sliding bolt and reinforced lock-ring structure.
The product is intended for larger applications such as barn doors, fence gates, warehouse entries, and property gates. The manufacturer also gives you mounting flexibility: you can position it for left-hand or right-hand use and either fasten it with screws on suitable surfaces or weld it to an appropriate metal structure.
Who Should Buy It?
Best For
- Large wooden barn doors or fence gates with enough structure for a 17-inch latch.
- Metal gates where welding can provide a permanent mounting option.
- Buyers who need left/right installation flexibility rather than a direction-specific latch.
Skip If
- Your door or gate is lightweight, narrow, or unable to support a 3.89-pound latch assembly securely.
- You specifically need a spring-loaded, keyed, electronic, or automatic gate-locking system.
- You need a manufacturer-published load rating or certified security rating.
Before You Buy: Measure the gate, mounting surface, closing gap, and receiver position before ordering. A 17-inch, 3.89-pound latch is substantial hardware, so do not assume it will fit a small gate simply because there is enough horizontal space.
How to Choose the Best Slide Bolt Latch for Your Security Needs
Start with the size and strength of your gate. Larger slide bolts can give you more substantial hardware, but only when the gate frame and mounting area can support them properly. A weak board, thin plastic panel, or badly aligned post can become the weak point even when the latch itself is heavy.
Next, check mounting direction and material. This model can be installed on either the left or right side. The listing describes screw installation for suitable wood or plastic surfaces and welding as an option for metal gates.
You should also decide what type of security you actually need. A manual slide bolt keeps a gate physically closed, but it should not automatically be treated as a substitute for a keyed lock, access-control system, or professionally designed high-security gate installation.
Build Quality and Materials
The latch uses carbon-steel construction and weighs 3.89 pounds. That weight helps explain why it feels more substantial than compact barrel bolts commonly used on cabinets, sheds, or lightweight garden gates.
The product description highlights a thickened sliding bolt and reinforced lock rings. Those parts matter because the bolt and receiver areas take much of the mechanical stress when a closed gate moves in wind or gets pushed.
The black hardware also has an anti-rust finish. That is useful for outdoor mounting, but an anti-rust coating does not mean the latch is maintenance-free or immune to corrosion. Scratches, standing water, salt exposure, and damaged coating can still shorten the life of steel hardware.
Fit and Compatibility
At 17 × 6 × 1.49 inches, this latch needs a fairly large, flat mounting area. It is better suited to substantial gates than thin residential screen doors or decorative lightweight panels.
Its left/right mounting design is helpful when your hinge orientation or gate layout makes a one-direction latch inconvenient. You can plan the latch position around your particular gate rather than choosing hardware solely because of its handed orientation.
For a double gate, barn door, or wide entry gate, confirm that the bolt and receiving section will remain aligned when both sides settle under their own weight. Gate sag can cause even a correctly installed slide bolt to bind later.
Installing Your Slide Bolt Latch
Begin with the gate fully closed and supported in its normal resting position. Hold the latch and receiving section in place before drilling or welding so you can confirm that the sliding bolt enters the receiver without being forced upward, downward, or sideways.
For a suitable wooden or plastic structure, the product listing describes screw mounting. For a metal gate, welding is another supported installation method. Welding should be handled by someone who understands the material, heat effects, structural positioning, and necessary protective equipment.
Do not use the latch to pull a badly misaligned gate into position. The gate should close correctly before the hardware is installed. Otherwise, constant side pressure can make the bolt difficult to operate and may stress the mounting points.
Pro Tip: Temporarily position the latch and cycle the bolt several times before making permanent holes or welds. Checking alignment with the gate fully closed can save you from having to reposition heavy hardware later.
Ease of Use and Operation
The latch uses a straightforward sliding mechanism with a grip handle. There are no electronics, batteries, apps, or keys involved in normal bolt operation.
That simplicity is useful on barns, workshops, storage areas, and manual gates where you want hardware that can be opened and closed quickly from the accessible side. The manufacturer describes the bolt as precision-engineered for smooth operation, but installation alignment will have a major effect on how smoothly it works after mounting.
If operation becomes stiff, first inspect the gate alignment, receiver position, dirt buildup, corrosion, or loose mounting hardware instead of forcing the bolt.
How It Performs in Real Use
For Large Barn Doors
The 17-inch size makes more sense on a substantial barn door than a small household door. Its steel construction and large mounting footprint give you a more substantial manual closure, provided the door frame itself is solid enough for the hardware.
For Wooden Fence Gates
On a wooden gate, the main concern is the mounting structure. Install the latch into solid framing rather than weak trim or damaged boards. You should also watch for seasonal wood movement, which can change bolt alignment.
For Metal Entry Gates
The ability to weld the latch to suitable metal makes this model useful for permanent installations where screw mounting is not preferred. Welding quality and gate alignment are critical, so this is a situation where experienced fabrication work can matter more than the latch itself.
For Long-Term Outdoor Use
The anti-rust finish is intended to help protect the steel surface outdoors. You should still inspect the latch periodically for coating damage, corrosion, loose fasteners, movement in the gate frame, and dirt around the sliding mechanism.
Compatibility and Installation Safety
This product is a piece of mechanical gate hardware, not a structural hinge or load-bearing support. The manufacturer does not provide a published weight-holding capacity for the latch, so you should not use it to support gate weight or replace proper hinges, posts, stops, or structural hardware.
For powered gates, do not assume a manual slide bolt is compatible with the operator. A closed manual bolt could prevent an automatic gate from moving and potentially damage equipment if the system is activated. Follow the gate-operator manufacturer’s instructions or use hardware specifically designed for the automation system.
When drilling, cutting, or welding, use appropriate protective equipment and follow tool and material instructions. Check for hidden wiring, sharp edges, pinch points, and combustible material before beginning installation.
Maintenance and Weather Resistance
The anti-rust finish gives the latch added protection, but outdoor steel hardware still benefits from occasional inspection. Check areas where the coating has been scratched or damaged, especially around mounting holes, welds, moving contact points, and exposed edges.
Keep the bolt path free of packed dirt, paint, and debris. If the gate begins to sag, correct the gate alignment rather than repeatedly forcing the bolt into the receiver. That usually gives you smoother operation and reduces unnecessary stress on the hardware.
Pros and Cons
Pros
- 17-inch design is intended for larger gates and doors.
- Carbon-steel construction with a substantial 3.89-pound item weight.
- Can be positioned for either left-side or right-side installation.
- Supports screw mounting on suitable surfaces or welding on metal.
- Anti-rust finish helps protect the steel in outdoor applications.
Cons
- The large 17-inch assembly is excessive for many small or lightweight doors.
- No manufacturer-published load capacity or independent security rating was found.
- Correct gate alignment is necessary for smooth operation, especially as gates settle or sag.
User Ratings and Feedback on the Slide Bolt Latch
At the time this review was updated, the Amazon listing displayed a 5.0 out of 5-star rating from 15 customer reviews. Ratings and review counts can change as more customers submit feedback, so treat that figure as a snapshot rather than a permanent product specification.
The positive feedback shown around the product focuses mainly on its substantial construction, smooth bolt movement, and usefulness on heavy gates. Those points also match the product’s physical design, but your own experience will still depend heavily on correct installation and gate alignment.
Is It Worth the Price?
This latch makes the most sense when you actually need large, substantial gate hardware. In that situation, its carbon-steel construction, 17-inch dimensions, dual-direction setup, and weld-or-screw mounting options give you useful flexibility that a compact barrel bolt may not provide.
The value is less convincing for a small garden gate, shed cabinet, or lightweight door where much smaller hardware can do the job. You are paying for a larger and heavier design, so the best value comes from installing it where those characteristics are genuinely useful.
How It Compares to Alternatives
If you need a smaller traditional slide bolt, a product such as the National Hardware N109-028 Sliding Bolt Door/Gate Latch is worth comparing. It uses heavy-gauge steel, supports left/right applications, and is a much more compact option for gates that do not need a 17-inch assembly.
If you specifically want spring-assisted operation, the National Hardware N109-214 Spring Loaded Heavy Duty Sliding Bolt takes a different approach with a spring-action mechanism. The YLINTBENG YLGLA-01 makes more sense when your priority is a large, straightforward manual bolt with welding capability and a substantial mounting footprint.
Frequently Asked Questions
How large is the YLINTBENG slide bolt latch?
The listed dimensions are 17 × 6 × 1.49 inches, and the latch weighs 3.89 pounds. Measure both the mounting surface and receiving area before buying because it is considerably larger than a small barrel bolt.
Can it be installed on either side of a gate?
Yes. The listing specifically supports left-side and right-side installation, giving you more freedom to position the latch around your hinge and gate layout.
Can you screw it on instead of welding it?
Yes. The manufacturer describes screw mounting for suitable wood or plastic/PVC applications and welding for metal gates. Use the mounting method that is appropriate for your structure and follow safe installation practices.
How much weight can this latch hold?
No manufacturer-published load capacity was found for the latch. Treat it as closing hardware, not as a structural support for the gate, and use proper hinges and posts to carry gate weight.
Is it suitable for an automatic or electric gate?
Do not assume that it is. This is a manual slide bolt, and leaving it engaged while an automatic operator tries to move the gate could create problems. Check the gate-operator instructions and use automation-compatible locking hardware when required.
Will the latch resist outdoor weather?
The latch has an anti-rust finish intended to improve outdoor durability. It is still steel hardware, so check it periodically for scratched coating, corrosion, debris, loose fasteners, and alignment problems.
Can the black latch be painted another color?
The product is sold with a black anti-rust finish, but the listing does not provide specific repainting instructions. Adding paint without proper surface preparation could interfere with moving areas or the existing protective finish, so keep coatings away from the sliding mechanism and follow suitable metal-paint guidance if you modify it.
The Bottom Line
The YLINTBENG YLGLA-01 17-inch Slide Bolt Latch is a strong fit for substantial manual gates where you can use its large carbon-steel construction, reversible installation, and screw-or-weld mounting options. Skip it for lightweight doors, automatic gates without confirmed compatibility, or applications that require a certified load or security rating.
Its biggest strength is the combination of size and mounting flexibility. Its biggest limitation is that proper fit, alignment, and a strong mounting structure are essential if you want the heavy latch to work smoothly.
