Keeping a Powermax30 XP cutting cleanly depends on using the right torch consumables and replacing worn parts before they start hurting arc quality. The Hypertherm 851479 Consumable Kit gives you a factory-matched assortment of standard and FineCut parts for the Duramax LT hand torch, including seven electrodes, seven nozzles, two shields, a retaining cap, and a swirl ring. It is a practical choice when you want an organized supply of genuine replacement parts instead of ordering each item separately. The main limitation is compatibility: you need to match the consumables to the correct Powermax system, torch, input power, and cutting setup.
Quick Verdict
Rating: Recommended
Best For: Powermax30 XP owners who want a ready supply of genuine standard and FineCut Duramax LT consumables.
Bottom Line: The 851479 kit covers the wear parts you are most likely to replace and keeps matched part numbers together in one case. It makes less sense if you only need one consumable type or if your plasma system uses a different torch family.
Key Specifications
| Specification | Detail |
|---|---|
| Brand | Hypertherm |
| Part number | 851479 |
| Product type | Essential handheld plasma cutting consumable kit |
| Primary compatibility | Powermax30 XP with Duramax LT hand torch |
| Kit format | Standard and FineCut consumables in an organized storage case |
| FineCut shield | 420115, quantity 1 |
| Standard shield | 420116, quantity 1 |
| Retaining cap | 420114, quantity 1 |
| FineCut nozzles | 420117, quantity 3 |
| Standard nozzles | 420118, quantity 4 |
| Swirl ring | 420211, quantity 1 |
| Electrodes | 420120, quantity 7 |
| Total pieces | 18 consumable parts |
Key Takeaways
- The Hypertherm 851479 is a genuine essential consumable kit built around Powermax30 XP handheld cutting with the Duramax LT torch.
- You get 18 pieces, including seven electrodes, four standard nozzles, three FineCut nozzles, two shield styles, one retaining cap, and one swirl ring.
- Standard and FineCut consumables must be used as matched sets. Do not mix the standard nozzle with the FineCut deflector or the FineCut nozzle with the standard shield.
- For Powermax30 XP operation on 120 V input, Hypertherm specifies the FineCut nozzle and FineCut deflector rather than the standard nozzle and shield.
- The kit is best for owners who want a broad replacement assortment. A smaller combo pack may be more economical when you only need nozzles and electrodes.
What Is the Hypertherm 851479 Consumable Kit and How Does It Work?

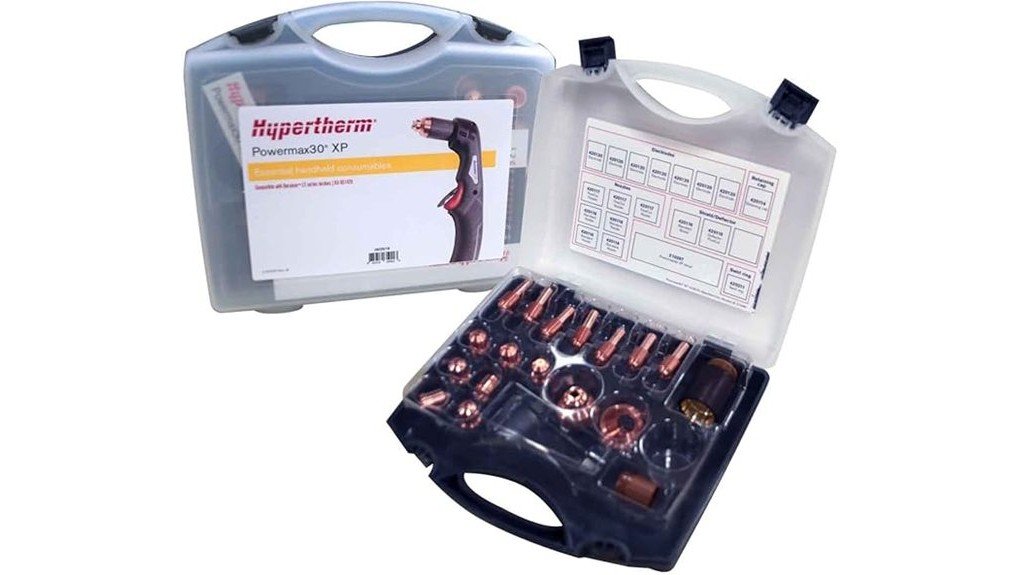

The Hypertherm 851479 is an essential consumable kit for handheld plasma cutting with the Powermax30 XP. Instead of giving you one replacement part, it combines the torch components that wear or need periodic replacement, then keeps them organized by part number.
The kit supports two Powermax30 XP cutting configurations. The standard setup uses nozzle 420118 with shield 420116. The FineCut setup uses nozzle 420117 with FineCut shield or deflector 420115. Both setups use electrode 420120, swirl ring 420211, and retaining cap 420114.
That distinction matters because plasma torch consumables work as a system. Correctly matched parts help control gas flow, arc shape, cooling, and protection around the nozzle. The kit also uses Hypertherm features described for this product, including TrueFlow electrode alignment, SpringStart electrode technology, a vented shield, and an axial swirl ring.
Before You Buy: Confirm your plasma cutter and torch before ordering. Part 851479 is intended for the Powermax30 XP Duramax LT handheld setup, and you should not assume these consumables fit another Powermax model or a different torch family.
Who Should Buy It?
Best For
- Powermax30 XP owners who use a Duramax LT hand torch and want genuine replacement consumables.
- Shops that use both standard and FineCut configurations and want both sets available.
- Frequent users who prefer an organized spare kit instead of waiting for individual parts after a consumable wears out.
Skip If
- Your plasma cutter uses a different torch or consumable family.
- You only need one or two nozzles or electrodes and do not need the broader 18-piece assortment.
- You need HyAccess extended-reach consumables for confined or hard-to-reach cuts.
Essential Features of the Hypertherm 851479
TrueFlow Alignment and Cooling
TrueFlow is intended to keep the electrode centered in relation to the torch’s internal flow path. Better alignment supports consistent cooling around the consumable stack and can help you maintain repeatable cut quality as parts wear during normal use.
SpringStart Electrode Technology
SpringStart is designed to provide reliable torch starting without relying on moving parts in the torch for that function. For you, the practical benefit is consistent starting behavior when the consumables are installed correctly and remain within usable condition.
Vented Shield and Swirl Ring
The vented shield helps stabilize the arc, cool the consumables, and protect the torch end from spatter. The swirl ring controls gas flow around the electrode and nozzle, so it is a small part with an important role in maintaining the intended plasma stream.
Tool-Free Consumable Changes
The consumables are designed for tool-free removal and installation at the torch. That reduces maintenance friction when you need to inspect or replace a worn nozzle, electrode, shield, or related part. Tool-free replacement does not remove the need to shut the system down and follow Hypertherm’s torch-service safety instructions.
How It Performs in Real Use
Routine Standard Cutting
For regular drag-cutting work with the standard configuration, the kit gives you four 420118 nozzles plus the matching 420116 shield. Because electrodes are also included in quantity seven, you can replace the nozzle and electrode together as Hypertherm recommends rather than trying to stretch a badly worn pair.
FineCut Work
For finer-feature work, you get three 420117 FineCut nozzles and the 420115 FineCut deflector. The same electrode, swirl ring, and retaining cap serve both standard and FineCut configurations, so the kit covers both setups without duplicating every torch component.
120 V Powermax30 XP Operation
On a 120 V input circuit, the consumable choice is especially important. Hypertherm directs Powermax30 XP users to the FineCut nozzle 420117 and deflector 420115 for 120 V operation, with output adjusted to suit the circuit. The standard nozzle 420118 and shield 420116 are not the specified 120 V combination.
Keeping Spares Ready in the Shop
The storage case is useful when the cutter is shared or moved between work areas. Instead of loose consumables collecting dust in a drawer, you can keep the replacement parts together and use the printed part numbers to identify what needs reordering.
Pro Tip: Keep the standard nozzle and shield together as one set and the FineCut nozzle and deflector together as another. This simple separation helps prevent accidental mixing when you change consumables at the bench.
How to Use the Consumables Correctly
- Confirm the torch and system: Verify that you are servicing the correct Powermax30 XP Duramax LT handheld configuration.
- Choose one matched setup: Use 420118 with 420116 for the standard configuration, or 420117 with 420115 for FineCut.
- Do not mix the two front-end combinations: Hypertherm specifically warns against pairing a standard nozzle with the FineCut deflector or a FineCut nozzle with the standard shield.
- Inspect the shared components: Check the 420120 electrode, 420211 swirl ring, and 420114 retaining cap whenever you service the torch.
- Replace the nozzle and electrode together: This is Hypertherm’s stated replacement guidance for the Duramax LT hand torch consumables.
- Follow the operator manual: Use the correct power-input settings, gas supply, shutdown procedure, and personal protective equipment for your Powermax system.
Compatibility and Safety
Consumable compatibility is the most important buying check. A part can look similar and still be wrong for the torch, amperage range, or cutting process. Use the Hypertherm part numbers in the kit and compare them with your torch manual before installation.
Plasma cutting involves electrical energy, compressed gas, a high-temperature arc, sparks, and hot metal. Shut the system down according to the operator manual before servicing torch consumables, wear the required eye and body protection, and do not handle hot parts immediately after cutting.
Pros and Cons
Pros
- Includes 18 genuine Hypertherm consumable parts in one organized kit.
- Covers both standard and FineCut Powermax30 XP configurations.
- Provides seven electrodes and seven total nozzles for routine replacement needs.
- Uses tool-free consumable changes for straightforward torch maintenance.
- Individual part numbers make later reordering easier.
Cons
- Compatibility is limited to the specified Hypertherm torch and system configurations.
- The full kit may be more than you need if only one nozzle or electrode requires replacement.
- Standard and FineCut front-end parts must be kept in the correct matched combinations.
Is It Worth the Price?
The 851479 sits in the genuine OEM replacement category rather than the lowest-cost consumable option. Its value comes from getting a complete, matched assortment with known Hypertherm part numbers, not from chasing the cheapest individual piece.
It is worth considering if you use the Powermax30 XP regularly and want both standard and FineCut spares available before a worn consumable stops a job. If you only use one cutting setup or replace consumables infrequently, a smaller Hypertherm combo pack can be the more focused purchase.
How It Compares to Alternatives
Hypertherm’s 428243 standard combo pack is a simpler option when you mainly need standard nozzles and electrodes, while the 428244 FineCut combo pack focuses on FineCut nozzles and electrodes. The 428337 HyAccess kit serves a different need, providing extended-reach consumables for cutting or gouging in confined areas.
The 851479 makes the most sense when you want a broader stock of standard and FineCut parts in one case rather than a small single-purpose replacement pack.
What Should You Check Before Ordering?
Start with the model plate on your plasma cutter and the torch family you are using. Then compare the consumable numbers you already have with 420115, 420116, 420114, 420117, 420118, 420211, and 420120.
Also consider which parts you actually consume. If nozzles and electrodes are your main recurring replacements, the 18-piece kit gives you useful depth. If you already have shields, a swirl ring, and a retaining cap in good condition, a smaller combo pack may be enough.
Choosing Your Consumable Kit: Tips for the Right Selection
- Match the machine and torch: Confirm Powermax30 XP and the correct Duramax LT handheld torch configuration.
- Match your cutting setup: Decide whether you use standard consumables, FineCut consumables, or both.
- Check your input power: If you run the Powermax30 XP on 120 V, follow Hypertherm’s FineCut consumable guidance for that input.
- Buy for your replacement pattern: Choose the 851479 when a broad spare assortment is useful, or a smaller combo pack when you only need nozzles and electrodes.
Frequently Asked Questions
What exactly comes in the Hypertherm 851479 kit?
You get 18 parts: one 420115 FineCut shield, one 420116 standard shield, one 420114 retaining cap, three 420117 FineCut nozzles, four 420118 standard nozzles, one 420211 swirl ring, and seven 420120 electrodes.
Is the 851479 made for the Powermax30 XP?
Yes. Hypertherm identifies 851479 as the essential handheld cutting consumable kit for the Powermax30 XP. Verify your torch configuration before using it with any other system.
Can you mix the standard and FineCut consumables?
Do not mix the front-end combinations. Use standard nozzle 420118 with shield 420116, or FineCut nozzle 420117 with deflector 420115. The electrode, swirl ring, and retaining cap are shared between the two configurations.
Which consumables should you use on 120 V input?
For Powermax30 XP operation on a 120 V input circuit, Hypertherm specifies the FineCut nozzle 420117 and FineCut deflector 420115. Follow the manual’s amperage guidance for your circuit size.
Should the nozzle and electrode be replaced together?
Hypertherm’s Powermax30 XP operator guidance says to replace the nozzle and electrode at the same time. Inspect the other torch consumables as well and replace them when their condition calls for it.
Does this kit include a replacement torch?
No. The 851479 is a consumable kit, not a complete torch or plasma cutter. It supplies the listed shields, retaining cap, nozzles, swirl ring, and electrodes.
Is the full kit better than a smaller combo pack?
It depends on your usage. The 851479 is better when you want a broad stock of standard and FineCut consumables plus the shield, retaining cap, and swirl ring. A 428243 or 428244 combo pack can be more efficient when you mainly need nozzles and electrodes.
How should you maintain these consumables?
Keep the parts clean and stored in the kit case until needed. Inspect the torch consumables regularly, replace worn parts with the correct matching numbers, and follow the Powermax30 XP operator manual for servicing and safety.
The Bottom Line
The Hypertherm 851479 Consumable Kit is a strong fit for Powermax30 XP owners who want a genuine 18-piece assortment covering both standard and FineCut handheld cutting. Its main strength is the complete, organized mix of matched replacement parts, while its main limitation is that you need the correct Hypertherm system and consumable configuration to use the kit properly.
If you only need a couple of nozzles and electrodes, compare the smaller Hypertherm combo packs first. If you want a ready supply of the main Duramax LT consumables, the 851479 is the more complete option.
