A single NEMA 6-50 outlet can become inconvenient when you regularly switch between a welder and a compatible Level 2 EV charger. The Suplevel 50 Amp Welder Y Splitter Adapter Cord gives you two receptacle connections from one 6-50P supply plug, reducing repeated plugging and unplugging. Its 3-foot, 6 AWG construction is made for high-current equipment, but there is an important limit: the listing tells you to operate only one connected device at a time. This review explains the splitter’s verified specifications, compatibility, safety concerns, and the setups where it makes the most sense.
Quick Verdict
Rating: 8.5/10, Recommended with caveats
Best For: Garages and workshops that need convenient access to one compatible welder or EV charger at a time from a NEMA 6-50 outlet.
Bottom Line: The Suplevel splitter combines a short 3-foot cord, 6 AWG copper conductors, ETL listing, and convenient grip handles. Its main limitation is that you should not treat the two receptacles as permission to run two high-current loads at the same time.
Key Specifications
| Specification | Detail |
|---|---|
| Brand | Suplevel |
| Product Type | 50 Amp welder and EV charging Y splitter adapter cord |
| Input | NEMA 6-50P male plug |
| Outputs | Product title identifies two NEMA 6-50R female connectors |
| Connector Design | Male-to-female-female, 3 prong Y splitter |
| Electrical Rating | 50A, 250V |
| Cord Length | 3 feet |
| Conductors | 6 AWG pure copper core wire |
| Contact Material | Nickel-plated brass contacts |
| Cord/Jacket | STW heavy-duty construction; listing describes flame-retardant and water-resistant properties |
| Color | Yellow |
| Certification | ETL Listed |
| Listed Applications | Compatible NEMA 6-50 welders and Level 2 EV charging equipment |
| Warranty | Listing states 24 months |
| Important Use Limit | Manufacturer listing instructs you to use only one connected device at a time |
Before You Buy: Confirm the receptacle configuration shown on the current product page. The main Amazon title identifies two 6-50R outputs, while one listing bullet mentions a 6-50R/6-30R configuration. Also confirm that your existing circuit, receptacle, breaker, equipment plugs, and charging equipment are compatible before connecting a high-current load.
Key Takeaways
- The Suplevel splitter uses a NEMA 6-50P male input and is sold primarily as a dual-receptacle adapter for compatible welders and Level 2 EV charging equipment.
- Its electrical rating is 50 amps at 250 volts, with 6 AWG pure copper conductors and nickel-plated brass contacts.
- The 3-foot cord is short enough for outlet-side organization without adding an unnecessary long cable run.
- Ergonomic grips make the large plug and receptacle ends easier to connect and disconnect.
- The product is ETL Listed, and the listing describes the jacket as flame retardant and resistant to water and corrosion.
- Although two devices can remain connected, the listing specifically advises you to use only one device at a time to help avoid circuit-breaker trips.
What Is the Suplevel 50 Amp Welder Y Splitter?

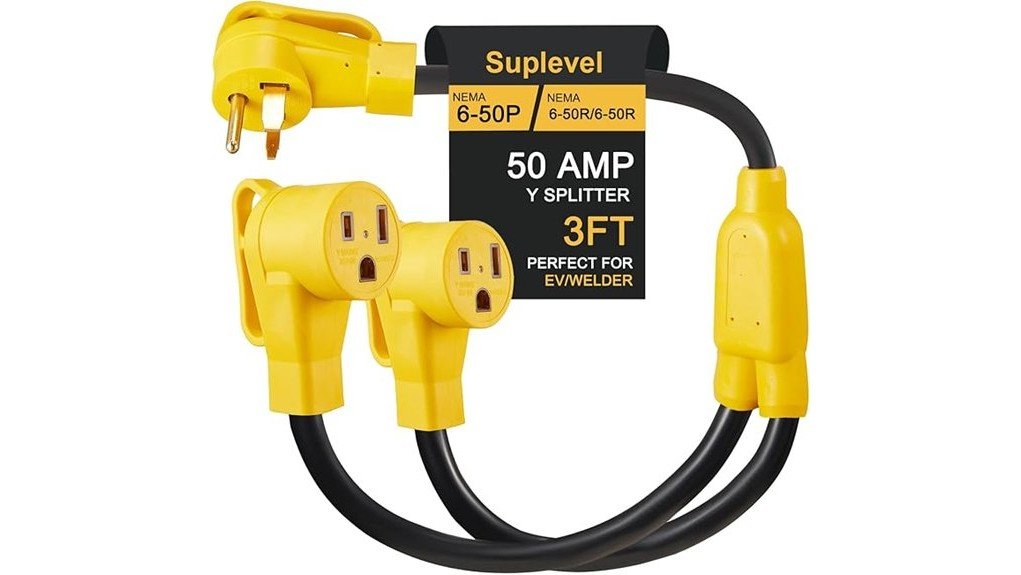

The Suplevel 50 Amp Welder Y Splitter is a short power adapter intended for a NEMA 6-50 electrical setup. One 6-50P male plug connects to your existing receptacle, while the Y-shaped cable provides two female connection points. This can be useful when you own two pieces of equipment that use the same outlet but do not want to repeatedly unplug one cord and insert another.
The design is especially relevant to garages where a NEMA 6-50 outlet may serve both a welder and compatible Level 2 EV charging equipment. The splitter does not connect directly to an electric vehicle. Your EV charging equipment must itself have a compatible power-input arrangement.
Its strongest practical feature is convenience rather than increased electrical capacity. The splitter gives you additional connection points, but it does not increase the capacity of the branch circuit feeding the outlet.
Who Should Buy It?
Best For
- Garage owners who regularly switch between two compatible NEMA 6-50 devices.
- Welders who want to reduce repeated plugging and unplugging at the wall receptacle.
- EV owners whose Level 2 charging equipment uses a compatible NEMA 6-50 connection and who understand the one-load-at-a-time limitation.
Skip If
- You need to operate two high-current devices from the splitter at the same time.
- Your outlet, breaker, wiring, or equipment uses a different NEMA configuration.
- You need a permanent solution for adding electrical capacity rather than a convenience adapter.
Build Quality and Materials
The cord uses 6 AWG pure copper core wire, a useful specification for a product designed around a 50A connection. The listing also identifies nickel-plated brass contacts, which are intended to resist corrosion and oxidation at the electrical contact surfaces.
Suplevel describes the outer construction as heavy duty and flame retardant. Amazon’s technical information describes the product as water resistant, while marketing text also uses stronger waterproof wording. For practical safety, it is better to treat the cord as water resistant rather than assuming energized connectors can be exposed to rain, puddles, or standing water.
The bright yellow exterior also makes the short adapter easier to see around a garage or workshop floor, where darker electrical cords can blend into shadows.
Fit and Compatibility
The core compatibility requirement is straightforward: your supply receptacle must accept a NEMA 6-50P plug, and your connected equipment must use the matching receptacle configuration supplied by the splitter. A plug that looks similar is not enough. NEMA configurations are designed for specific electrical arrangements, so you should identify the exact plug and receptacle types before ordering.
The Amazon listing markets the splitter for welders and Level 2 EV charging setups, including charging equipment associated with Tesla UMC and J1772-based EV use. That does not mean every Tesla or J1772 charger automatically fits. The relevant detail is the input plug on the EV charging equipment, not simply the vehicle model or vehicle-side charging connector.
There is also a listing inconsistency worth checking. The product title and primary description identify a NEMA 6-50P to two 6-50R configuration, but one package-description bullet mentions 6-50R/6-30R. Check the current connector photos and selected variant before purchasing.
Pro Tip: Read the molded NEMA markings on your outlet and equipment plugs instead of matching them by appearance alone. Confirm the breaker and circuit are suitable for the equipment you intend to operate, and use a qualified electrician if you are unsure.
How to Use the 50 Amp Welder Y Splitter Adapter Cord
Start with all connected equipment switched off. Inspect the splitter, wall receptacle, and equipment plugs for visible damage, looseness, discoloration, exposed conductors, or corrosion. Do not use damaged electrical equipment.
Insert the NEMA 6-50P male plug fully into a compatible outlet. You can then connect compatible equipment to the splitter’s female ends. The grip handles are useful because they let you hold the connector body instead of pulling on the cable itself.
Most importantly, follow the listing’s instruction to operate only one connected device at a time. Having two receptacles available does not mean the supply circuit suddenly has enough capacity for two high-current loads.
When you finish, switch equipment off before disconnecting it. Keep connector faces clean and dry, and avoid crushing the cord under vehicles, doors, equipment stands, or other heavy objects.
Compatibility and Safety
High-current 240/250V equipment deserves more attention than an ordinary household extension cord. A splitter cannot correct undersized wiring, an incorrect breaker, a damaged receptacle, poor grounding, or an incompatible plug configuration.
Always follow the welder or EV charger’s own electrical requirements in addition to the splitter instructions. If your garage wiring has been modified, uses an unfamiliar receptacle, becomes unusually warm, shows signs of arcing, or repeatedly trips a breaker, stop using the setup and have it evaluated by a qualified electrician.
The product’s ETL listing is a useful confidence point, but certification does not remove the need for correct installation and load management. The safest approach is to treat the splitter as a connection convenience, not as a way to increase available circuit power.
Using the 50 Amp Welder Y Splitter for EV Charging and Welding
This is the use case that makes the adapter easiest to understand. Suppose your garage has one compatible NEMA 6-50 receptacle, your welder uses that connection, and your portable Level 2 EV charger also needs it. Without a splitter, you may repeatedly unplug one heavy connector and install the other.
The Suplevel adapter can leave both compatible cords physically connected while giving you a convenient way to choose which device you operate. That can reduce wear caused by constantly handling the wall receptacle.
However, you should not weld while the other connected device is actively charging the vehicle. Amazon’s own listing says to use only one device at a time to help prevent breaker trips.
How It Performs in Real Use
For a Home Welding Garage
The 3-foot length keeps the splitter close to the wall instead of creating a long coil of extra cable. The ergonomic grips can also make it easier to handle large NEMA connectors when changing your equipment arrangement.
For a Shared Welder and EV Charging Outlet
This is the splitter’s strongest use case. Two compatible device cords can remain connected while you alternate between welding and EV charging. You still need to make sure the inactive device is not drawing power while the other high-current load is operating.
For Repeated Plug Changes
If your main frustration is repeatedly removing a large plug from the same wall receptacle, the Y adapter can make the setup more convenient. You interact more often with the splitter’s connector ends instead of constantly changing the equipment plugged directly into the wall.
For Outdoor or Semi-Outdoor Work Areas
The listing describes water-resistant and corrosion-resistant construction, which is helpful in demanding environments. Still, do not interpret that description as permission to leave energized plug connections exposed to rain or standing water. Follow the equipment instructions and local electrical requirements for outdoor use.
Pros and Cons
Pros
- Verified 50A, 250V electrical rating.
- Heavy 6 AWG pure copper conductors.
- ETL Listed.
- Short 3-foot design reduces unnecessary cable clutter.
- Grip handles make large connectors easier to plug and unplug.
Cons
- Not intended as a way to operate two high-current loads simultaneously.
- Useful only when your outlet and equipment have the correct compatible connector types.
- Amazon’s listing contains a 6-50R versus 6-30R connector-description inconsistency that should be checked before ordering.
Customer Support and Warranty
The Amazon listing states that the splitter includes 24/7 customer support and a 24-month warranty. That is useful for a product that may be exposed to frequent connecting, disconnecting, garage storage, and heavy electrical equipment.
Warranty terms can depend on the seller and purchase channel, so keep your order information and check the current warranty wording on the product page. A warranty should not be used as a reason to continue operating a cord that shows physical or electrical damage.
Is It Worth the Price?
The Suplevel splitter makes the most sense when its convenience solves a specific problem: you already have one NEMA 6-50 outlet and two compatible devices that you use at different times. In that setup, 6 AWG copper conductors, ETL listing, grip handles, and the 3-foot length give the product a stronger feature set than a basic light-duty adapter.
Its value drops if you actually need additional electrical capacity. This splitter does not create a second independent circuit. Buyers who need two large loads operating together should consider a properly designed electrical solution rather than relying on a Y adapter.
How It Compares to Alternatives
A second dedicated NEMA 6-50 circuit is the more appropriate alternative when you genuinely need independent electrical capacity for multiple devices, although installation requires appropriate wiring and professional evaluation. A single-device extension cord may be simpler if your only problem is distance rather than repeated plug changes.
A properly rated switching or power-management solution can also make more sense when two large appliances share a supply and you want controlled load selection. The Suplevel splitter is the simpler choice when your goal is merely to keep two compatible cords connected while consciously operating one device at a time.
Frequently Asked Questions
Can I run a welder and EV charger at the same time?
You should not assume that you can. The Amazon listing specifically tells you to use only one connected device at a time to help prevent circuit-breaker trips. The splitter adds connection points, not additional circuit capacity.
Is this splitter rated for 50 amps?
Yes. The current Amazon listing identifies the adapter as a 50A, 250V product. Your actual circuit and connected equipment must also meet the applicable electrical requirements.
Does it have two NEMA 6-50R outlets?
The product title and main description identify a 6-50P male plug feeding two 6-50R female connectors. One Amazon bullet also mentions a 6-50R/6-30R configuration, so confirm the connector photos and selected product variant before ordering.
Can I plug it into a 30 amp outlet?
Do not choose an outlet based only on its amperage. This model uses a NEMA 6-50P input and requires the correct compatible receptacle and circuit. Do not force plugs or use an improvised conversion to make incompatible electrical equipment fit.
Can I use it with a Tesla or J1772 EV?
The listing markets it for compatible Level 2 EV charging equipment, including Tesla UMC and J1772-related setups. Compatibility depends on the AC input plug used by your charging equipment, not simply the make of the vehicle or the vehicle-side connector.
Is the Suplevel splitter safe for outdoor use?
The listing describes the jacket as resistant to water and corrosion, but energized plug connections still need appropriate protection. Do not leave connectors exposed to rain, puddles, or standing water, and follow the equipment instructions and applicable electrical requirements.
How long is the adapter cord?
The verified product length is 3 feet. That makes it an outlet-side splitter rather than a long extension cord.
Who should skip this Y splitter?
Skip it if you need two high-current loads running together, if your receptacle is not NEMA 6-50 compatible, or if your real problem is an inadequate electrical circuit. In those cases, have the electrical setup evaluated and choose a solution designed for the required load.
The Bottom Line
The Suplevel 50 Amp Welder Y Splitter Adapter Cord is worth considering when you want a convenient way to alternate between compatible welding and EV charging equipment from one NEMA 6-50 connection. Its 6 AWG copper construction, ETL listing, 3-foot length, and grip handles are meaningful strengths, but buyers who need simultaneous high-current operation or a different connector type should choose another electrical solution.
