Holding two pieces of metal steady during welding can be harder than making the weld itself, especially when a standard clamp is too slow to reposition. The IRWIN VISE-GRIP Fast Release 6R Locking C-Clamp, model IRHT82585, is a compact 6-inch locking clamp designed for quick fit-up, fabrication, repair work, and general clamping. Its main advantages are the wide-opening C-clamp jaws, adjustable locking pressure, and one-handed triggerless release. Its main limitation is reach, so you should check the jaw opening and throat depth before buying it for larger fabrication work.
Quick Verdict
Editorial Rating: 8/10
Best For: Welders, fabricators, automotive repair work, and anyone who needs a compact locking C-clamp for repeated positioning.
Bottom Line: The IRWIN IRHT82585 combines a durable alloy-steel body with quick pressure adjustment and a convenient triggerless release. Its compact 6-inch format is useful around smaller assemblies, but its limited reach means it will not replace larger welding clamps.
Key Takeaways
- The IRWIN IRHT82585 is a 6-inch Fast Release locking C-clamp, not a 10-inch welding plier.
- Its wide-opening C-shaped jaws are useful for holding sheet metal, angle iron, brackets, tabs, and other workpieces during fit-up.
- The clamp uses high-grade heat-treated alloy steel for strength and durability.
- A hex adjustment screw lets you set clamping pressure and fit before locking the handles.
- The one-handed triggerless release is designed to make opening faster and easier than a traditional locking mechanism.
- The compact size is convenient, but the maximum jaw opening and throat depth limit how far it can reach around larger workpieces.
Key Specifications
| Specification | Detail |
|---|---|
| Brand | IRWIN VISE-GRIP |
| Model | IRHT82585 |
| Product Type | Fast Release locking C-clamp |
| Nominal Clamp Size | 6 inches |
| Maximum Jaw Opening | Up to 2-1/4 inches |
| Throat Depth | 1-1/2 inches |
| Jaw Width | 1/2 inch |
| Pad Type | Fixed |
| Body Material | Heat-treated alloy steel |
| Pressure Adjustment | Hex adjustment screw |
| Release | One-handed triggerless Fast Release |
| Quantity | 1 clamp |
| Warranty | IRWIN Lifetime Limited Warranty |
| Best Use | Welding fit-up, metal fabrication, repair work, and general clamping |

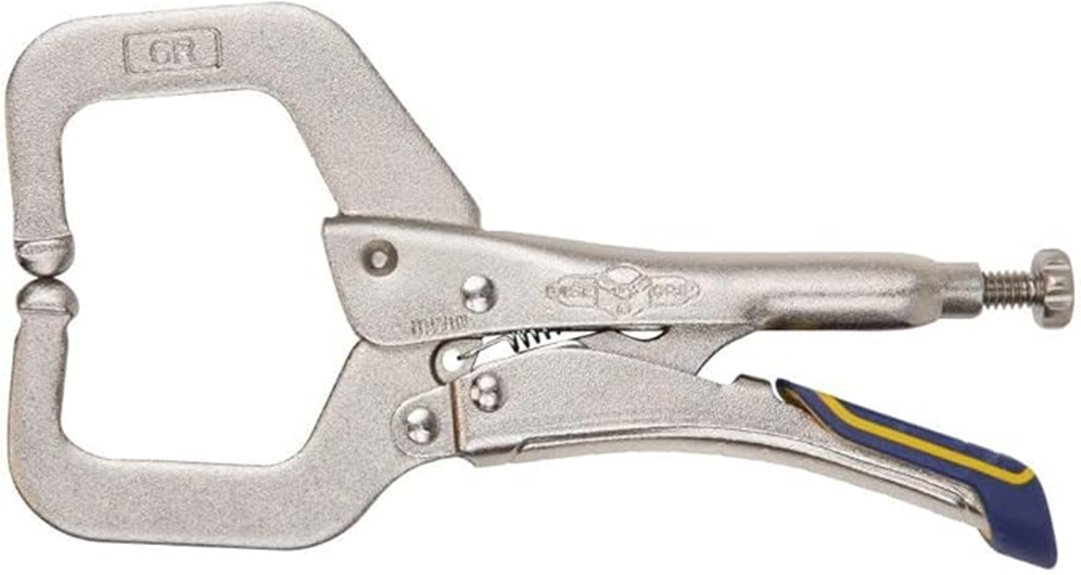

What Is the IRWIN VISE-GRIP IRHT82585?
The IRHT82585 is part of IRWIN’s VISE-GRIP Fast Release line. Instead of using the straight or curved jaws found on ordinary locking pliers, this model uses a C-shaped locking clamp that reaches around a workpiece and holds material between two fixed contact points.
That design is useful when you need both hands free for tack welding, drilling, fastening, positioning, or assembly. You set the opening and pressure with the adjustment screw, squeeze the handles to lock the workpiece, then use the triggerless release when you need to reposition the clamp.
The 6-inch size makes it easy to keep near a welding table or in a portable tool bag. It is better suited to smaller fabrication jobs than large structural work where you need a deeper throat or wider opening.
Who Should Buy It?
Best For
- Welders who frequently tack small metal parts before completing a weld.
- Fabricators and automotive DIYers who need quick, repeatable clamping around brackets, panels, and smaller assemblies.
- Buyers who prefer a locking C-clamp that can be released quickly with one hand.
Skip If
- You regularly clamp material thicker than the tool’s approximately 2-1/4-inch maximum opening.
- You need a deeper-reaching welding clamp for large frames, tubing, or structural assemblies.
- You specifically need swivel pads to conform to angled or delicate surfaces.
Before You Buy: The “6-inch” description refers to the clamp’s nominal size. It does not mean the jaws open six inches. The maximum jaw opening is roughly 2-1/4 inches, so measure the material you plan to clamp before ordering.
Build Quality and Materials
IRWIN uses high-grade heat-treated alloy steel for the IRHT82585. That construction matters in fabrication work because a locking clamp repeatedly experiences squeezing, release cycles, workshop impacts, and exposure to metal dust and welding environments.
The rigid C-shaped frame also keeps the contact points positioned around the work rather than directly in front of it. This gives you more working space around the clamped area than you would get from some conventional plier-shaped tools.
Durability still depends on how you use the clamp. Excessive welding heat, spatter buildup, corrosion, and forcing the adjustment mechanism beyond its intended range can shorten the life of almost any locking tool.
How the Fast Release Makes Life Easier
The one-handed triggerless Fast Release is one of the IRHT82585’s strongest usability features. Traditional locking pliers often require you to reach for a separate release lever after applying considerable clamping pressure. IRWIN designed this mechanism to open more easily while keeping the familiar locking action.
This can save time when you are repeatedly fitting, checking, releasing, and repositioning a workpiece. During fabrication, that matters more than it may seem. A project involving several tabs, brackets, or pieces of sheet metal can require dozens of clamp adjustments before the final welds are made.
The release mechanism does not eliminate the need to set the pressure correctly. If you overtighten the adjustment screw before locking the handles, the clamp can still require more effort to release.
Jaw Opening and Clamping Reach
The wide-opening C-clamp design is intended to accommodate different workpiece shapes, but the IRHT82585 remains a compact tool. Its maximum opening is about 2-1/4 inches, with a throat depth of about 1-1/2 inches.
That combination works well when the clamping point is near the edge of the workpiece. Examples include attaching a tab to plate, aligning two pieces of sheet metal, holding a small bracket against tubing, or keeping a repair patch positioned during tack welding.
The short throat becomes the main limitation when your desired clamping point is several inches away from an edge. In that situation, an 11-inch locking C-clamp or a deeper-reach welding clamp will generally be more useful.
Hex Adjustment Screw and Pressure Control
A locking clamp works best when you set its opening before squeezing the handles. The IRWIN uses a hex adjustment screw to control the fit and clamping pressure.
Turn the adjustment to bring the contact points close to the workpiece, then lock the handles. If the handles require excessive force, back the adjustment off slightly. If the work moves too easily, tighten it in small increments.
Pro Tip: Set the clamp pressure on scrap material of similar thickness before working on a finished part. You can find a secure setting without marking, distorting, or repeatedly readjusting the actual workpiece.
How It Performs in Real Use
For Tack Welding and Fit-Up
This is where the IRHT82585 makes the most sense. You can position two smaller pieces of metal, lock them together, verify alignment, and make your tack weld while the clamp keeps your hands away from the joint.
The compact frame is especially useful when several clamps must fit around one assembly. Keep enough distance between the clamp and the weld zone to avoid unnecessary heat and spatter exposure.
For Sheet Metal and Automotive Repair
The relatively shallow throat works well around edges, which can be useful for sheet-metal repairs, brackets, small patches, or automotive fabrication. Because the pads are fixed rather than swiveling, you should make sure both contact points sit securely against the surfaces before applying full pressure.
Thin material can distort when over-clamped, so maximum pressure is not always the goal. Use only enough force to keep the pieces aligned.
For Small Fabrication Projects
Angle iron, tabs, small frames, and brackets often require repeated repositioning before welding. The locking mechanism and Fast Release help here because you can move from one joint to another without threading a conventional clamp screw through its entire range each time.
For General Workshop Clamping
You do not have to be welding to use this clamp. It can hold parts during drilling, fastening, light repair, adhesive setup, or assembly when the workpiece fits safely within its jaw capacity.
Its usefulness outside welding is one reason a locking C-clamp can earn a permanent place in a general workshop toolbox.
How to Use It Correctly
- Check the fit first. Make sure the workpiece is within the clamp’s opening and reach.
- Position both contact points securely. The fixed pads should sit squarely enough that the tool cannot easily slide off.
- Adjust the screw. Bring the clamp close to the desired pressure before locking the handles.
- Lock the handles. Use firm pressure, but do not force the mechanism unnecessarily.
- Check alignment. Confirm that tightening the clamp did not pull your parts out of position.
- Release carefully. Keep your fingers clear of pinch points when opening the clamp.
Safety and Workshop Use
A locking C-clamp is a holding tool, not personal protective equipment. Wear appropriate eye protection, welding gloves, protective clothing, and other PPE required for your project.
Metal near a weld can stay hot after the arc stops. Avoid grabbing the clamp immediately if it has been exposed to welding heat. Allow it to cool before making adjustments when necessary.
You should also avoid treating the IRHT82585 as a lifting device or using it to support a suspended load. Its purpose is clamping workpieces during fabrication and assembly, and its clamping force is not presented as a rated lifting capacity.
Cleaning and Maintenance
Welding tools tend to collect dust, metal particles, oil, and spatter. Wipe the IRWIN clamp after use, especially around the adjustment screw, pivots, and release mechanism.
If the screw or pivot becomes stiff, a small amount of suitable lubricant can help restore smooth movement. Avoid coating the actual clamping surfaces with excess lubricant because a slippery contact area can reduce grip.
Store the clamp in a dry toolbox or cabinet when possible. Keeping moisture away from steel tools helps limit corrosion and keeps the adjustment mechanism easier to operate over time.
Pros and Cons
Pros
- High-grade heat-treated alloy-steel construction.
- One-handed triggerless release simplifies frequent repositioning.
- Wide-opening C-clamp design works with several common workpiece shapes.
- Hex adjustment screw gives you control over fit and clamping pressure.
- Backed by IRWIN’s Lifetime Limited Warranty.
Cons
- The approximately 2-1/4-inch maximum jaw opening limits larger workpieces.
- The 1-1/2-inch throat depth cannot reach far into wide panels or frames.
- Fixed pads are less adaptable to some angled surfaces than swivel-pad clamps.
Buyer Feedback: What to Watch For
Retailer feedback on this style of IRWIN locking clamp is not completely uniform. Some users value the familiar VISE-GRIP construction and quick clamping action, while others report that a locking clamp can become harder to release when very high pressure is applied.
That makes correct adjustment important. The goal is not to tighten the screw as far as possible. Set enough pressure to hold the work securely without forcing the handles or release mechanism.
Buyer comments should also be considered alongside the physical limits of the tool. A compact 6-inch clamp can perform well within its intended range while still being the wrong choice for a job that needs greater reach.
How It Compares to Alternatives
The Milwaukee 48-22-3532 6-inch TORQUE LOCK C-Clamp is a close alternative. It uses Milwaukee’s TORQUE LOCK adjustment system and forged alloy-steel construction. Milwaukee also sells the 48-22-3632 6-inch C-Clamp with Grip, which adds overmolded handle grips.
The IRWIN IRHT82585 makes the most sense if you prefer IRWIN’s triggerless Fast Release design and hex adjustment screw. The Milwaukee options are worth comparing if handle grip design or the TORQUE LOCK adjustment system matters more to you.
Is It Worth the Price?
The IRWIN IRHT82585 is best viewed as a durable specialty hand tool rather than a replacement for every clamp in your workshop. Its value comes from quick locking, compact size, reusable pressure settings, and fast release during repetitive fabrication tasks.
It is worth considering if you regularly weld, repair, or assemble smaller metal parts and want a clamp that can be repositioned quickly. You will get less value from it if most of your projects involve thick material, deep frames, or clamping points several inches from an edge.
For the right workpiece size, the combination of heat-treated alloy steel, simple mechanical operation, and IRWIN’s limited lifetime warranty gives it a strong value proposition for regular workshop use.
Frequently Asked Questions
Is the IRWIN IRHT82585 a 6-inch or 10-inch tool?
The IRHT82585 is the IRWIN VISE-GRIP Fast Release 6R Locking C-Clamp and is sold as a 6-inch clamp. Some package measurements may be longer than six inches, but that does not change the nominal clamp size.
How far do the jaws open?
The maximum jaw opening is approximately 2-1/4 inches. Its throat depth is about 1-1/2 inches, so it works best when the clamping point is relatively close to an edge.
Can these pliers be used for non-welding tasks?
Yes. The locking C-clamp can also hold workpieces during drilling, assembly, fastening, repair work, and other workshop tasks. The work still needs to fit within the clamp’s opening and reach.
Does the IRHT82585 have a one-handed release?
Yes. IRWIN describes this model as using a one-handed triggerless Fast Release mechanism. Correct pressure adjustment helps keep locking and releasing comfortable during repeated use.
Does it have swivel clamping pads?
No. The IRHT82585 uses fixed pads. Check that the contact points sit securely on the work before locking the clamp, especially when working with angled or uneven surfaces.
What warranty does IRWIN provide?
IRWIN lists the IRHT82585 with a Lifetime Limited Warranty. Warranty coverage is subject to the manufacturer’s terms, so check IRWIN’s current warranty information if you need to make a claim.
How should I clean and maintain the clamp?
Wipe off metal dust, dirt, moisture, and welding residue after use. Keep the adjustment screw and pivot moving freely, use lubricant sparingly when needed, and store the clamp in a dry location.
The Bottom Line
The IRWIN VISE-GRIP IRHT82585 Fast Release 6R Locking C-Clamp is a strong choice for welders, fabricators, mechanics, and DIY users who frequently clamp smaller workpieces near an edge. Its best features are the heat-treated alloy-steel construction, wide C-clamp design, adjustable locking pressure, and quick triggerless release.
You should skip it if you need a wide opening, deep throat, or swivel pads for larger and more complicated assemblies. For compact welding fit-up and general workshop clamping within its size limits, it earns our 8/10 editorial rating.
