Flux-core wire can make portable steel repairs easier, but the wrong diameter, polarity, or spool size can leave you with feeding problems and weak results. The Lincoln Electric Innershield NR-211-MP, model ED030584, is a 0.035-inch self-shielded wire sold here as three 1 lb spools for compatible wire-feed welders. Its main strengths are all-position capability, no required shielding gas, and a fast-freezing slag system that helps with light fabrication and less-than-perfect fit-up. Its main limits are the small spool size and its focus on mild steel rather than stainless steel, aluminum, or every welding process.
Quick Verdict
Rating: 8.7/10, recommended with compatibility caveats
Best For: Home-shop welders who need portable, gasless welding on light-gauge mild steel and thin plate
Bottom Line: NR-211-MP offers a practical mix of easy slag removal, all-position use, and outdoor flexibility. Buy it only after confirming that your welder supports 0.035-inch self-shielded flux-core wire, DC electrode-negative polarity, and 1 lb spools.
| Specification | Detail |
|---|---|
| Brand | Lincoln Electric |
| Product line | Innershield NR-211-MP |
| Model / part number | ED030584 |
| Product type | Self-shielded flux-cored welding wire, FCAW-S |
| AWS classification | E71T-11 |
| Wire diameter | 0.035 in (0.9 mm) |
| Base material | Mild steel / carbon steel applications |
| Polarity | DC electrode negative, DCEN or DC- |
| Welding positions | All-position |
| Shielding gas | Not required |
| Package | Three 1 lb spools, 3 lb total nominal wire weight |
| Manufacturer thickness guidance | Light-gauge steel or thin plate, up to 5/16 in for this diameter |
| Typical contact-tip-to-work distance | 1/2 to 5/8 in |
| Common uses | Sheet metal, thin plate, repairs, and general mild-steel fabrication |
What Is the Lincoln Electric NR-211-MP?
Lincoln Electric NR-211-MP is a tubular electrode with flux inside the wire. The flux creates shielding during welding, so you do not need a separate gas cylinder. Although retailers often place it in the MIG-wire category, the actual process is self-shielded flux-cored arc welding, or FCAW-S.

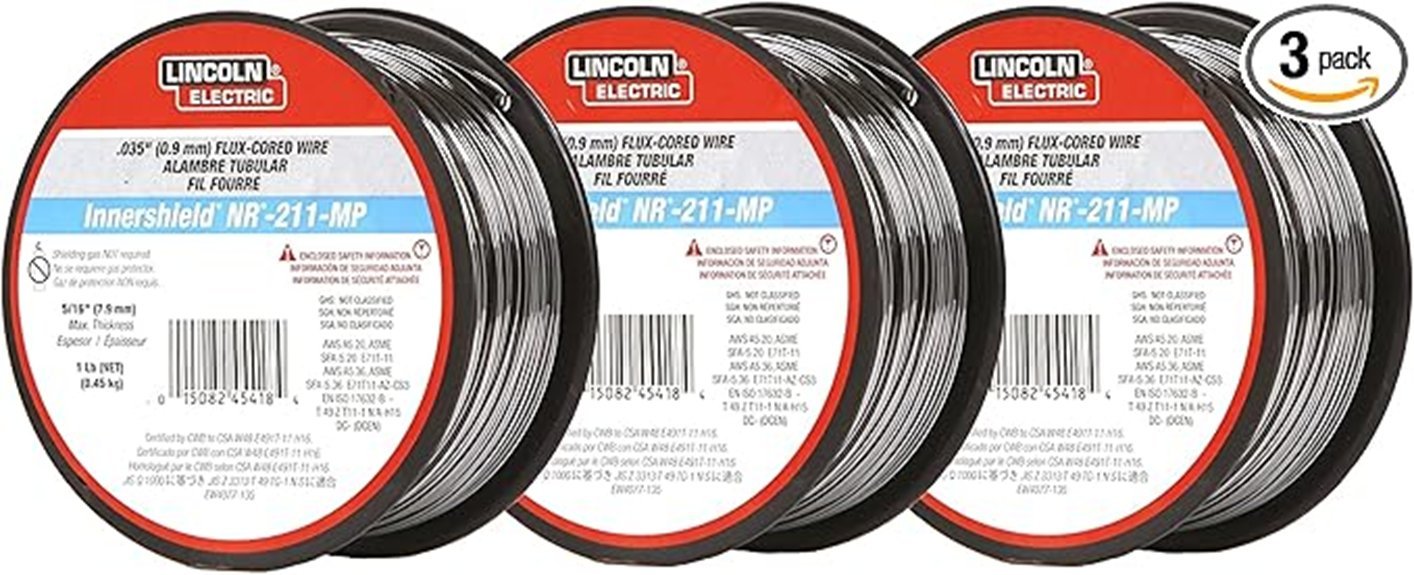

The ED030584 version uses 0.035-inch wire on a 1 lb spool. This Amazon listing contains three spools, which is useful when you want several compact replacements instead of one large shop spool. Lincoln Electric lists the wire for all-position welding on light-gauge steel and thin plate, with fast-freezing characteristics, low spatter, and removable slag.
Key Takeaways
- You receive three 1 lb spools of 0.035-inch NR-211-MP wire, not one 3.51 lb spool.
- The wire is self-shielded, so it does not require an external shielding-gas cylinder.
- It is classified as E71T-11 and runs on DC electrode-negative polarity.
- Its all-position capability and fast-freezing slag make it useful for repairs, thin plate, and imperfect fit-up.
- You still need a compatible feeder, 0.035-inch contact tip, correct settings, ventilation, and full welding PPE.
Before You Buy: Check your welder manual before ordering. Your machine must support 0.035-inch self-shielded flux-core wire, DCEN polarity, and the physical size of a 1 lb spool. This wire is not a substitute for stainless, aluminum, or gas-shielded solid wire.
Who Should Buy It?
Best For
- DIY welders making mild-steel repairs with a compatible 120 V or 240 V wire-feed machine
- Users who want to weld without carrying a shielding-gas bottle
- Small shops that prefer compact 1 lb spools for occasional projects or backup stock
Skip If
- Your welder cannot run 0.035-inch FCAW-S wire on DCEN polarity
- You need wire for aluminum, stainless steel, or thick production work
- You weld often enough that repeated 1 lb spool changes would slow you down
Feature-by-Feature Review
Self-Shielded Design
NR-211-MP creates its own shielding from the flux core. That removes the need for a gas bottle, regulator, and hose, which makes your setup easier to move between a garage, driveway, farm, or repair site. You still need to protect the weld area from strong wind, rain, and contamination.
Feed and Arc Performance
The 0.035-inch diameter is common on compact flux-core welders, but correct feeding depends on your machine. Use the drive roll, liner, and 0.035-inch contact tip specified by the welder manufacturer. Too much drive-roll pressure can deform tubular wire, while too little pressure can cause slipping and an uneven arc.
Lincoln Electric’s typical operating data for 0.035-inch NR-211-MP spans about 50 to 275 inches per minute and 14 to 21 volts. That is an operating window, not a universal setting. Start with the chart inside your welder or its manual, then adjust for steel thickness, joint design, position, and travel speed.
Bead Control and Slag
The fast-freezing slag supports the puddle in flat, horizontal, vertical, and overhead positions. It can also make small gaps or uneven fit-up more manageable than a slow-freezing process. The tradeoff is that you must remove slag between passes and before painting or inspecting the finished weld.
Spool Size and Package
Each spool contains 1 lb of wire, and the listing includes three spools. The compact format suits hobby machines and keeps unopened wire separated from the spool in use. For long beads or repeated fabrication, a compatible 10 lb spool of the same wire can reduce changeovers and may offer better value per pound.
How It Performs in Real Use
For Light Fabrication and Repairs
The wire is a sensible match for brackets, gates, mower-deck patches, utility repairs, and similar mild-steel jobs that fall within your welder’s output range. Clean metal and tight fit-up still produce the best results, even though the fast-freezing system is more forgiving of small gaps.
For Thin Sheet and Heat Control
On thinner material, the 0.035-inch wire can deposit heat quickly. Use the machine’s recommended low setting, short welds, and adequate cooling time to reduce burn-through and distortion. For very thin sheet or a low-output machine, the 0.030-inch version may give you finer control.
For Outdoor Welding
Self-shielded wire is less dependent on a calm gas envelope than solid MIG wire, and the product description supports use in moderate wind. It is not weatherproof welding wire. Strong wind can disturb the arc and spread sparks, while rain or wet work areas create serious electrical and safety hazards.
For Larger or Frequent Projects
The three-pack gives you 3 lb of wire in total, but each spool holds only 1 lb. That is convenient for storage and occasional work, yet frequent spool changes can interrupt larger jobs. High-volume users should compare the compatible 10 lb ED016354 version before buying.
Setup Tips Before First Use
- Confirm compatibility: Check that your welder accepts 0.035-inch self-shielded flux-core wire and 1 lb spools.
- Set the correct polarity: NR-211-MP uses DCEN, also shown as DC- or electrode negative. Follow your machine’s wiring instructions.
- Match the consumables: Install the correct contact tip and feeder components for 0.035-inch tubular wire.
- Prepare the joint: Remove oil, paint, heavy rust, moisture, and other contamination from the weld area.
- Use the recommended stickout: Lincoln Electric lists a typical 1/2 to 5/8-inch contact-tip-to-work distance for the 0.035-inch wire.
- Run a test bead: Test on scrap of the same thickness and position before welding the finished part.
- Remove slag: Chip and brush each pass before adding another pass or applying a finish.
Pro Tip: Write the successful voltage and wire-feed settings on a scrap sample along with the steel thickness and position. That gives you a repeatable starting point the next time you use the same machine and joint.
Compatibility and Safety
This wire is designed for mild-steel FCAW-S work. It does not turn an incompatible MIG machine into a flux-core machine, and it should not be used with the wrong polarity. Follow the Lincoln Electric product data, your welder manual, and the safety data sheet for the wire.
Wear an approved welding helmet with the correct shade, safety glasses, dry welding gloves, flame-resistant clothing, and suitable footwear. Use local exhaust or strong ventilation because welding fumes can harm you. Galvanized or coated steel needs added caution because heated coatings can create hazardous fumes. Never weld in rain, on wet surfaces, near flammable materials, or on sealed or pressurized containers.
Pros and Cons
Pros
- No external shielding gas required
- All-position E71T-11 classification
- Fast-freezing slag helps with vertical work and imperfect fit-up
- Low-spatter design and good slag removal when settings are correct
- Three compact spools suit occasional work and backup storage
Cons
- Requires a compatible 0.035-inch FCAW-S setup and DCEN polarity
- One-pound spools need more frequent changes on larger jobs
- Creates slag that must be removed between passes and before finishing
Is It Worth the Price?
This three-pack offers strong value for the price when you use a compact welder, finish projects in short sessions, or want sealed backup spools. You get a known Lincoln Electric model with published operating data instead of an unidentified generic wire.
The value is less compelling for continuous fabrication. A compatible 10 lb spool can reduce downtime and packaging cost if your welder accepts it and you can keep the wire dry. The three-pack makes the most sense for occasional users who value compact storage and easy replacement.
How It Compares to Alternatives
The 0.030-inch NR-211-MP version, model ED031448, may be easier to tune on thinner sheet or lower-output machines. The 0.035-inch 10 lb version, model ED016354, is better for frequent work when your feeder accepts a larger spool. Gas-shielded ER70S-6 solid wire can provide a cleaner, slag-free process for indoor mild-steel work, but it requires shielding gas and a different machine setup.
This three-pack is the better fit when you already own a compatible compact flux-core welder and want portable, self-shielded wire without committing to a large spool.
Warranty and Return Information
The Amazon listing showed a 30-day refund or replacement window at the time of this July 2026 review. Return eligibility can depend on the seller, item condition, and Amazon’s current policy, so confirm the terms shown at checkout.
The listing links to product warranty information but does not state full warranty terms on the product page. Review the current Lincoln Electric coverage and keep your receipt and packaging if warranty support matters to your purchase.
Frequently Asked Questions
Is this welding wire suitable for beginners?
Yes, if your welder is set up for 0.035-inch self-shielded flux-core wire. A beginner still needs correct polarity, machine settings, joint preparation, ventilation, and full PPE. Practice on scrap before working on a critical part.
Can this wire be used with different MIG welders?
It works only with wire-feed welders that support 0.035-inch FCAW-S wire, DCEN polarity, and a 1 lb spool. Check your manual for wire diameter, polarity connections, drive-roll type, contact tip, and spool capacity.
Does NR-211-MP need shielding gas?
No. NR-211-MP is self-shielded flux-cored wire, so the flux supplies the shielding needed for the process. You still need ventilation because self-shielded welding produces fumes and slag.
What wire-feed speed should you use?
There is no single correct setting. Lincoln Electric’s typical 0.035-inch operating data spans about 50 to 275 inches per minute with 14 to 21 volts, depending on output. Use your welder’s chart as the starting point and fine-tune on matching scrap.
What steel thickness can 0.035-inch NR-211-MP weld?
Lincoln Electric lists light-gauge steel and thin plate, with a maximum of 5/16 inch for this wire diameter. Your actual capacity also depends on welder amperage, duty cycle, joint design, position, and whether multiple passes are permitted.
How should you store the welding wire?
Keep unopened spools sealed in a dry indoor location. Store an opened spool in an airtight container with desiccant when practical, and do not use wire that is rusty, wet, contaminated, or feeding poorly.
Does this wire work for outdoor welding?
It is more practical outdoors than gas-shielded solid wire, and the product description supports quality welds in moderate wind. Do not weld in rain, on wet ground, or where wind can spread sparks and fumes. Shield the work area and stop if conditions make the arc unstable.
Is this wire suitable for structural or safety-critical repairs?
Do not assume a wire classification alone makes a weld suitable for a critical repair. Structural, vehicle-frame, pressure, lifting, and life-safety work may require an approved procedure, qualified welder, inspection, and code-compliant filler metal. Consult a qualified welding professional for those jobs.
The Bottom Line
Lincoln Electric NR-211-MP ED030584 is a strong choice for home-shop and field users who need 0.035-inch self-shielded wire for light-gauge mild steel and thin plate. Its all-position performance, portable gasless setup, and forgiving slag system are useful, but the 1 lb spools and strict compatibility requirements make it less suitable for high-volume or non-mild-steel work.
