Buying a multi-process welder is mostly about avoiding two mistakes: paying for modes you will not use, or choosing a machine that does not match your power source and project needs. The PANERGYRIC MIG Welder 200A is a 4-in-1 machine with Gas MIG, Gasless Flux Core MIG, Stick/MMA, and Lift TIG, plus 110V/220V auto-detection and a rated 200A output. Its strongest appeal is the mix of four processes, synergic control, IGBT inverter technology, and a 60% duty cycle at 200A in one portable machine. The main limitation is that the TIG torch is sold separately, and the official 200A product page does not claim aluminum-welding capability.
Quick Verdict
Rating: Recommended with caveats
Best For: Garage and workshop buyers who want Gas MIG, gasless flux-core MIG, Stick/MMA, and Lift TIG capability in one dual-voltage machine.
Bottom Line: The 4-process design, 60% duty cycle at 200A, synergic/manual control, digital LCD, and 110V/220V auto-detection give you useful flexibility. The tradeoff is that the TIG torch is sold separately, and aluminum support is not stated for this 200A model.
Key Specifications
| Specification | Detail |
|---|---|
| Brand | PANERGYRIC |
| Model | MIG/MMA-200PRO |
| Product type | 4-in-1 IGBT inverter multi-process welder |
| Welding processes | Gas MIG, Flux Core MIG, Stick/MMA, Lift TIG |
| Maximum stated output | 200A |
| Stated welding thickness | Up to 15mm |
| Input voltage | AC 110V / 220V, 50/60Hz with auto-detection |
| Duty cycle | 60% @ 200A |
| Control system | Synergic and manual control |
| Display | Digital LCD |
| Dimensions | 16.5 × 8.6 × 12.2 inches |
| Safety protections | Over-current, overload, and over-temperature protection |
| Materials listed | Mild steel, stainless steel, cast iron, and sheet metal |
| Included accessories | MIG torch, earth clamp, electrode holder, two contact tips, gas hose, 110V-to-220V power adapter, cleaning brush, and user manual |
| Best use | General garage, workshop, fabrication, and repair work where multiple welding processes are useful |
Key Takeaways
- You get four stated processes: Gas MIG, Flux Core MIG, Stick/MMA, and Lift TIG.
- The machine supports AC 110V/220V, 50/60Hz with automatic voltage detection, which helps when you work in locations with different compatible power supplies.
- The rated 200A output, 60% duty cycle at 200A, and up-to-15mm material-thickness claim give the machine useful headroom for garage and fabrication work.
- Synergic control recommends voltage and wire-feed speed, while the digital LCD shows amps, volts, and wire speed for monitoring and manual adjustment.
- The included kit covers MIG and Stick basics, plus a brush and manual, but the manufacturer states that the TIG torch is sold separately.
What Is the PANERGYRIC MIG Welder 200A?

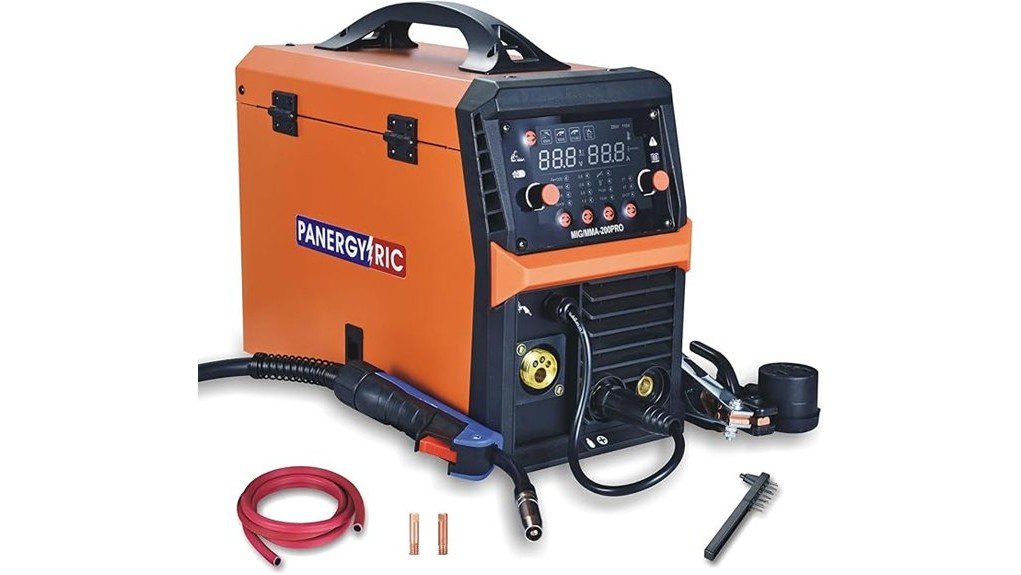

The PANERGYRIC MIG Welder 200A, model MIG/MMA-200PRO, is a portable IGBT inverter welder designed to combine four processes in one unit. You can use its stated Gas MIG and Flux Core MIG modes for wire welding, Stick/MMA for electrode welding, and Lift TIG when the required TIG setup is available.
The main selling point is flexibility. Instead of buying separate machines for common garage and fabrication jobs, you can move between processes while using one control panel. It uses AC 110V/220V auto-detection, a digital LCD, and synergic control that recommends voltage and wire-feed speed while still allowing manual fine-tuning.
The package includes a MIG torch, earth clamp, electrode holder, two contact tips, gas hose, 110V-to-220V power adapter, cleaning brush, and user manual. PANERGYRIC states that the TIG torch is sold separately, so Lift TIG requires an additional torch setup.
Who Should Buy It?
Best For
- You want both gas-shielded MIG and flux-core MIG in one machine.
- You also want Stick/MMA and Lift TIG capability for a wider range of garage or workshop jobs.
- You value 110V/220V flexibility and a synergic control system that can simplify initial MIG setting adjustments.
Skip If
- You need verified aluminum-welding support or a documented spool-gun setup.
- You need a confirmed warranty term before purchase and do not want to verify seller or manufacturer coverage.
- You expect a complete Lift TIG kit in the box, because PANERGYRIC states the TIG torch is sold separately.
Top Reasons to Consider the MIG Welder 200A
The main reasons to consider this welder are its four processes, 110V/220V auto-detection, synergic/manual control, and digital LCD. Gas MIG, gasless flux-core MIG, Stick/MMA, and Lift TIG let you change processes without changing machines.
The rated 200A output, 60% duty cycle at 200A, and up-to-15mm material-thickness claim give it useful headroom for garage and fabrication work. The 15mm figure still depends on proper technique, process selection, and joint preparation.
The Versatility of the 4-in-1 Welding Processes
Gas MIG
Gas MIG gives you wire-fed welding with external shielding gas. The included MIG torch and gas hose support this setup, while the manual should guide your wire, gas, polarity, and settings.
Flux Core MIG
Gasless Flux Core MIG gives you a wire-fed option without external shielding gas. Use the wire type and polarity specified in the manual.
Stick/MMA
Stick/MMA expands the machine beyond wire feed. The included electrode holder and earth clamp let you use compatible stick electrodes for repair and fabrication work.
Lift TIG
Lift TIG adds a fourth process for more controlled torch work. PANERGYRIC states that the TIG torch is sold separately, so budget for the required TIG setup.
Before You Buy: The TIG torch is sold separately, and the official 200A product page does not advertise aluminum welding. If Lift TIG or aluminum is central to your work, confirm the required torch, consumables, and compatibility before ordering.
Synergic Control and the Digital LCD
Synergic Control Technology is intended to simplify setup by coordinating voltage and wire feed speed instead of making you tune both values independently from the start. That can shorten the learning curve when you are new to MIG settings and can also speed up setup for repeat work.
The digital LCD shows key parameters such as amps, volts, and wire speed, making manual corrections easier when the synergic starting point is not ideal. Synergic control should still be treated as a starting aid, not a replacement for test welds, material preparation, or correct consumables.
Pro Tip: Use the synergic setting to establish a starting point, then make a short test weld on scrap of the same material and thickness before working on the final part. Small manual changes can help you match the arc to the actual joint.
What the 200A Output Means in Practice
The machine is rated at 200A with a 60% duty cycle at 200A, and PANERGYRIC states a maximum material thickness of up to 15mm with proper technique. That is useful headroom for a compact workshop machine, but joint design, material, filler, and pass count still affect real-world capacity.
The documented material list includes mild steel, stainless steel, cast iron, and sheet metal. You should match the welding process and filler material to the job rather than assuming one process or consumable works across every listed metal. Joint design, surface preparation, wire or electrode choice, and single-pass versus multi-pass technique also affect the practical thickness you can weld.
Essential Accessories Included With the MIG Welder 200A
The included kit covers the basic connections for MIG and Stick work: a MIG torch, earth clamp, electrode holder, two contact tips, and a gas hose. PANERGYRIC also includes a 110V-to-220V power adapter, cleaning brush, and user manual.
The two contact tips give you spare consumable hardware for the MIG torch, while the gas hose supports Gas MIG operation. The electrode holder lets you use the Stick/MMA process without buying that basic connection separately.
Do not treat the 110V-to-220V adapter as permission to use any outlet or circuit. The welder still needs a compatible supply that meets the voltage, plug, circuit, and current requirements shown on the machine label or manual.
How It Performs in Real Use
Garage Fabrication
For projects such as square pipe fabrication or metal cages, the combination of Gas MIG and Flux Core MIG gives you two wire-welding approaches from the same machine. The 200A rating and 60% duty cycle provide useful output headroom, while the digital LCD and synergic control can make repeat setup faster.
Sheet-Metal Work
Sheet metal is included in the stated material range, but thin material demands more control than a maximum-amperage figure suggests. Start with a suitable low setting, use the correct wire and process, and test on scrap so you can reduce the chance of burn-through or distortion.
Repair Work With Stick/MMA
The electrode holder and earth clamp let you switch to Stick/MMA when that process better suits the repair. This gives the machine practical value beyond MIG-only fabrication, especially if you already keep compatible electrodes for your common metals.
Working Around Different Power Sources
The stated 110V/220V capability is useful when your workspace or job location offers different compatible supplies. You should still verify the circuit requirement before connecting the machine, because an adapter changes the connection format but does not remove the need for a correctly rated electrical source.
Setup Tips Before First Use
- Confirm the power source. Check the machine label or manual before choosing 110V or 220V operation, and make sure the circuit is suitable for the welder.
- Inspect the connections. Check the MIG torch, earth clamp, electrode holder, gas hose, and consumables for secure installation and visible damage.
- Select the correct process. Match Gas MIG, Flux Core MIG, Stick/MMA, or Lift TIG to your material, filler, and project requirements.
- Follow the manual for polarity and consumables. Do not assume the same setup applies to every wire, electrode, or process.
- Use a scrap test. Let the synergic control establish a starting point, then adjust manually if the arc or bead needs correction.
- Maintain the wire path and nozzle. Regular nozzle cleaning and wire-feed inspection can help keep MIG feeding consistent.
Compatibility and Safety
Proper grounding and protective gear are core safety requirements. You should also follow the welder manual, the instructions for your shielding gas and consumables, and standard welding precautions for ventilation, fire prevention, eye protection, gloves, and protective clothing.
Dual-voltage capability deserves extra care. Use only a properly rated power source and never rely on a plug or wire adapter to bypass electrical requirements. For Gas MIG, secure the gas cylinder and connections correctly and inspect the hose before use.
PANERGYRIC lists over-current, overload, and over-temperature protection for this model. Those systems help protect the machine during abnormal operating conditions, but they do not replace proper grounding, PPE, ventilation, safe gas-cylinder handling, or a correctly rated electrical circuit.
Pros and Cons
Pros
- Four stated processes: Gas MIG, Flux Core MIG, Stick/MMA, and Lift TIG.
- 110V/220V dual-voltage operation adds power-source flexibility.
- 200A maximum output with a stated welding thickness of up to 15mm.
- Synergic control coordinates voltage and wire feed speed while allowing manual adjustment.
- Useful accessory set includes a MIG torch, earth clamp, electrode holder, two contact tips, gas hose, cleaning brush, and user manual.
Cons
- The 60% duty cycle at 200A still means high-output welding requires rest time during each duty-cycle interval.
- The TIG torch is sold separately, so Lift TIG requires additional equipment.
- The official 200A page does not advertise aluminum welding, and a specific warranty term is not stated on the exact product page.
Is It Worth the Price?
PANERGYRIC positions this as a feature-rich DIY and workshop welder rather than a stripped-down single-process machine. Its value comes from combining four processes, dual-voltage auto-detection, a 60% duty cycle at 200A, synergic/manual control, and a starter accessory kit in one unit.
This welder is worth considering if you want one machine to cover several common garage and fabrication jobs instead of owning separate MIG and Stick units. It is less compelling if you only need one simple process, want aluminum capability, or expect a complete TIG package in the box.
How It Compares to Alternatives
Compared with a basic single-voltage flux-core welder, the MIG Welder 200A offers a broader stated process set and 110V/220V flexibility. A simpler flux-core-only machine may still make more sense if you only do occasional steel repairs and do not need Gas MIG, Stick/MMA, or Lift TIG.
Within PANERGYRIC’s range, the 160A 3-in-1 beginner welder is a simpler choice if you mainly need gasless flux-core, Stick, and Lift TIG. The 300A DiPulse 5-in-1 model is the stronger alternative if aluminum welding and pulse MIG matter, because PANERGYRIC specifically markets that model for aluminum. The 200A 4-in-1 sits between them as the better fit when you want Gas MIG plus gasless flux core without stepping up to the 300A aluminum-focused model.
Frequently Asked Questions
Can the MIG Welder 200A be used for aluminum welding?
The official 200A page does not advertise aluminum welding. If aluminum is required, compare a model that explicitly supports it, such as PANERGYRIC’s 300A DiPulse 5-in-1.
What is the warranty period for the MIG Welder 200A?
The exact product page does not state a warranty term. Check the current Amazon listing and manufacturer or seller policy before purchase.
How portable is the MIG Welder 200A?
The welder is described as compact and portable, and a major retailer lists 16.5 × 8.6 × 12.2-inch dimensions. Weight figures conflict across retailer pages, so verify current weight if portability matters.
Is there a recommended maintenance routine for the welder?
Keep the MIG nozzle clean, inspect the wire-feed path, and check cables and connections for damage or looseness. Follow the maintenance schedule in the machine manual for any internal cleaning or service work.
What safety features are included with the MIG Welder 200A?
PANERGYRIC lists over-current, overload, and over-temperature protection. You still need proper grounding, PPE, ventilation, and a correctly rated power circuit because electronic protection does not replace safe welding practice.
Which welding processes does the MIG Welder 200A support?
It is listed as a 4-in-1 machine with Gas MIG, Flux Core MIG, Stick/MMA, and Lift TIG. That process range is the main reason to choose it over a basic MIG-only or flux-core-only welder.
What comes with the MIG Welder 200A?
The listed kit includes a MIG torch, earth clamp, electrode holder, two contact tips, gas hose, 110V-to-220V power adapter, cleaning brush, and user manual. The TIG torch is sold separately.
How thick can the MIG Welder 200A weld?
The stated maximum welding thickness is up to 15mm. Real capacity depends on the material, process, filler, joint preparation, power input, and whether the job requires multiple passes, so treat 15mm as a maximum stated figure rather than a universal one-pass result.
The Bottom Line
The PANERGYRIC MIG Welder 200A is a strong fit if you want Gas MIG, gasless flux-core MIG, Stick/MMA, and Lift TIG in one 110V/220V IGBT machine with synergic/manual control and a 60% duty cycle at 200A. You should skip it if aluminum welding is a priority or if you expect a TIG torch in the box. Overall, it earns a Recommended with caveats verdict because the core feature set is well documented, but Lift TIG needs an extra torch and the exact product page does not state a warranty term.
