Choosing a replacement heating tip is mostly about compatibility, heat coverage, and using the right mixer for your torch. The SÜA Acetylene Heating Tip J-63-1 is a size #1 multi-flame heating nozzle designed as a compatible option for Harris-style oxy-fuel equipment. Its main appeal is broad heating for jobs such as metal bending and heat treating, but you must match the tip and mixer to your torch handle before ordering. This review explains where the J-63-1 makes sense, what its limitations are, and what you should verify before connecting it to your setup.
Quick Verdict
Rating: Recommended with caveats
Best For: Buyers who need a size #1 multi-flame heating tip and have confirmed the correct Harris-style mixer for their torch handle.
Bottom Line: The J-63-1 gives you a multi-flame head for broad, controlled heating and is offered as a lower-cost Harris-compatible option. The tradeoff is that compatibility depends on the mixer and handle combination, so you should not order by the J-63-1 name alone.
Key Specifications
| Specification | Detail |
|---|---|
| Brand | SÜA |
| Model / Size | J-63-1, size #1 |
| Product Type | Heating tip / nozzle / rosebud-style multi-flame head |
| Material | Copper tip; SÜA tip-and-mixer configurations are described as copper and brass |
| Fuel-Gas Applications | Seller lists oxygen/acetylene and oxygen/hydrogen configurations |
| Mixer Options in J-63 Range | E-43, E2-43, D-85, and H-16-2E options are offered depending on tip size and torch setup |
| Available J-63 Sizes | #1, #2, #3, and #4; sizes #3 and #4 are listed with E2-43 mixer configurations |
| Typical Uses | Heat treating, metal bending, thermal expansion, and general-purpose heating |
| Important Compatibility Note | Select the mixer that matches your specific torch handle before ordering |
Key Takeaways
- The SÜA J-63-1 is a size #1 multi-flame heating tip intended for broad oxy-fuel heating rather than cutting or conventional welding-tip work.
- Its multi-flame head is useful when you need to spread heat across a larger metal area for bending, heat treating, or thermal expansion.
- The J-63 line is sold with several Harris-style mixer options, including E-43, E2-43, D-85, and H-16-2E configurations.
- Compatibility depends on the tip, mixer, and torch-handle combination. The J-63-1 name alone does not guarantee that it will fit your torch.
- SÜA recommends flashback arrestors for additional protection when using this type of oxy-fuel heating equipment.

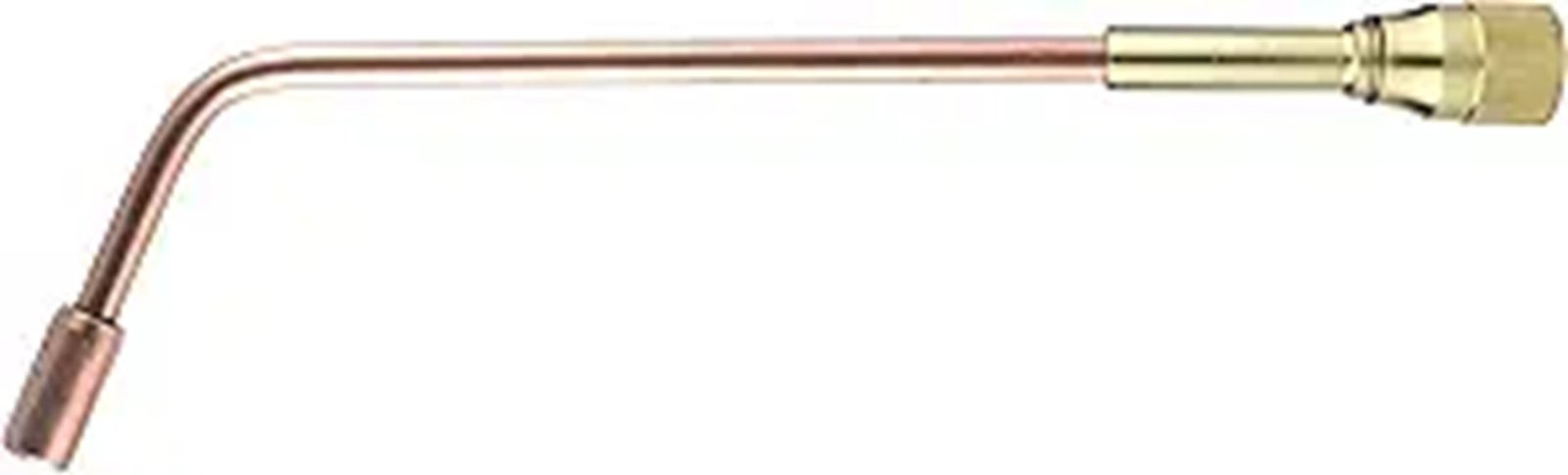

What Is the SÜA Acetylene Heating Tip J-63-1?
The SÜA Acetylene Heating Tip J-63-1 is a size #1 heating nozzle built around a multi-flame head. Instead of concentrating heat into one small flame, the head distributes several flames around a wider area. That design suits heating jobs where even coverage matters more than a narrow cutting flame.
SÜA markets the J-63 range as compatible with selected Harris-style torch systems when you use the appropriate mixer. Depending on the configuration, the seller lists E-43, E2-43, D-85, and H-16-2E mixer options. This makes mixer selection one of the most important parts of buying the tip.
The tip itself is described as copper, while complete SÜA tip-and-mixer configurations are described as using copper and brass. Those metals are common choices for oxy-fuel equipment because they handle heat while allowing the nozzle and mixer to remain reasonably compact.
Who Should Buy It?
Best For
- Fabricators who need broad heat for bending or thermal expansion.
- Owners of compatible Harris-style torch systems who have identified the correct mixer.
- Buyers who want a third-party J-63-style heating option instead of a genuine Harris tip.
Skip If
- You have not confirmed which mixer fits your torch handle.
- You specifically need genuine Harris-manufactured equipment.
- You need a cutting tip or a concentrated welding flame instead of broad heating.
Before You Buy: SÜA describes this as Harris-compatible equipment, not equipment manufactured or endorsed by Harris. Confirm your torch-handle model, required mixer, and selected package before ordering.
Top Features and Benefits of the J-63-1 Heating Tip
Multi-Flame Heating Head
The defining feature of the J-63-1 is its multi-flame head. Multiple flame ports spread heat over more surface area than a narrow single-flame tip, which is useful when you want to bring a larger section of steel up to working temperature without concentrating all the heat in one small point.
That makes the tip particularly relevant for bending, general heating, and thermal-expansion work. You still need proper flame adjustment and technique, but the head design gives you broader coverage from the start.
Build and Materials
SÜA describes its J-63 heating equipment as heavy-duty, with high-quality copper and brass used across tip-and-mixer configurations. Tip-only J-63-1 listings identify the nozzle itself as copper. For you, the practical benefit is a metal heating assembly designed specifically for high-temperature oxy-fuel service rather than a general-purpose attachment.
Harris-Style Compatibility
The strongest buying reason for this product is its compatibility with selected Harris-style torch handles and mixers. That compatibility is not universal, however. A J-63-1 tip must be paired with a suitable mixer, and the mixer must match the torch handle you already own.
This is why checking the seller’s compatibility chart is more useful than simply seeing the word “Harris” in the product description. A physically similar connection does not automatically mean your complete torch setup is correct.
Practical Applications of the J-63-1 Heating Tip
Metal Bending
For localized bending work, the multi-flame pattern can heat a broader strip of metal than a narrow welding tip. That can help you bring the intended bend area up to temperature more evenly before applying mechanical force.
Heat Treating and General Heating
The J-63-1 is also marketed for heat treating and general-purpose heating. Its broad flame pattern is useful when your goal is controlled heating over an area rather than cutting through the workpiece.
Thermal Expansion
SÜA lists caloric or thermal metal expansion among the intended uses. Heating a metal component can change its dimensions temporarily, which is sometimes useful during fitting or fabrication work. Use that technique only when it is appropriate for the component and material you are working with.
Shop and Maintenance Work
A rosebud-style heating tip can also serve as a general heating attachment in a fabrication or maintenance setup. The J-63-1 size is one option in a larger J-63 range, so buyers who routinely need more heat may want to compare the other available tip sizes rather than assuming size #1 is best for every job.
Choose the Right Mixer for Your Torch
Mixer selection is the main compatibility issue with the SÜA J-63 range. The seller offers configurations using E-43, E2-43, D-85, and H-16-2E style mixers. The correct choice depends on your torch handle and the tip size you intend to use.
The J-63 range is offered in sizes #1 through #4, with sizes #3 and #4 listed only with an E2-43 mixer option. Because the Amazon ASIN may represent a specific selectable variant, check the exact mixer and tip size shown in the listing before purchasing.
Pro Tip: Find the model number stamped on your torch handle first. Then match that handle to the required mixer and only after that choose the J-63 tip size. This avoids ordering a correct heating tip with the wrong connection hardware.
How It Performs in Real Use
For Heating a Bend Area
The multi-flame design is best suited to work where you need heat spread across a section of metal. Compared with concentrating one small flame on the bend line, several flame ports can help you cover the target area more consistently.
For Repeated Fabrication Tasks
In a shop where you regularly switch between cutting, welding, and heating attachments, the J-63-1 can add a dedicated broad-heating option. Its usefulness depends on already having a compatible handle and mixer, so it makes more sense as part of an established oxy-fuel setup than as a stand-alone purchase.
For Occasional Hobby Work
A hobbyist may appreciate the lower-cost compatible approach if only occasional heating is required. The main caution is setup knowledge. Oxy-fuel equipment demands correct gas handling, connections, mixer selection, and flame adjustment, even when the heating task itself looks simple.
For Jobs Requiring More Heat
The J-63-1 is only one size in the J-63 family. If your work routinely involves larger or heavier sections, compare the available #2, #3, and #4 options and the mixer requirements for those sizes. Do not assume a larger tip is appropriate for your existing gas supply or equipment without checking the applicable manufacturer instructions.
Setup and Usage Tips
- Confirm compatibility first: Match the torch handle, mixer, and heating tip before assembly.
- Inspect connections: Do not use damaged threads, loose connections, cracked hoses, or components showing obvious heat damage.
- Follow your equipment instructions: Use the pressure and lighting procedure specified for your torch, regulator, mixer, and fuel-gas setup rather than copying settings from another torch.
- Keep the flame moving when appropriate: Broad heating does not eliminate the risk of overheating one area of a workpiece.
- Allow the tip to cool before handling or storage: Copper heating components can remain dangerously hot after the flame is extinguished.
Stay Safe When Using Acetylene Heating Equipment
Oxy-fuel heating combines flammable gas, oxygen, open flame, and very hot metal. SÜA specifically recommends using flashback arrestors on the torch handle. You should also follow the instructions supplied with your torch, mixer, regulators, cylinders, and gas equipment.
Do not assume operating pressures published for a genuine Harris tip automatically apply to a third-party SÜA configuration. Use the specifications for the actual components in your system.
| Safety Check | Why It Matters |
|---|---|
| Use suitable flashback protection | SÜA recommends flashback arrestors for this heating equipment. |
| Inspect hoses and connections | Damaged or leaking fuel-gas equipment should not be used. |
| Wear appropriate flame-resistant PPE | Heating produces open flame, hot scale, and hot workpieces. |
| Keep combustibles away | A multi-flame head can expose a wider area to heat. |
| Follow the torch manufacturer’s procedure | Lighting, shutdown, pressure, and gas-handling requirements depend on the complete setup. |
Pros and Cons
Pros
- Multi-flame head spreads heat across a larger area.
- Designed for practical heating jobs such as bending and heat treating.
- Available with several Harris-style mixer configurations.
- J-63 family offers several tip sizes for different heating needs.
- Third-party alternative to genuine Harris J-series equipment.
Cons
- Compatibility requires careful mixer and torch-handle matching.
- It is not manufactured or endorsed by Harris.
- The exact package can vary by selected tip/mixer configuration, so you must verify what is included.
Is It Worth the Price?
The SÜA J-63-1 is positioned as a compatible alternative to genuine Harris heating equipment. That makes it worth considering when you already have a suitable Harris-style torch system and want a dedicated multi-flame heating nozzle without automatically choosing the OEM-branded option.
The value depends heavily on compatibility. A lower purchase cost does not help if you also need a different mixer or discover that the selected variant does not fit your handle. Buyers who verify the entire tip, mixer, and handle combination before ordering are most likely to get good value from it.
It is not the best fit for someone who prefers manufacturer-matched components throughout the torch system or requires a warranty specifically backed by Harris.
How It Compares to Alternatives
The most direct alternative is a genuine Harris J-63-1. Harris describes its OEM J-63-1 as an all-copper, single-piece tip-tube and tip combination intended for oxy-acetylene heating and designed for use with genuine Harris mixers. The OEM route may appeal more if manufacturer matching is your priority.
Within the SÜA range, larger J-63 tip sizes are another option if size #1 does not provide the heating capacity required for your work. Larger is not automatically better, though. Your torch, mixer, regulator, gas supply, and job requirements all need to support the selected configuration.
Frequently Asked Questions
Does the SÜA J-63-1 fit every Harris torch handle?
No. Compatibility depends on the mixer and torch-handle combination. Check your handle model against the seller’s compatibility information and select the appropriate E-43, E2-43, D-85, H-16-2E, or other supported configuration where applicable.
Is the SÜA J-63-1 made by Harris?
No. SÜA states that its compatible J-63 equipment is not manufactured by Harris and that SÜA/Mundaka is not affiliated with Harris or Lincoln Electric. It is sold as a compatible third-party alternative.
Can the J-63-1 be used with gases other than acetylene?
SÜA lists J-63 configurations for oxygen/acetylene and oxygen/hydrogen heating. Do not substitute gases based only on tip appearance. Your torch, mixer, regulators, hoses, and operating procedure must all be appropriate for the fuel gas being used.
Is the J-63-1 adjustable for different flame sizes?
The J-63-1 is a fixed size #1 heating tip, not a mechanically adjustable tip size. Flame and heat output are controlled through the properly configured torch system and operating settings. Follow the instructions for your actual torch, mixer, regulators, and fuel gas.
How should I clean the heating tip?
Let the tip cool completely before cleaning it. Keep the flame ports free from debris using cleaning tools intended for torch tips, and avoid enlarging or damaging the ports. Follow the equipment manufacturer’s maintenance instructions for more detailed procedures.
Does the SÜA J-63-1 have a one-year warranty?
A one-year warranty is documented for the genuine Harris J-63-1, but that does not establish the warranty for the SÜA-compatible product. Confirm the current warranty terms with the Amazon seller or SÜA/Mundaka before purchase.
Does the J-63-1 include a mixer?
SÜA sells J-63 products in multiple configurations, including tip-only and tip-plus-mixer offerings. Check the exact selected Amazon variant to see what is included. Do not assume a mixer is included solely because a compatible mixer is shown in the product family description.
Where can I find replacement parts or another mixer?
Start with SÜA/Mundaka or a welding-equipment supplier that can match parts to your specific torch handle and J-63 configuration. Use model numbers when ordering rather than choosing a mixer based only on appearance.
The Bottom Line
The SÜA Acetylene Heating Tip J-63-1 is worth considering when you need a size #1 multi-flame heating nozzle for bending, heat treating, or general fabrication and already have a compatible Harris-style torch setup. Its broad heating pattern and multiple mixer options are the strengths, while the main limitation is the need to verify the exact handle, mixer, and package configuration before you buy.
Choose it if compatibility and a third-party Harris-style option suit your needs. Skip it if you require genuine Harris components or cannot confirm the correct mixer for your torch.
Ready to Buy?
Check the selected tip size, mixer option, package contents, and current product details before you decide.
