Long oxygen and acetylene hoses can quickly turn a busy welding area into a cluttered workspace, especially when you need to move between a bench, vehicle, or large fabrication project. The ZeHuoGe ZHG66954 Retractable Welding Hose Reel is designed to keep that hose organized while giving you a long listed reach, a heavy steel reel, and controlled spring retraction. Its 200 PSI working-pressure rating and 51.7-pound listed weight make it more substantial than a light-duty organizer. This review explains where that heavy-duty design helps, where it may be excessive, and what you should confirm before installing it.
Quick Verdict
Editorial Rating: 8/10, Recommended with caveats
Best For: Workshops, fabrication areas, garages, and regular oxy-acetylene users who need long hose reach and organized storage.
Bottom Line: The ZeHuoGe ZHG66954 combines a heavy-gauge steel reel, a listed 1/4-inch x 100-ft twin welding hose setup, and an adjustable locking system. Its main tradeoffs are the substantial 51.7-pound listed weight and a 200 PSI rating that is lower than some 300 PSI competing reels.
| Specification | Detail |
|---|---|
| Brand | ZeHuoGe |
| Model | ZHG66954 |
| Product type | Retractable twin-line welding hose reel |
| Hose specification | Listed as 1/4-inch x 100-ft twin oxygen/acetylene rubber hoses |
| Maximum working pressure | 200 PSI |
| Temperature range | -40°F to 140°F (-40°C to 60°C) |
| Reel material | Heavy-gauge industrial steel |
| Hose material | Rubber |
| Dimensions | 21 x 9 x 20 inches |
| Listed weight | 51.7 pounds |
| Mounting | Wall-mount listing with reinforced mounting base |
| Hose control | Multiposition ratchet lock, adjustable stopper, guide arm, and four non-snag rollers |
| Best use | Oxygen/acetylene welding, cutting, heating, and fabrication setups |
Key Takeaways
- The ZeHuoGe ZHG66954 uses a heavy-gauge steel reel with reinforced edges and stiffening ribs for demanding workshop use.
- Its listing specifies 1/4-inch x 100-ft twin oxygen and acetylene rubber hoses with a maximum working pressure of 200 PSI.
- A dual brass swivel-joint inlet design is intended to reduce leakage risk at the reel connection.
- The enclosed multiposition ratchet lets you stop the hose at useful working lengths rather than extending the full run every time.
- Four non-snag rollers, an adjustable stopper, and a guide arm help control hose movement and reduce unnecessary rubbing.
- At a listed 51.7 pounds, this is a substantial reel that needs a solid mounting location.
What Is the ZeHuoGe ZHG66954?

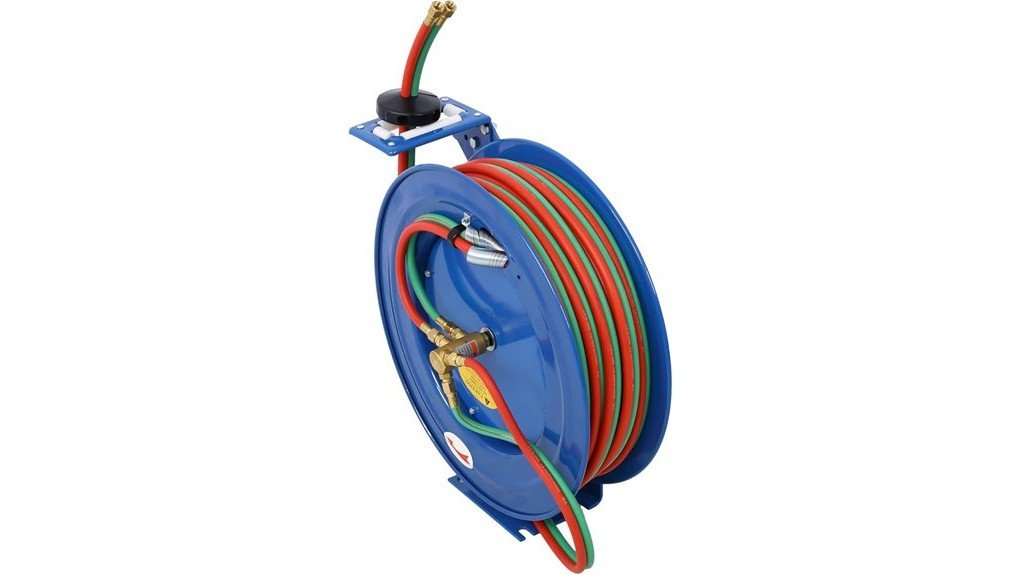

The ZeHuoGe ZHG66954 is a spring-retractable welding hose reel designed around twin oxygen and acetylene rubber hoses. The product listing markets the hose setup as 1/4 inch by 100 feet and rates it for a maximum working pressure of 200 PSI.
The reel uses heavy-gauge steel rather than a lightweight plastic housing. Reinforced flanged edges, stiffening ribs, and a reinforced mounting base are intended to keep the frame stable as you pull and retract a long hose.
It makes the most sense when your torch work regularly takes you away from the gas source and you want the unused hose stored on a fixed reel instead of lying on the floor.
Who Should Buy It?
Best For
- Fabrication shops where you frequently move around large workpieces.
- Garage or automotive work that benefits from a long oxy-acetylene hose run.
- Regular users who want a fixed reel instead of manually coiling twin hoses after each job.
Skip If
- You only weld occasionally and do not need a large fixed hose-management system.
- Your mounting surface cannot safely support a reel listed at 51.7 pounds plus pulling forces.
- You specifically require a reel with a working-pressure rating above 200 PSI.
Before You Buy: Do not assume mounting hardware, fitting thread sizes, a particular safety certification, or replacement-hose instructions are included. Those details were not clearly verified for this listing, so confirm them for your torch, regulator, mounting surface, and workplace requirements before ordering.
Why Choose a Welding Hose Reel for Your Workshop?
A fixed welding hose reel gives you a defined storage point for oxygen and acetylene hoses. Instead of leaving the entire hose run across the floor, you pull out only the length you need and retract the unused portion when the task is finished.
That organization matters most in a larger garage or fabrication area where you may work around vehicles, welding tables, carts, or other equipment. The ZeHuoGe reel combines that storage function with a long listed hose setup, so you can reach farther without relocating the reel for every job.
Key Features of the ZeHuoGe Welding Hose Reel
Heavy-Gauge Steel Construction
The reel body uses heavy-gauge industrial steel with reinforced flanged edges and stiffening ribs. Those details matter because a long spring-loaded hose puts repeated loads on the spool, frame, and mounting points each time you extend or retract it.
A corrosion-resistant powder-coated finish is also listed. That adds useful surface protection in a workshop, although it should not be treated as a guarantee that the entire assembly can be permanently exposed to rain or corrosive environments.
1/4-Inch Twin Oxygen and Acetylene Hose Setup
The listing identifies commercial-grade twin rubber hoses for oxygen and acetylene service and markets the setup as 1/4 inch by 100 feet. The paired design keeps both gas lines together as you move around the work area.
The hoses are described as resistant to water, oil, heat, weather, and abrasion, with a listed temperature range of -40°F to 140°F. That broad range is useful for garages and work areas that are not climate controlled.
200 PSI Maximum Working Pressure
The ZeHuoGe is listed for a maximum working pressure of 200 PSI. That is an important specification to check against your complete oxy-fuel setup rather than assuming every hose reel has the same rating.
Some competing welding hose reels advertise 300 PSI working-pressure ratings, so the ZeHuoGe’s main advantage is not having the highest pressure number. Its appeal is the combination of long listed hose reach, heavy construction, and hose-management features.
Dual Brass Swivel Connections
The reel uses dual brass swivel-joint inlet connections. Their purpose is to provide a secure gas path while allowing the spool to rotate during hose movement.
This design is intended to reduce leakage risk at the reel connection, but you should still inspect connections and hoses as part of normal oxy-fuel equipment checks. No fitting should be assumed leak-free simply because a brass swivel is used.
Multiposition Ratchet and Adjustable Stopper
A fully enclosed multiposition ratchet spring mechanism lets you stop the hose at different extension lengths. That means a short bench job does not require pulling out the complete hose run.
The adjustable hose stopper sets the point where the hose rests after retraction. Four non-snag rollers and the adjustable guide arm help the hose move through the reel opening with less rubbing when you pull from different working positions.
Installation and Setup
The product is listed as a wall-mount reel and uses an L-shaped reinforced mounting base. Because the reel itself is listed at 51.7 pounds, installation is one area where you should plan before drilling holes.
Choose a mounting structure that can handle both the static weight and the force created when you pull the hose. The mounting location should also give the guide arm a clear path toward your normal work area without forcing the hose around sharp edges.
Do not assume suitable anchors or mounting fasteners are supplied. The accessible product information identifies the welding hose reel as the included component but does not clearly verify a mounting-hardware kit.
Pro Tip: Before mounting the reel, stand at your most common welding and cutting positions and plan the hose path. A good location reduces sharp-angle pulls and lets the rollers guide the hose rather than forcing it across a doorway, bench edge, or traffic path.
Welding Hose Reel Durability in Real Life
Several construction details support heavy workshop use. The steel frame, reinforced spool edges, stiffening ribs, powder-coated finish, brass swivel connections, and non-snag rollers all address areas that see repeated mechanical wear.
The rubber hoses are also marketed for resistance to abrasion, heat, weather, water, and oil. Even with those material claims, regular inspection remains essential because oxy-fuel hose should not stay in service when it develops burns, cuts, leaks, severe wear, or damaged fittings.
The 51.7-pound listed weight is both a strength and a limitation. It supports the heavy-duty positioning of the product, but it also makes the reel less convenient if you want a lightweight or portable hose-storage solution.
How It Performs in Real Use
For Fabrication Tables
At a fixed fabrication table, you can extend only the hose length needed for the current job and use the ratchet to hold it. When you finish, controlled retraction helps return the extra hose to one storage point instead of leaving loops beside the table.
For Automotive Work
A long hose setup can be useful when you need to reach different sides of a vehicle without moving gas cylinders or the reel. The guide rollers are especially relevant here because your pull direction may change as you move around the vehicle.
For Larger Workshops
The listed 100-ft twin hose configuration is aimed at buyers who value reach. In a larger shop, that can reduce the need to relocate your hose source, but you still need to route the extended hose so it does not create a traffic hazard.
For Frequent Use
Frequent users gain the most from the spring-rewind and multiposition locking system. If you only use an oxy-acetylene torch a few times a year, manually storing a shorter hose may be simpler and require less wall space.
Compatibility and Safety
This reel is marketed for twin oxygen and acetylene service. You should still verify that its connections, pressure rating, hose type, and other specifications match your regulators, torch equipment, gas service, and applicable workplace requirements.
Inspect the hose and connections before use, and remove damaged or questionable hose from service. Keep the hose away from hot objects, sharp edges, traffic areas, and conditions that can kink or damage it. Follow the equipment instructions and the safety requirements that apply to your shop or jobsite.
No specific certification was clearly verified for this ZeHuoGe listing. For that reason, this review does not claim OSHA certification, UL certification, or another approval that the accessible product information does not document.
How Does This Welding Hose Reel Compare to Others?
The ZeHuoGe ZHG66954 stands out mainly for its listed 1/4-inch x 100-ft twin hose configuration and substantial steel construction. If maximum reach is your priority, that gives it a clear point of difference from many common 50-ft reels.
For comparison, VEVOR sells 1/4-inch x 50-ft retractable oxygen/acetylene reels with a listed 300 PSI working pressure, while the Klutch spring-rewind twin-line model also pairs a 50-ft hose with a 300 PSI maximum rating. Those alternatives may make more sense when you need less hose but prioritize the higher pressure specification. The ZeHuoGe is more compelling when you need the longer listed reach and are comfortable with its 200 PSI rating and heavier 51.7-pound build.
User Experience: What Matters in Daily Use
The features most likely to affect your daily experience are the ratchet lock, spring retraction, hose stopper, rollers, guide arm, and mounting stability. These determine how easily you can pull out the hose, stop at a useful length, change direction, and store it again.
Buyer-rating snapshots can change and should not replace a specification check. For a product carrying oxygen and fuel-gas hoses, compatibility, pressure rating, hose condition, mounting security, and reliable retraction matter more than a single star-rating figure.
Pros and Cons
Pros
- Listed 1/4-inch x 100-ft twin oxygen/acetylene hose setup provides long working reach.
- Heavy-gauge steel frame includes reinforced edges and stiffening ribs.
- Multiposition ratchet lets you lock the hose at different extension lengths.
- Four non-snag rollers, adjustable stopper, and guide arm improve hose management.
- Listed -40°F to 140°F hose temperature range suits varied workshop conditions.
Cons
- The 51.7-pound listed weight demands a strong, properly planned mounting location.
- The 200 PSI working-pressure rating is lower than some 300 PSI competing reels.
- Mounting hardware, specific certifications, warranty terms, and replacement-hose details are not clearly verified.
Is It Worth the Price?
The ZeHuoGe ZHG66954 should be judged as a heavy-duty, feature-focused hose reel rather than a basic hose hanger. You are getting the reel, the listed long twin-hose configuration, spring retraction, a multiposition lock, rollers, an adjustable guide arm, and a substantial steel frame in one setup.
That makes it worth considering when long reach and organized hose storage can save you time on regular fabrication or repair work. It is harder to justify for occasional torch use, a very small garage, or a setup where a shorter and lighter 50-ft reel already provides enough reach.
Frequently Asked Questions
How long is the ZeHuoGe ZHG66954 welding hose?
The product title and feature information market it as a 1/4-inch x 100-ft twin oxygen/acetylene welding hose setup. Because twin-hose length descriptions can sometimes be interpreted differently, confirm the exact usable pull length shown on the Amazon listing before ordering if reach is critical.
What is the maximum working pressure?
The ZeHuoGe ZHG66954 is listed for a maximum working pressure of 200 PSI. Check that rating against the requirements of your complete oxygen/acetylene system before use.
Can the ZeHuoGe welding hose reel be wall mounted?
Yes. The product is listed as a wall-mount reel and uses a reinforced mounting base. Because its listed weight is 51.7 pounds, use an appropriate structural mounting surface and suitable fasteners for your installation.
Does it include mounting hardware?
The accessible product information does not clearly verify that a mounting-hardware kit is included. Check the current package contents before buying and choose fasteners appropriate for your mounting structure.
Is it compatible with standard oxygen and acetylene equipment?
The reel is specifically marketed for twin oxygen and acetylene hoses. However, the fitting thread sizes were not clearly verified in the accessible product information, so check your regulator and torch connections before purchasing.
Can a damaged hose be replaced?
The accessible listing does not clearly document a replacement-hose procedure or approved replacement part. Do not improvise with an unverified hose or fitting. Use only components confirmed as suitable for your gas service, reel, pressure requirements, and applicable safety rules.
What safety certifications does the reel have?
No specific safety certification was clearly verified in the accessible listing information. Confirm any certification or compliance requirement directly from the current product documentation before using the reel in a regulated workplace.
How large and heavy is the welding hose reel?
The verified listing gives dimensions of 21 x 9 x 20 inches and a listed weight of 51.7 pounds. Measure your intended mounting area before ordering and leave enough clearance for the hose and guide arm to operate correctly.
The Bottom Line
The ZeHuoGe ZHG66954 is a strong fit when you want a substantial retractable reel, long listed twin-hose reach, a 200 PSI working-pressure rating, and controlled hose storage for regular oxy-acetylene work. Buyers who need a lighter reel, a shorter hose, a verified 300 PSI rating, or clearly documented certifications and accessories should compare alternatives before deciding.
