Welding fumes, limited visibility, and heat inside a hood can make long jobs harder than they need to be. The YESWELDER LYG-M800H Powered Air Purifying Respirator welding helmet combines an auto-darkening helmet with powered filtered airflow, giving you eye, face, and respiratory protection in one system. Its biggest strengths are the 3.93 x 3.66-inch viewing area, four arc sensors, and PAPR filtration rated to capture up to 99.97% of airborne particles down to 0.3 microns. The tradeoff is that the complete PAPR setup is much bulkier and heavier than a basic welding helmet, so this review will help you decide whether the extra protection is worth it for your work.
Quick Verdict
Rating: Recommended with caveats
Best For: Welders who want a large-view auto-darkening helmet combined with powered filtration for dusty or fume-heavy work.
Bottom Line: The LYG-M800H PAPR kit gives you a wide true-color viewing area, four sensors, adjustable welding shades, and powered filtered airflow in one package. Its main drawback is the added weight and bulk of a full PAPR system compared with a standard welding hood.
| Specification | Detail |
|---|---|
| Brand | YESWELDER |
| Model | LYG-M800H / LYG-M800H-HXJ |
| Product type | PAPR auto-darkening welding helmet system |
| Filtration | Captures up to 99.97% of airborne particles and welding fume; listing specifies particles as small as 0.3 microns |
| Viewing area | 3.93 x 3.66 inches |
| Arc sensors | 4 premium sensors |
| Optical clarity | 1/1/1/1 true-color viewing |
| Shade range | 4 / 5-9 / 9-13 |
| Applications | TIG, MIG, MMA, plasma cutting, and grinding |
| Power | Battery powered; Amazon lists one lithium-ion battery included |
| Amazon-listed item weight | 10.28 lb for the complete listed PAPR product, not a helmet-only weight |
| Package dimensions | 23 x 13.5 x 12 inches |
What Is the YESWELDER LYG-M800H?

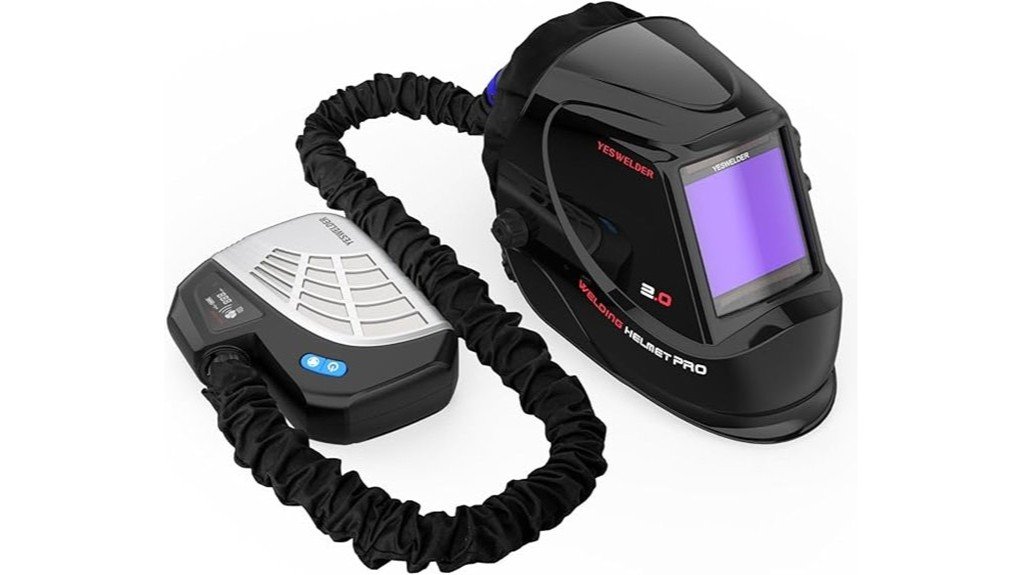

The YESWELDER LYG-M800H is more than a standard auto-darkening welding hood. This version combines the M800H helmet with a powered air purifying respirator (PAPR), which moves filtered air through your breathing zone while you work.
The helmet uses a 3.93 x 3.66-inch auto-darkening viewing area with four arc sensors and a 1/1/1/1 optical clarity rating. The shade settings cover light state 4 plus adjustable ranges of 5-9 and 9-13, making the system suitable for common TIG, MIG, MMA, plasma-cutting, and grinding tasks.
The main reason to choose this version over a normal welding helmet is respiratory protection. The listing states that the filtration system captures up to 99.97% of welding fume and airborne particles as small as 0.3 microns while supplying powered airflow around your breathing area.
Key Takeaways
- The PAPR filtration system is rated to capture up to 99.97% of airborne particles and welding fume down to 0.3 microns.
- The 3.93 x 3.66-inch viewing area gives you substantially more visual space than a narrow traditional lens.
- Four arc sensors and 1/1/1/1 optical clarity support clear, true-color viewing while welding.
- The 4/5-9/9-13 shade range covers TIG, MIG, MMA, plasma-cutting, and grinding applications listed for this model.
- The complete PAPR system is heavier and bulkier than a helmet-only setup, which matters if you weld for long periods.
Who Should Buy It?
Best For
- Welders who want powered filtered airflow instead of relying on a basic hood alone.
- People who value a large 3.93 x 3.66-inch true-color viewing area.
- Users who regularly switch among TIG, MIG, MMA, cutting, and grinding work.
Skip If
- You only need a lightweight helmet for occasional short welding jobs.
- You do not need powered respiratory filtration and want the simplest possible setup.
- You need a workplace-specific respirator certification or protection level that has not been confirmed for your exact job requirements.
Before You Buy: Do not confuse the Amazon-listed 10.28-pound item weight with the weight of the helmet shell alone. This listing is for a complete PAPR setup, so expect more equipment and bulk than you get with a conventional welding hood.
Why the YESWELDER LYG-M800H Stands Out in Welding Safety
The biggest difference is that you are getting eye, face, and respiratory features in one system. A normal auto-darkening helmet helps shield your face and eyes, but the LYG-M800H PAPR package also uses powered airflow and filtration to reduce the particles reaching your breathing zone.
The listing states that its filter captures up to 99.97% of welding fume and airborne particles down to 0.3 microns. That is particularly relevant when your work creates visible smoke, dust, or fine airborne debris.
You should still treat the helmet as part of a complete safety setup rather than the only protection required for every welding environment. Ventilation, correct filter maintenance, protective clothing, gloves, and workplace respiratory-safety procedures still matter.
PAPR Filtration and Airflow
The powered air purifying respirator is the main reason to buy this specific LYG-M800H package. The blower moves filtered air through the breathing area instead of leaving you inside a closed welding hood with only passive air movement.
Besides filtration, that moving air can make the hood feel less stagnant during longer jobs. The system is intended for airborne particles such as welding fume, dust, fog, and smoke, but you should always use the correct filter and follow the manufacturer’s instructions for your particular exposure.
The filter is a service component, not something you can ignore indefinitely. A clogged or damaged filter can restrict performance, so inspecting the system before use is part of owning a PAPR rather than a simple helmet.
Viewing Area, Sensors, and Auto-Darkening Performance
The 3.93 x 3.66-inch viewing area is one of the strongest helmet features. It gives you more room to see the joint, surrounding material, and nearby work area without moving your entire head as much as you may with a narrow lens.
Four premium arc sensors detect welding activity, while the 1/1/1/1 optical clarity specification is designed to provide clear true-color viewing with reduced distortion. That can make it easier to judge the weld pool and surrounding metal before and during a pass.
The shade arrangement covers light state 4, shades 5-9, and shades 9-13. This makes the helmet useful across several processes instead of locking you into one narrow shade setting.
Processes and Protection Coverage
| Area | What You Get |
|---|---|
| Respiratory | Powered filtered airflow with up to 99.97% capture of listed airborne particles and welding fume |
| Eye and face | Auto-darkening helmet with 1/1/1/1 optical clarity and four sensors |
| Shade control | 4 / 5-9 / 9-13 |
| Listed applications | TIG, MIG, MMA, plasma cutting, and grinding |
This range is useful when your workday includes more than one process. You can move from welding to cutting or grinding without needing a completely separate hood, provided you use the correct mode and settings for the task.
Comfort, Weight, and Long-Session Use
A PAPR system has an unavoidable comfort tradeoff. Powered filtration can improve the breathing environment and keep air moving, but you also have a blower, battery, filter, hose, and helmet to manage.
Amazon lists the complete product at 10.28 pounds. That should not be interpreted as the helmet shell itself weighing 10.28 pounds, but it does show that this is a much more substantial package than a basic auto-darkening hood.
Fit adjustment matters because a poorly balanced helmet becomes more noticeable during long sessions. Take time to set the headgear so the helmet sits securely without creating unnecessary pressure points.
Pro Tip: Before starting a long welding session, check the headgear fit, airflow, filter condition, battery status, lens condition, and auto-darkening response according to the manual. Fixing an adjustment problem before you strike an arc is much easier than stopping halfway through the job.
How It Performs in Real Use
For TIG and MIG Work
The large viewing area and four-sensor design are useful when you need to watch the puddle closely while changing torch or gun position. The true-color lens also gives you a more natural view than older green-tinted auto-darkening technology.
For Cutting and Grinding
The listed shade range and grinding compatibility make the helmet more flexible when fabrication involves several steps. You do not have to switch to a different face shield solely because you move from welding to grinding, although you must select the correct operating mode before starting.
For Fume-Heavy Shop Work
This is where the PAPR system has the clearest advantage over a standard M800H helmet. Powered filtration and airflow address airborne particles in the breathing zone while you work. It does not replace proper shop ventilation, but it adds a respiratory-protection component that a helmet-only setup lacks.
For Long Work Sessions
Longer sessions expose both the strengths and limitations of the system. Air movement can improve comfort inside the hood, while the extra PAPR hardware means more weight and more components to maintain. Your decision should depend on whether powered filtration matters more to you than maximum simplicity.
Setup Tips Before First Use
Start by adjusting the headgear so the helmet stays stable when you raise or lower it. Check that the hose and PAPR components do not restrict your normal movement, especially if you often weld in tight positions.
Inspect the filter and airflow system before welding. Confirm that the auto-darkening filter reacts correctly and select the shade range that matches the process you are performing.
The Amazon listing confirms that the product uses a lithium-ion battery and lists one battery as included, but it does not provide a verified runtime figure. Charge and inspect the power system according to the supplied instructions instead of assuming a fixed number of working hours.
Safety and Maintenance
Keep the viewing lenses clean enough to see the work clearly and replace damaged protective lenses as needed. Avoid harsh cleaning methods that could scratch the viewing area or damage electronic components.
The respirator side requires additional attention. Inspect filters, airflow components, the hose, battery, and connections before use, and replace consumable filtration components according to the manufacturer’s instructions.
If you work under an employer respiratory-protection program or in an environment with specific hazardous contaminants, confirm that the exact respirator configuration meets the protection requirements for that workplace. A product description alone should not replace a proper exposure assessment or required professional safety guidance.
Pros and Cons
Pros
- PAPR filtration captures up to 99.97% of listed airborne particles and welding fume down to 0.3 microns.
- Large 3.93 x 3.66-inch viewing area gives you a broad view of the work.
- Four arc sensors and 1/1/1/1 optical clarity support clear true-color viewing.
- Wide 4/5-9/9-13 shade range covers several welding and cutting processes.
- Combines welding, grinding, and powered respiratory features in one system.
Cons
- The complete PAPR setup is heavier and bulkier than a standard welding helmet.
- The battery, filter, blower, and hose add maintenance that a helmet-only setup does not require.
- Exact battery runtime is not stated on the current Amazon product page, so you should not assume a fixed full-shift runtime.
What Users Say About the YESWELDER LYG-M800H
Feedback reflected in the original review emphasizes the same features that stand out on paper: strong airflow, a broad viewing area, clear visibility, and a comfortable fit once the helmet is adjusted correctly.
The more practical criticisms concern weight, overall bulk, and adjustment. Those points make sense for a PAPR system because you are adding respiratory hardware to a helmet rather than wearing a simple hood alone. Buyers who prioritize low weight above respiratory filtration may prefer a conventional auto-darkening helmet.
Is It Worth the Price?
The LYG-M800H PAPR should be judged as a complete respiratory welding system, not just as another auto-darkening helmet. You are paying for the helmet, large-view ADF, four sensors, powered airflow, filtration hardware, battery system, and associated components.
That makes it better suited to buyers who specifically want respiratory filtration and a large viewing area. If all you need is eye and face protection for occasional welding, a basic M800H-style helmet without the PAPR hardware is likely the simpler choice.
The value is strongest when you will actually use the filtration system regularly. Otherwise, you are accepting extra bulk and maintenance without receiving much benefit from the feature that separates this kit from a conventional hood.
How It Compares to Alternatives
A standard YESWELDER LYG-M800H auto-darkening helmet without the PAPR system gives you the familiar large viewing area and welding controls with less equipment to carry and maintain. It makes more sense when you already have an appropriate respiratory solution or do not need powered airflow for your work.
At the higher end, systems such as the 3M Speedglas G5-01 with Adflo PAPR offer a more configurable professional respiratory-welding platform with adjustable airflow options and a broad accessory ecosystem. The YESWELDER makes the most sense when you want the core combination of PAPR filtration, a large true-color lens, and multi-process capability without moving directly into that type of premium professional system.
Frequently Asked Questions
How effective is the LYG-M800H PAPR filtration?
The current listing states that the system captures up to 99.97% of welding fume and airborne particles as small as 0.3 microns. Filter condition and correct system use still matter, so follow the supplied maintenance instructions.
How large is the viewing area?
The verified viewing area is 3.93 x 3.66 inches. The helmet also uses four arc sensors and a 1/1/1/1 optical clarity specification for true-color viewing.
How long does the battery last?
The current Amazon page confirms a lithium-ion battery and lists one battery as included, but it does not provide a verified operating-runtime figure. Because of that, you should not rely on the older eight-hour claim and should check the current manual for charging and runtime guidance.
Can you use the LYG-M800H for grinding and cutting?
Yes. The listing identifies the helmet for TIG, MIG, MMA, plasma-cutting, and grinding applications. Always select the correct operating mode and shade setting before starting the task.
Does the helmet itself weigh 10.28 pounds?
Amazon lists 10.28 pounds as the item weight for the complete PAPR product listing. That should not be treated as a verified helmet-shell-only weight because the package includes the respiratory system and related hardware.
How should you clean and maintain the system?
Keep the lens and helmet surfaces clean without using abrasive methods, and regularly inspect the filter, hose, blower, battery, and connections. Replace damaged or used-up components according to the manufacturer’s instructions rather than continuing to use a compromised respirator system.
Who should skip the YESWELDER LYG-M800H PAPR?
It is probably more equipment than you need if you only weld occasionally and your priority is a lightweight, simple helmet. You should also compare other systems if your job requires a specific respirator certification, assigned protection factor, or employer-approved configuration that has not been verified for this exact kit.
The Bottom Line
The YESWELDER LYG-M800H PAPR is worth considering when you want powered filtration, a large 3.93 x 3.66-inch true-color viewing area, four sensors, and multi-process welding capability in one system. It is best for welders who will genuinely use the respiratory features, while buyers who mainly want a lightweight hood should choose a simpler helmet without the PAPR hardware.
Its strongest feature is the combination of filtered airflow and a capable auto-darkening lens. Its main limitation is the additional bulk, weight, battery management, and filter maintenance that come with any complete PAPR setup.
