Connecting a TIG torch to a power source can become confusing when the torch cable and machine use different connection standards. The CK Worldwide SL2-35 is designed for a specific job: connecting compatible gas-cooled TIG torches to machines that use a large DINSE 35 connection. Its rugged Safe-Loc construction and accessible clamshell design make cable installation and servicing more practical, but compatibility matters because the standard SL2-35 is a non-gas-thru model. This review explains the connector size, compatible torch families, setup considerations, and the situations where another CK connector would be a better choice.
Quick Verdict
Rating: Recommended with caveats
Best For: TIG welders using a compatible CK gas-cooled torch and a power source with a DINSE 35 connection.
Bottom Line: The SL2-35 gives you a purpose-built Safe-Loc connection with a rugged insulated clamshell and a standard 1/2-inch DINSE 35 fitting. Its main limitation is compatibility: it is not the gas-thru SL2-35M version and should not be purchased until you confirm both your torch fitting and machine connection.
| Specification | Detail |
|---|---|
| Brand | CK Worldwide |
| Model | SL2-35 |
| Product Type | Safe-Loc DINSE connector for gas-cooled TIG torches |
| DINSE Series | DINSE 35 |
| DINSE Size | 1/2 inch, approximately 12.8 mm |
| Connection Type | Non-gas-thru DINSE connection |
| Insulation | Rugged poly-resin clamshell around electrical connections |
| Compatible CK Torch Families | CK9, CK17, CK130, CK150, FL130, FL150, and MR70 |
| Torch Connection | Designed for compatible one-piece power cable TIG torch setups |
| Best Use | Connecting a compatible gas-cooled CK TIG torch to a power source with the correct large DINSE connection |
Key Takeaways
- The CK Worldwide SL2-35 is a DINSE 35 Safe-Loc connector with a 1/2-inch, approximately 12.8 mm machine connection.
- The standard SL2-35 is intended for non-gas-thru DINSE setups. Do not confuse it with SL2-35M gas-thru variants.
- Its electrical connection is protected by a rugged poly-resin clamshell that can be opened for cable access and servicing.
- CK Worldwide lists the SL2-35 for CK9, CK17, CK130, CK150, FL130, FL150, and MR70 torch families.
- You should verify your machine’s DINSE size and gas arrangement before ordering because DINSE 25, DINSE 35, M16, gas-thru, and quick-disconnect configurations are not interchangeable simply because they look similar.
What Is the CK Worldwide SL2-35?

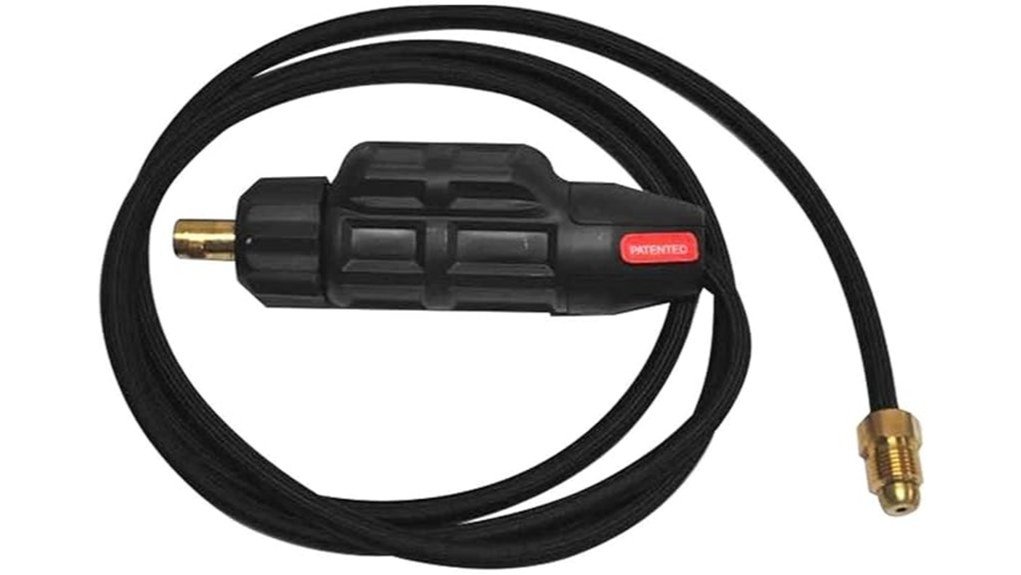

The CK Worldwide SL2-35 is a Safe-Loc male DINSE 35 connector used as part of a TIG torch power and gas connection setup. It is built for gas-cooled torches and connects compatible CK torch cable assemblies to welding power supplies that use the larger DINSE 35 connection.
The connector’s main advantage is not added welding power or a change in arc characteristics. Its purpose is to provide the correct mechanical and electrical interface between compatible equipment. The Safe-Loc design also surrounds electrical connections with a rugged poly-resin clamshell, giving you an insulated housing that can be opened when the cable connection needs installation or service.
This distinction matters because connector selection is easy to get wrong. CK Worldwide sells several similar Safe-Loc versions for different DINSE sizes, gas arrangements, torch families, and machine connections. Buying by appearance alone can leave you with an adapter that does not match your welder.
Who Should Buy It?
Best For
- You have a compatible CK9, CK17, CK130, CK150, FL130, FL150, or MR70 gas-cooled TIG torch.
- Your welding machine uses the larger DINSE 35 connection.
- You want a serviceable Safe-Loc connector with an insulated poly-resin clamshell.
Skip If
- Your machine has the smaller DINSE 25 socket or another connection standard.
- You specifically need gas to pass through the DINSE connector itself.
- Your torch belongs to a CK family that requires a different Safe-Loc part number.
Before You Buy: Do not assume every large-looking DINSE port accepts the SL2-35. Confirm the machine’s connection type in its manual and verify whether your TIG setup uses a separate gas inlet or requires a gas-thru DINSE connector.
Design Features and Accessibility
The Safe-Loc design uses a rugged poly-resin clamshell around the electrical connection. That housing is useful in a welding environment because it keeps the conductive connection covered while still giving you access when a cable must be installed, inspected, or repaired.
The clamshell layout is especially helpful compared with improvised cable connections. You can access the internal cable and connector area without treating the adapter as a permanently sealed part. That does not eliminate the need for correct assembly, but it makes routine servicing more practical.
For you as a buyer, durability here should be viewed as protection for the connection rather than a promise that the connector is indestructible. Welding leads are regularly dragged, bent, stepped around, and exposed to shop debris, so proper strain relief and cable routing still matter.
Connector Information and Options
The most important specification is the DINSE 35 connection. CK identifies this size as 1/2 inch, approximately 12.8 mm. That is different from the smaller DINSE 25 family, which CK also supports with separate Safe-Loc models.
The standard SL2-35 should also be distinguished from similar part numbers. The SL2-35 is the non-gas-thru version for compatible gas-cooled torch setups. CK also lists an SL2-35M gas-thru model, an SL2-35QD quick-connect configuration, an SL2-35-M16 version for M16 applications, and other torch-specific variants.
Pro Tip: Read the complete part number before ordering. A small suffix such as M, QD, M16, or -24 can represent an important change in gas routing, machine connection, or torch compatibility.
Fit and Compatibility
CK Worldwide currently identifies the SL2-35 for the CK9, CK17, CK130, CK150, FL130, FL150, and MR70 torch families. This gives you a useful starting point, but torch compatibility is only half of the check.
You also need a power source with the correct DINSE 35 socket and the correct gas arrangement. Some welding machines route shielding gas separately, while others use a gas-thru connection. The SL2-35 is intended for the former type of DINSE arrangement.
If you cannot identify the machine connector by its documentation, measure carefully or consult the machine manufacturer or a welding supplier. CK specifically recommends checking machine documentation when distinguishing connections that may appear similar.
Installation and Setup
The accessible clamshell design makes the SL2-35 easier to service than a connection that hides the cable termination inside a permanently closed housing. Even so, this is an electrical welding connection, so installation should not be treated like attaching a simple household plug.
Disconnect the welding machine from power before working on the connector. Confirm the cable termination, DINSE size, torch connection, and gas routing before assembly. The connector should lock firmly into the machine without excessive force or looseness.
After installation, route the torch cable and gas hose so they are not sharply kinked or placed where hot metal, grinding sparks, wheels, or foot traffic can damage them. Check the connector periodically for looseness, damaged insulation, heat discoloration, or cable strain.
Build Quality and Performance
The SL2-35 combines a conductive DINSE connection with the Safe-Loc insulated housing. Its poly-resin clamshell protects the electrical connection while the DINSE twist-lock format provides the machine interface.
Welding performance should be understood correctly. The SL2-35 is a connector, so it does not independently improve bead appearance, penetration, shielding coverage, or arc control. Its contribution is maintaining the correct connection between compatible torch equipment and the power source.
That makes connection quality the practical performance test. A properly selected and installed connector should lock securely, keep the electrical joint protected, and let your torch cable arrangement work without an improvised adapter.
How It Performs in Real Use
For a Workshop TIG Setup
In a fixed shop setup, the SL2-35 is useful when your compatible CK gas-cooled torch needs to connect to a machine with the larger DINSE 35 socket. Once fitted correctly, you get a purpose-built connection instead of relying on a homemade cable transition.
For Cable Service and Repair
The clamshell housing is valuable when you need access to the cable termination. You can open the housing to inspect the connection rather than replacing the complete adapter simply because the internal connection needs attention.
When Changing Welding Machines
The limitation becomes clear when you move a torch between machines. A second welder may use DINSE 25, M16, a stud connection, or gas-thru DINSE. The SL2-35 does not automatically make the same torch compatible with every machine.
For Long-Term Shop Use
The rugged insulated housing is well suited to normal welding-shop handling, but cable care still affects service life. Avoid pulling the machine by the torch lead, crushing the connector under equipment, or allowing the cable to carry mechanical strain at the termination.
Common Setup Mistakes to Avoid
- Buying DINSE 35 without checking gas routing: SL2-35 and SL2-35M are not the same configuration.
- Assuming every CK torch uses SL2-35: CK assigns different Safe-Loc connectors to different torch families.
- Confusing DINSE 25 and DINSE 35: verify the machine socket before ordering.
- Forcing a poor-fitting connector: a DINSE connection should match the machine rather than being forced into place.
- Ignoring cable strain: repeated pulling at the connector can stress the cable termination even when the housing itself remains intact.
Compatibility and Safety
A welding connector carries substantial electrical current, so damaged insulation, loose terminations, or incorrect parts should not be ignored. Turn the machine off and disconnect power before installing or servicing the connector.
Do not use the SL2-35 simply because the plug appears close to the correct diameter. Confirm the welding machine’s specified DINSE connection and the torch-side requirements. If you are uncertain about wiring, cable termination, or gas routing, use the machine and torch manuals or have the connection checked by a qualified welding-equipment technician.
The clamshell helps insulate the electrical connection, but it does not replace normal welding safety practices. Keep cables away from sharp edges and hot work, and replace damaged components rather than covering serious electrical damage with temporary repairs.
Pros and Cons
Pros
- Purpose-built 1/2-inch DINSE 35 connection.
- Rugged poly-resin clamshell protects the electrical connection.
- Housing provides practical access for installation and servicing.
- Supports several common CK gas-cooled TIG torch families.
- Part of CK Worldwide’s broader Safe-Loc connector system.
Cons
- The standard SL2-35 is not the gas-thru DINSE version.
- Compatibility is limited to the correct torch and machine connection combination.
- The similar Safe-Loc part numbers can make ordering confusing if you do not check your equipment first.
Is It Worth the Price?
The SL2-35 makes the most sense when it solves a specific compatibility problem in your TIG setup. You are paying for a branded Safe-Loc connector designed around CK torch equipment, an insulated serviceable housing, and the correct large DINSE interface.
Its value drops quickly if you have not confirmed the connection first. Buying the wrong DINSE size or the non-gas-thru version when your machine requires gas-thru means the connector cannot do the job you purchased it for. For that reason, compatibility is more important than finding the lowest price.
It is worth considering if you already know that your torch and power source match the SL2-35 specifications. If you are still uncertain about your machine socket or gas arrangement, identify those details before ordering.
How It Compares to Alternatives
The closest alternatives are other CK Worldwide Safe-Loc configurations rather than completely different welding accessories. If your machine uses the smaller DINSE connection, an appropriate DINSE 25 Safe-Loc model is the better direction. If your machine requires gas through the DINSE connection, the SL2-35M is the relevant gas-thru variant rather than the standard SL2-35.
If you want a quick connection on the gas line, CK also lists an SL2-35QD configuration. Machines using M16 connections require another variant, such as the SL2-35-M16. The best choice is therefore determined by your machine and torch, not by which connector has the most features.
Frequently Asked Questions
Is the CK Worldwide SL2-35 compatible with every TIG welding machine?
No. Your power source needs the correct DINSE 35 connection and a gas arrangement that matches the non-gas-thru SL2-35. Machines using DINSE 25, M16, stud connections, or gas-thru DINSE may require another adapter.
Is the SL2-35 a gas-thru DINSE connector?
No. CK Worldwide identifies the standard SL2-35 as its non-gas-thru DINSE 35 connector for compatible gas-cooled torches. The SL2-35M is a separate gas-thru version.
Which CK torches are listed for the SL2-35?
CK Worldwide lists the SL2-35 for CK9, CK17, CK130, CK150, FL130, FL150, and MR70 torch families. Other torch families can require a different Safe-Loc model even when the machine uses DINSE 35.
What size DINSE connector does the SL2-35 use?
It belongs to the DINSE 35 family and uses the larger 1/2-inch connection, approximately 12.8 mm. Check your welder’s manual rather than estimating the socket size by sight.
Can the SL2-35 be used for TIG welding?
Yes. It is specifically intended as part of compatible gas-cooled TIG torch connection setups. It does not create the TIG process itself, so your torch, power source, gas system, and other equipment still need to be correctly configured.
What is the clamshell housing made from?
CK’s Safe-Loc system uses a rugged poly-resin clamshell to insulate the electrical connection. The housing also gives you access to the cable connection for installation or servicing.
What should I check before ordering an SL2-35?
Confirm your torch model, the machine’s DINSE size, and whether shielding gas enters separately or passes through the DINSE connection. Those three checks prevent most compatibility mistakes with this type of adapter.
The Bottom Line
The CK Worldwide SL2-35 is a sensible choice when you have a compatible CK gas-cooled TIG torch and a machine that requires the standard non-gas-thru DINSE 35 connection. Its strongest features are the rugged Safe-Loc clamshell and purpose-built 1/2-inch DINSE interface, while its main weakness is that very similar CK connector variants serve different machines and gas configurations.
Buy it after confirming your equipment specifications. Skip it if your machine requires DINSE 25, gas-thru DINSE, M16, or another connector standard.
