A worn, damaged, or unreliable gun can make an otherwise useful Century FC-90 frustrating to operate. The Eddyweld 8Ft MIG Gun is an aftermarket replacement marketed specifically for the Lincoln/Century FC-90 flux-cored wire-feed welder, with extra reach and several replacement consumables included. Its main attraction is simple: you can replace the gun assembly without replacing the entire welder. The tradeoff is that aftermarket fit deserves careful checking, because installation experiences appear less consistent than the product’s simple compatibility claim suggests.
Quick Verdict
Rating: 7.5/10, Recommended with caveats
Best For: Century FC-90 owners who need an aftermarket replacement gun and want more working reach than the original 6-ft gun assembly.
Bottom Line: The Eddyweld 8Ft MIG Gun offers useful reach, included consumables, and stated compatibility with the Century FC-90. The main concern is fit consistency, so you should compare the new assembly carefully with your original gun before assuming installation will be completely plug-and-play.
Product Features and Specifications
| Specification | Detail |
|---|---|
| Brand | Eddyweld |
| Product Type | Replacement MIG/flux-core gun assembly |
| Advertised Length | 8 ft |
| Listed Weight | About 3 lb |
| Listed Materials | Copper and rubber |
| Primary Compatibility | Lincoln/Century FC-90 flux-cored wire-feed welder |
| FC-90 Model Reference | K3493-1 |
| Listed Tip Style | .030 in (0.8 mm) |
| Included Consumables | 5 contact tips and 1 nozzle |
| Other Listed Components | 1 MIG gun and 1 nozzle holder |
| Best Use | Replacement of a worn or damaged FC-90 gun assembly |
Key Takeaways
- The Eddyweld gun is marketed specifically as an aftermarket replacement for the Lincoln/Century FC-90 flux-cored welder.
- Its advertised 8-ft length gives you more working reach than the 6-ft gun assembly originally supplied with the FC-90.
- The package is listed with five contact tips, one nozzle, a nozzle holder, and the gun assembly.
- The FC-90 is a gasless flux-core machine, so normal installation does not involve connecting or checking a shielding-gas hose.
- Aftermarket fit is the biggest buying consideration. Compare the connector, liner, wire path, and trigger wiring with your existing gun before committing to the installation.
What Is the Eddyweld 8Ft MIG Gun?

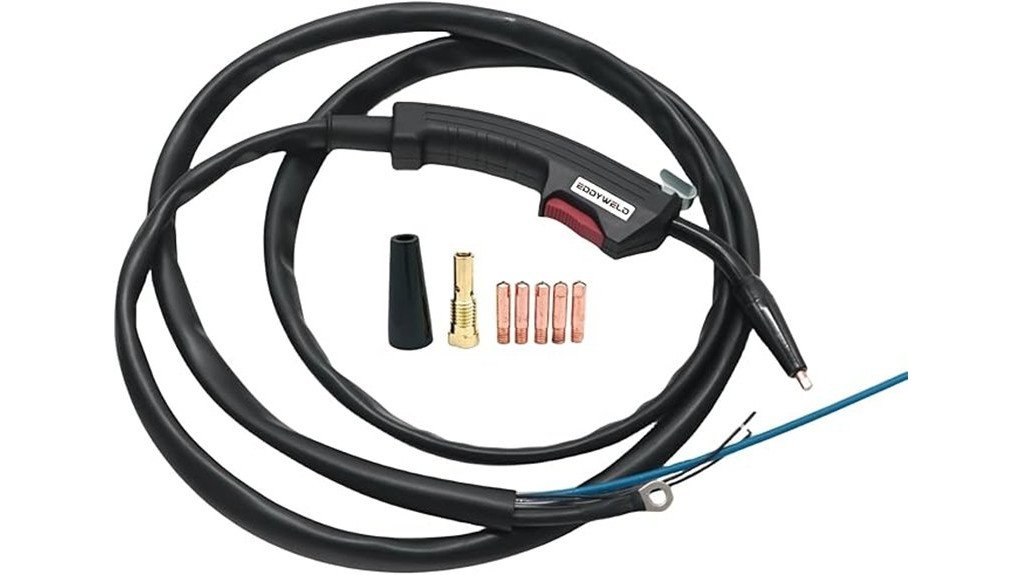

The Eddyweld 8Ft MIG Gun is a replacement torch and cable assembly intended for the Century FC-90, including the K3493-1 version of the flux-cored wire-feed welder. Although the product is described as a MIG gun, the Century FC-90 itself is designed for self-shielded flux-cored welding rather than conventional gas-shielded MIG operation.
The replacement is most useful when your original gun, trigger, liner, cable, or front-end components are worn or damaged but the welder itself still works. The original FC-90 was supplied with a 6-ft gun and cable assembly, while this replacement is marketed as an 8-ft model. That extra reach can make it easier to work around a bench, vehicle, frame, or other project without moving the welder as often.
Before You Buy: Confirm that your machine is the Century FC-90 and compare the replacement gun’s connections with your original assembly. Do not assume compatibility with the newer FC-90i or another Lincoln, Century, or Harbor Freight welder simply because the gun looks similar.
Who Should Buy It?
Best For
- Century FC-90 owners replacing a worn or damaged gun assembly.
- DIY welders who want more reach than the original 6-ft FC-90 gun.
- Garage and maintenance users who value included replacement contact tips and a nozzle.
Skip If
- You need guaranteed OEM fit with no possibility of adjustment.
- Your welder is not the Century FC-90 and you have not independently confirmed compatibility.
- You need a complete welder upgrade rather than only a replacement gun assembly.
Fit and Compatibility
Compatibility is the most important part of this purchase. The product is specifically marketed for the Lincoln/Century FC-90, and that makes it more targeted than a universal replacement gun. The FC-90 K3493-1 is a 120V gasless flux-core welder with a 30-to-90A output range.
The FC-90 can use .030-in and .035-in flux-cored wire when the correct drive-roll groove and contact tip are installed. The Eddyweld replacement is listed in a .030-in tip configuration, so you should verify the contact tip and liner setup if you normally weld with .035-in wire. A compatible gun connection does not automatically mean every included consumable matches every wire size.
Materials and Build Quality
Product information lists copper and rubber among the gun’s materials. Those are sensible materials for current-carrying components and a flexible welding cable, but material names alone do not prove long-term durability.
The listed weight is about 3 lb. An 8-ft assembly gives you useful reach while remaining practical for the portable FC-90 platform. Still, you should judge cable flexibility, trigger feel, strain relief, and liner quality when the product arrives rather than relying only on broad durability claims.
Some secondary buyer feedback has raised concerns about the feed hose being thinner than the original assembly. That does not mean every unit will fail, but it is a reasonable reason to avoid describing this replacement as an industrial-duty upgrade.
Installation Process and User Experience
The original article described installation as straightforward, but available information is more mixed. The product is marketed as easy to install, while some reported experiences describe the need to adjust the feed path or wiring connection. For that reason, you should treat it as an aftermarket replacement that may require careful fitting rather than a guaranteed drop-in part.
Setup Tips Before First Use
- Switch the welder off and unplug it before opening the wire-feed compartment or removing the existing gun.
- Take a clear photo of the original gun connection and wire path before disassembly.
- Place the old and new assemblies side by side and compare connector shape, liner position, trigger wiring, and cable routing.
- Confirm that the contact tip matches the diameter of the flux-cored wire you plan to use.
- Straighten the cable before feeding wire through the liner.
- After the wire feeds correctly, test the setup on scrap material before returning to an important project.
Pro Tip: Keep your original FC-90 gun assembly until the replacement has been installed, feeds wire smoothly, and passes a scrap-metal test. The old assembly gives you a direct reference for connector position, cable routing, and consumable setup.
Compatibility and Safety
The Century FC-90 uses a gasless flux-cored torch. You therefore do not need to inspect a shielding-gas connection as part of the normal FC-90 setup. Your main installation checks are the gun mounting point, trigger connection, liner alignment, correct contact tip, and smooth wire feeding.
Turn the machine off before working inside the wire-feed enclosure. When you intentionally feed wire during setup, remember that the gun connector block, wire electrode, and contact tip can become electrically energized. Point the gun away from yourself and other people, and follow the FC-90 operator manual for threading and setup.
Use proper welding PPE, including an appropriate welding helmet, gloves, protective clothing, and suitable eye protection during setup and testing. If the replacement requires electrical modification that you cannot confidently identify, stop and have the installation checked by a qualified repair technician.
How It Performs in Real Use
Replacing a Worn Original Gun
This is the clearest use case. If your FC-90 still powers up and feeds correctly but the original gun assembly is damaged, replacing the gun can be more practical than replacing the whole welder. The Eddyweld package also gives you several front-end consumables to begin with.
Garage and Maintenance Work
The advertised 8-ft length can be useful when working around equipment, a welding table, or a vehicle. The stock FC-90 was supplied with a 6-ft gun assembly, so the extra two feet can reduce how often you need to reposition the compact welder.
Tack Welds and Short Repair Jobs
The FC-90 platform is intended for portable flux-core work, and the replacement gun follows that use pattern. It makes the most sense for repair, maintenance, fabrication, and tack-welding jobs that already fall within your FC-90’s capabilities rather than as a way to increase the welder’s output or duty cycle.
Long-Term Use
The replacement may restore a usable FC-90 to service, but there is not enough verified information to promise that this aftermarket assembly will outlast the original gun. Inspect the cable, strain relief, liner, trigger, nozzle, and contact tip regularly, especially if you use the welder frequently.
Pros and Cons
Pros
- Specifically marketed for the Lincoln/Century FC-90.
- Advertised 8-ft length provides more reach than the original 6-ft FC-90 gun.
- Includes five contact tips and a nozzle.
- Copper and rubber materials are listed for the assembly.
- Can be a practical alternative to replacing an otherwise functional welder.
Cons
- Aftermarket installation may require more adjustment than the listing implies.
- Compatibility with welders other than the specified FC-90 should not be assumed.
- The listed .030-in tip setup may require a tip change if you normally use .035-in wire.
Is It Worth the Price?
The Eddyweld gun makes the most financial sense when the FC-90 itself is still working and the gun assembly is the part keeping you from welding. In that situation, an aftermarket replacement can offer better value than buying another complete machine.
The included contact tips and nozzle add practical value because these are normal wear items. The 8-ft design also gives you an upgrade in working reach compared with the original 6-ft FC-90 gun.
The limitation is fit certainty. If the aftermarket replacement costs close to an OEM assembly and you strongly prefer documented factory fit, the OEM route may be worth the extra confidence. Check the current product details and return terms before buying because seller conditions can change.
How It Compares to Alternatives
The most relevant comparison is the original Century gun and cable assembly. The FC-90 parts information identifies the factory gun and cable assembly as part 9SS31898-4, and the original machine was supplied with a 6-ft gun. An OEM replacement is the better reference if exact factory configuration matters most to you.
The Eddyweld replacement makes more sense when you specifically want its advertised 8-ft reach and included consumables. Generic aftermarket FC-90 guns are another option, but you should compare connector style, liner compatibility, trigger wiring, consumables, and return policy rather than buying only by cable length.
Frequently Asked Questions
Is the Eddyweld 8Ft gun compatible with the Century FC-90?
Yes. The product is specifically marketed for the Lincoln/Century FC-90 flux-cored wire-feed welder. You should still compare your existing connector and assembly before installation because aftermarket fit can vary.
Will it fit the newer FC-90i?
Do not assume that it will. This listing specifically identifies the Century FC-90, and similarly named welders can use different internal connections or gun assemblies. Confirm the exact model and connector before ordering.
Can I use .035-in flux-core wire with this gun?
The Century FC-90 supports .030-in and .035-in flux-cored wire, but this replacement is listed with a .030-in tip configuration. If you use .035-in wire, make sure the contact tip, liner, and drive-roll setup match that wire size.
Does the Century FC-90 need shielding gas with this gun?
No. The FC-90 is designed for gasless, self-shielded flux-cored welding. The gun still uses a nozzle and contact tip, but normal FC-90 operation does not require an external shielding-gas supply.
What comes with the Eddyweld replacement gun?
Product information lists one MIG gun, one nozzle, five contact tips, and one nozzle holder. Check the current listing before purchase in case the seller changes the package contents.
Is installation easy for a beginner?
The product is marketed as easy to install, but reported fit experiences are mixed. If the connector, trigger wiring, or feed path does not match your original assembly, do not force the installation. Get qualified help if you are unsure about an electrical connection.
How should I test the gun after installation?
Follow the FC-90 manual for wire loading, confirm smooth wire feeding, and make sure the proper contact tip is installed. Then use your normal welding PPE and make a short test weld on suitable scrap material before working on the actual project.
Who should skip this replacement gun?
Skip it if you cannot confirm that your welder is compatible or if you need guaranteed factory fit. It is also unnecessary if your real problem is elsewhere in the welder, such as the drive system, power source, or control electronics.
The Bottom Line
The Eddyweld 8Ft MIG Gun is worth considering when you have a working Century FC-90 that needs a replacement gun and you value the extra reach of an 8-ft assembly. Its included consumables and model-specific marketing are useful advantages, but aftermarket fit is the main limitation, so buyers who want guaranteed factory configuration may prefer an OEM replacement.
For the right FC-90 owner, it earns a 7.5/10, Recommended with caveats. Confirm your exact welder, wire size, connector arrangement, and current package contents before ordering.
