Feeding soft aluminum wire through a standard MIG gun can cause frustrating wire-feed problems, which is why a compatible spool gun can make such a difference. The Miller Spoolmate 150 is built for home hobbyists and light fabricators who want a direct-connect spool gun with a long 20-foot cable and support for common aluminum wire. Its 150-amp output, 60% duty cycle, and durable drive system make it a capable light-industrial option, although welder compatibility and its .030–.035-inch wire range need to be checked before you buy. This review explains the verified specifications, compatibility limits, setup considerations, and situations where the Spoolmate 150 makes the most sense.
Quick Verdict
Editorial Rating: 8.6/10
Best For: Miller welder owners who need reliable .030–.035-inch aluminum wire feeding for hobby, repair, automotive, marine, or light-fabrication work.
Bottom Line: The Spoolmate 150 combines a 20-foot cable, 150 A at 60% duty cycle, dual V-knurled drive rolls, and broad support for 4000 and 5000 series aluminum wire. Its biggest limitation is compatibility, since it is intended for selected Miller power sources and some Syncrowave 210 installations require additional kits.
| Specification | Detail |
|---|---|
| Brand | Miller |
| Model | Spoolmate 150, 301272 |
| Product Type | Air-cooled pistol-grip MIG spool gun |
| Rated Output | 150 A at 60% duty cycle |
| Wire Diameter | .030–.035 in. (0.8–0.9 mm) |
| Supported Wire | 4000 and 5000 series aluminum, steel, and stainless steel |
| Wire Feed Speed | 115–715 ipm, dependent on power source |
| Maximum Spool Size | 4 in. (102 mm) |
| Cable Length | 20 ft. (6.1 m), direct-connect |
| Dimensions | 11.5 in. H × 3 in. W × 12.5 in. L |
| Net Weight | About 7.3 lb. with cable assembly |
| Drive System | Dual V-knurled drive rolls with adjustable tension |
| Included | Spoolmate 150, 20-ft cable, extra contact tips, and nozzle |
| Warranty | 90 days, parts and labor, according to Miller’s January 2025 specification sheet |
| Best Use | Light aluminum fabrication, home maintenance, automotive, marine repair, and hobby welding |
Key Takeaways
- The Miller Spoolmate 150 is rated at 150 A with a 60% duty cycle, giving you useful capacity for light fabrication and repair work.
- Its 20-foot direct-connect cable gives you more room to move around vehicles, benches, boats, and larger workpieces.
- It accepts .030–.035-inch wire and supports 4000 and 5000 series aluminum as well as steel and stainless steel wire.
- Dual V-knurled drive rolls, adjustable tension, and a clear spool cover help you manage wire feeding and monitor remaining wire.
- Compatibility is the main buying check. It works directly with several Miller machines, but some Syncrowave 210 configurations require Miller accessory or retrofit kits.

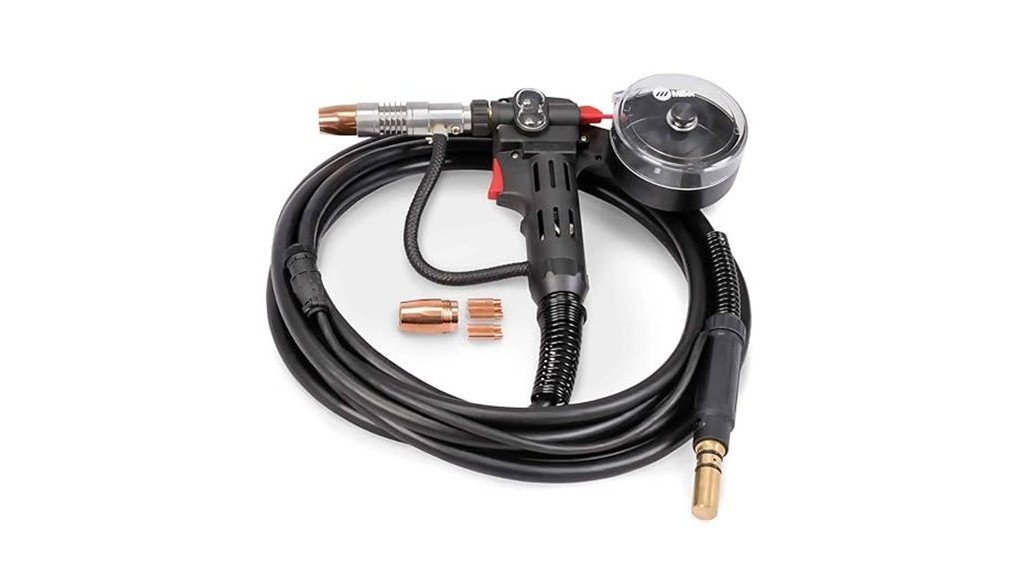

What Is the Miller Spoolmate 150?
The Miller Spoolmate 150, model 301272, is an air-cooled pistol-grip spool gun intended for MIG welding with aluminum, steel, and stainless steel wire. Placing the small wire spool directly at the gun shortens the distance soft aluminum wire must travel through the feeding system, which can help reduce feeding problems compared with pushing aluminum through a long conventional MIG-gun liner.
Miller positions this model for home hobbyists and light fabricators. It is particularly relevant when you regularly work with aluminum but do not need a heavier professional spool gun. The unit combines a 150-amp rating at a 60% duty cycle with a 20-foot cable and a maximum 4-inch wire spool.
Who Should Buy It?
Best For
- You own a confirmed compatible Miller welder and want to MIG weld aluminum.
- You do automotive, marine, home-repair, or light-fabrication work that benefits from a 20-foot cable.
- You mainly use .030- or .035-inch aluminum, steel, or stainless steel wire.
Skip If
- Your welder is not listed as compatible or requires an adapter setup you do not want to add.
- You need wire outside the .030–.035-inch range or more than a 4-inch spool.
- You need a higher-output production spool gun for sustained heavy industrial welding.
Before You Buy: Check the exact model and serial number of your Miller welding power source. Spoolmate 150 compatibility differs by machine, and some Syncrowave 210 units need additional Miller kits before the gun can be used.
Build Quality and Wire Feeding
One of the stronger parts of the Spoolmate 150 design is its wire-feed hardware. Miller uses dual V-knurled drive rolls, an adjustable drive-roll tension system, and an adjustable pressure lever. Those controls give you a practical way to load, unload, and tune pressure for the wire being used.
The drive system also uses a heavy-duty motor and cast aluminum gearbox. That is more meaningful than cosmetic construction because the wire-feed mechanism is one of the areas that matters most when handling soft aluminum wire.
A clear spool cover lets you see how much wire remains before it runs out. That simple feature can prevent you from starting a longer weld with an almost-empty spool.
Wire Capacity and Welding Performance
The Spoolmate 150 accepts .030- and .035-inch wire. Miller specifies compatibility with 4000 and 5000 series aluminum wire, along with steel and stainless steel wire. Wire-feed speed ranges from 115 to 715 inches per minute, although the actual range depends on the power source connected to the gun.
Its rated welding current is 150 amps at a 60% duty cycle. That makes it a light-industrial spool gun rather than a high-output production gun. For hobby fabrication, vehicle repairs, marine projects, and general maintenance, the rating provides useful working capacity without moving into a much larger spool-gun system.
The gun is air-cooled and uses a fixed neck. If your work frequently puts the torch into unusually tight angles, the fixed-neck design is worth considering before you purchase.
20-Foot Cable Reach and Handling
The 20-foot direct-connect cable is one of the Spoolmate 150’s main advantages. The extra reach can keep you from moving your welding machine every time you shift to another side of a vehicle, fabrication table, trailer, or boat.
Miller also uses heavy-duty strain relief at the cable connection. The complete gun and cable assembly weighs about 7.3 pounds, so you should expect more overall mass than you would get from a basic MIG gun without a spool attached at the handle.
Pro Tip: Before loading wire, confirm both the wire diameter and contact-tip size. Miller specifies contact tip 199387 for .030-inch wire and 199388 for .035-inch wire, so matching the consumable to your wire helps avoid unnecessary feeding problems.
Compatibility: Which Welders Work With the Miller Spoolmate 150?
Compatibility is the most important detail to check because the Spoolmate 150 is not a universal spool gun. Miller’s January 2025 specification sheet lists direct-connect support for the Millermatic 142, Millermatic 211, Millermatic 211 Auto-Set with MVP, Multimatic 215, Multimatic 220 AC/DC, and Multimatic 235.
The Multimatic 200 is also listed with an effective serial-number requirement beginning at MF364047N. If you own an older Multimatic 200, verify compatibility with Miller before ordering rather than assuming the connector alone means the gun will work.
Syncrowave 210 compatibility requires more attention. Miller’s current sheet states that Syncrowave 210 TIG machines prior to serial number ME390001J require retrofit kit 269044 plus accessory kit 301254. Later Syncrowave 210 TIG configurations may require accessory kit 301254, while the Syncrowave 210 TIG/MIG Complete is listed for direct connection.
How It Performs in Real Use
Light Aluminum Fabrication
For aluminum brackets, panels, small frames, and similar fabrication jobs, the spool-at-the-gun design keeps the soft wire close to the drive system. The support for both 4000 and 5000 series aluminum wire gives you more flexibility than a spool gun restricted to one aluminum family.
Automotive Repair and Restoration
The 20-foot cable is useful when you need to move around a vehicle without constantly repositioning the welding power source. Miller specifically lists automotive welding among the Spoolmate 150’s applications, making this one of its clearest practical uses.
Marine and Home Repair
Miller’s literature identifies home maintenance and marine repair as intended applications. In these settings, the combination of moderate output and long cable reach is more important than extreme production capacity.
Longer Shop Work Sessions
The 60% duty-cycle rating means the gun can handle more sustained work than a lower-duty hobby gun when used within its rated conditions. You still need to follow the duty-cycle and output limits of the connected welding power source, since the complete system is limited by its individual components.
Setup and Maintenance Tips
Use the Spoolmate 150 with the correct CV/DC power source and follow the welder and spool-gun instructions when connecting it. Verify your wire type, diameter, contact tip, shielding gas, polarity, and machine settings before striking an arc.
- Use .030- or .035-inch wire within the gun’s specified capacity.
- Set drive-roll tension high enough for consistent feeding without unnecessarily crushing or deforming soft wire.
- Keep the nozzle and contact tip clean and replace worn consumables.
- Inspect the 20-foot cable and strain-relief areas for damage before use.
- Keep the spool compartment clean and close the clear cover after loading wire.
- Follow Miller’s instructions when changing drive-roll or push-roll components.
Compatibility and Welding Safety
Welding exposes you to arc radiation, sparks, hot metal, electrical hazards, fumes, and compressed shielding gas. Use appropriate welding PPE, including a suitable welding helmet, eye protection, flame-resistant clothing, welding gloves, and proper footwear. Keep combustible materials away from the welding area and make sure the work area has appropriate ventilation or fume control.
Gas-shielded MIG welding outdoors requires extra care. Wind can blow shielding gas away from the weld pool and contribute to porosity. If you weld outside, protect the arc with an appropriate wind block or sheltered work area and follow the welding-machine, wire, and shielding-gas instructions.
Do not treat a compatible spool gun as confirmation that every material, joint, or machine setting is safe. Your power-source manual and applicable welding procedures should guide setup and operating limits.
Pros and Cons
Pros
- 150 A at 60% duty cycle suits hobby and light-fabrication work.
- 20-foot cable provides excellent reach around larger projects.
- Handles .030–.035-inch 4000/5000 series aluminum, steel, and stainless wire.
- Dual V-knurled drive rolls and adjustable tension support consistent feeding.
- Clear cover lets you monitor the remaining 4-inch wire spool.
Cons
- Compatibility is limited to specific Miller welding machines and configurations.
- Wire capacity is restricted to .030–.035 inch and a maximum 4-inch spool.
- Miller’s specification sheet lists only a 90-day parts-and-labor warranty for the gun.
Is It Worth the Price?
The Spoolmate 150 makes the most sense as a premium accessory for an already-compatible Miller welding setup. You are paying for Miller-specific compatibility, a 20-foot cable, a durable drive system, and broader aluminum-wire support than Miller’s lighter Spoolmate 100.
Its value is strongest if aluminum welding is a regular part of your repair or fabrication work. It is harder to justify if you weld aluminum only occasionally, need a different wire-size range, or would have to purchase several extra compatibility components to connect it to your machine.
How It Compares to Alternatives
The Miller Spoolmate 100 is the lighter-duty alternative. Miller rates it at 135 A with a 30% duty cycle and gives it a 12-foot cable, so the Spoolmate 150 offers more output capacity, a higher duty cycle, and substantially more reach. The Spoolmate 100 can still make sense when you have a compatible machine and only need lighter aluminum work.
The Spoolmate 200 moves up to 160 A at a 60% duty cycle and offers different machine compatibility, while the Spoolmate 3035 is another 150 A option designed around a different set of power sources. The Spoolmate 150 is the logical choice when its direct-connect compatibility matches your Miller welder and you want .030–.035-inch aluminum capability without moving to a heavier professional spool-gun platform.
Frequently Asked Questions
What materials can the Miller Spoolmate 150 weld?
Miller specifies .030–.035-inch 4000 and 5000 series aluminum wire as well as steel and stainless steel wire. Your welding power source, shielding gas, consumables, and settings must also be appropriate for the material you plan to weld.
Does the Spoolmate 150 work with a Millermatic 211?
Yes. Miller lists the Millermatic 211 and Millermatic 211 Auto-Set with MVP as direct-connect power sources for the Spoolmate 150.
Which newer Miller welders are listed as compatible?
Miller’s January 2025 sheet lists the Millermatic 142 plus the Multimatic 215, 220 AC/DC, and 235 for direct connection. The Multimatic 200 is also supported from the specified MF364047N serial-number point.
Does a Syncrowave 210 need an adapter kit?
It depends on the Syncrowave 210 configuration and serial number. Miller specifies retrofit kit 269044 plus accessory kit 301254 for earlier Syncrowave 210 TIG units, while other configurations may require only the accessory kit. The TIG/MIG Complete version is listed for direct connection.
What size wire and spool does the Spoolmate 150 accept?
The specified wire-diameter range is .030–.035 inch, or 0.8–0.9 mm. Maximum spool diameter is 4 inches, so it is intended for compact gun-mounted spools rather than larger shop spools.
Can you use the Spoolmate 150 outdoors?
You can perform gas-shielded MIG welding outdoors, but wind can remove shielding gas from the arc and cause weld defects such as porosity. Use an appropriate wind block or sheltered work area and follow the welding procedure and shielding-gas requirements.
How should you maintain the Spoolmate 150?
Keep the nozzle and contact tip clean, inspect the cable and strain relief, and replace worn consumables. You should also keep the spool and drive area clean and set drive-roll pressure according to the wire and Miller’s instructions.
What warranty does Miller list for the Spoolmate 150?
Miller’s January 2025 Spoolmate 150 specification sheet states that the guns are warranted for 90 days for parts and labor. Check the current warranty terms from Miller or the seller before purchase because warranty policies can change.
The Bottom Line
The Miller Spoolmate 150 is a strong fit when you already own a compatible Miller welder and need dependable .030–.035-inch aluminum feeding, good cable reach, and a 150 A, 60% duty-cycle rating. Its biggest strengths are the 20-foot cable, dual V-knurled feed system, clear spool cover, and support for both 4000 and 5000 series aluminum, while limited machine compatibility and a 4-inch spool size are the main tradeoffs.
You should skip it if your welder is not confirmed compatible or if your work needs a broader wire range or heavier production capacity. For the right Miller setup, however, the Spoolmate 150 remains a practical and well-specified aluminum spool-gun option.
