A 50-amp outlet box has to do more than hold a receptacle. You need the plug type to match your equipment, the enclosure to suit the location, and the installation to meet electrical code. The Newdeli 50 Amp Power Outlet Box combines a NEMA 6-50R receptacle with a covered enclosure rated at 250V and 50A. It is a practical option for compatible welders, plasma cutters, and some EV charging equipment, but the IP66 claim depends on using the proper waterproof connector and the circuit should be installed or checked by a qualified electrician.
Quick Verdict
Rating: 8/10, Recommended with caveats
Best For: Buyers who need an enclosed NEMA 6-50R connection for compatible 250V equipment in a garage, workshop, or properly prepared outdoor location.
Bottom Line: The Newdeli box gives you a 50A, 250V, 2-pole, 3-wire grounding receptacle in a covered enclosure with flexible wiring access. Its main limitation is that weather protection depends on correct installation, including the specified waterproof connector, and the listing’s wire-size note should not replace code-based circuit design.
| Specification | Detail |
|---|---|
| Brand | Newdeli |
| Model | 6-50R |
| Product type | Enclosed power outlet box |
| Receptacle | NEMA 6-50R |
| Electrical rating | 250V, 50A |
| Configuration | 2-pole, 3-wire grounding type |
| Material | Plastic |
| Color | Gray |
| Protection | IP66 when the reserved metric thread is paired with an M25/M32 waterproof connector |
| Cover | Weatherproof spring cover |
| Certification | ETL Listed |
| Typical listed uses | Compatible EV charging equipment, welders, plasma cutters, and other suitable high-power equipment |
Key Takeaways
- You get a NEMA 6-50R receptacle rated for 250V and 50A in a covered enclosure.
- The receptacle uses a 2-pole, 3-wire grounding configuration, so it does not provide a neutral conductor.
- The listing states IP66 protection when the reserved metric thread is used with an M25/M32 waterproof connector.
- Multiple wiring access options can make placement easier, including removable hole plugs and pre-marked rear positions.
- The box is marketed for indoor and outdoor use, but outdoor reliability depends on proper sealing, fittings, mounting, and code-compliant installation.
- A NEMA 6-50R is useful only when your equipment has the matching plug and electrical requirements.

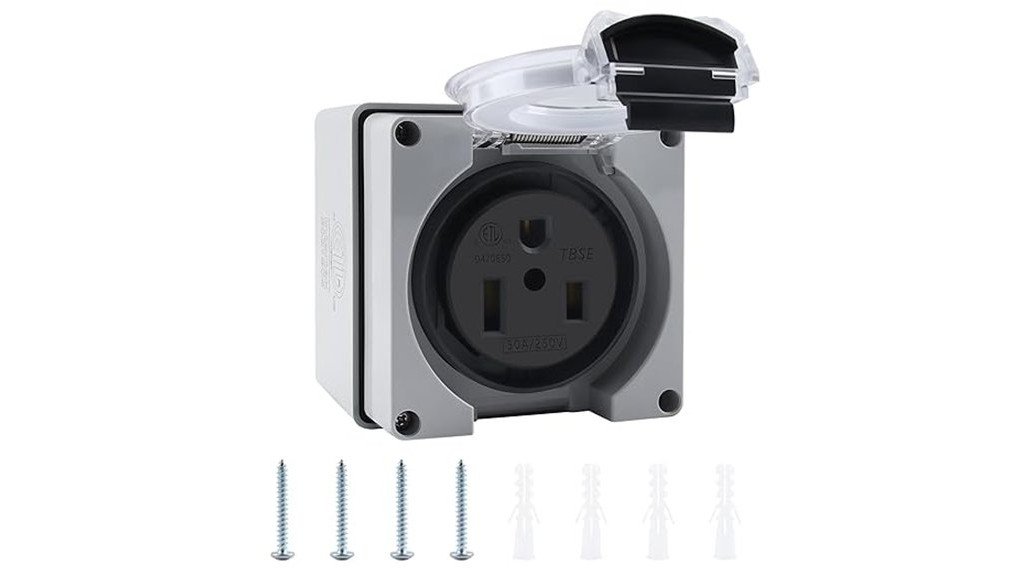

What Is the Newdeli 50 Amp Power Outlet Box?
The Newdeli model 6-50R is an enclosed 250V, 50A receptacle box. Instead of mounting a bare receptacle in a basic wall plate, you get the NEMA 6-50R connection inside a protective housing with a spring cover. That design is aimed at workshops, garages, and outdoor locations where the receptacle needs more protection from dust and water exposure.
The NEMA 6-50R format is common with certain welders and other 240V equipment. Some EV charging units also use a 6-50 plug, but you should confirm the exact EVSE plug, circuit requirements, and permitted installation method before buying. A 6-50R has two hot conductors plus equipment ground, not a neutral.
Who Should Buy It?
Best For
- You have a welder or plasma cutter with a matching NEMA 6-50 plug and compatible circuit requirements.
- You need an enclosed receptacle for a garage, workshop, or properly sealed outdoor installation.
- Your EV charging equipment specifically supports a NEMA 6-50 connection and the installation is approved for that use.
Skip If
- Your equipment needs a neutral conductor or a different plug such as NEMA 14-50.
- You want a lockable metal enclosure rather than the listed plastic box and spring-cover design.
- You are planning a 50A circuit without professional verification of breaker, conductor, grounding, GFCI, and local code requirements.
Build Quality and Weather Protection
The box uses a plastic enclosure and a weatherproof spring cover. The cover helps shield the receptacle when it is not in use, which is useful in a dusty shop or an exposed mounting location. The product is ETL Listed, adding a recognized safety certification to the basic electrical specifications.
The IP66 claim needs careful reading. The listing states that the reserved metric thread ensures IP66 protection when it is paired with the M25/M32 metric waterproof connector. In other words, the enclosure rating depends on the correct fitting and installation, not just the box by itself.
Before You Buy: Do not assume the box will remain IP66 after ordinary cable entry or improvised drilling. Use the fitting method specified for the enclosure, seal penetrations correctly, and follow the product instructions and local electrical code.
Electrical Compatibility
The receptacle is rated 250V and 50A with a 2-pole, 3-wire grounding configuration. That makes it a specialized high-voltage outlet, not a general-purpose receptacle. Your connected tool or charger needs a matching NEMA 6-50 plug and must be designed for the circuit voltage and available current.
The lack of a neutral matters. Equipment that needs both 120V and 240V functions may require a different receptacle, commonly a 4-wire configuration. Before ordering, check the plug on your welder, plasma cutter, EVSE, or other equipment instead of choosing by amperage alone.
Installation and Wiring Options
The enclosure provides multiple wiring access choices. You can use an existing opening by removing the hole plug, and the rear has pre-marked positions that can be opened with the appropriate tool when back wiring is needed. This gives an installer more flexibility when conduit or cable approaches from different directions.
The product listing mentions 8AWG or 10AWG wire as easier options for wiring. You should not treat that statement as universal conductor-sizing guidance for a 50A branch circuit. Required conductor size depends on the circuit rating, conductor material, insulation temperature rating, terminals, installation method, run conditions, local code, and the connected load.
High-amperage 240V work carries shock and fire risk. Turn power off at the source, verify the circuit is de-energized, and have a qualified electrician size and install the circuit if you are not trained for this work. The electrician should also confirm grounding, breaker protection, any required GFCI protection, enclosure sealing, and the equipment manufacturer’s instructions.
Pro Tip: Check the plug and nameplate on the equipment before the outlet box is installed. Matching the NEMA configuration first can prevent an expensive circuit from being built around the wrong receptacle.
How It Performs in Real Use
For Welders
A NEMA 6-50R is a familiar connection on many welding setups, so the Newdeli box can be convenient when your machine already uses a 6-50 plug. The covered enclosure is especially useful in a garage or fabrication area where grinding dust and general shop debris are common. Your welder’s input requirements still determine the correct circuit design.
For Plasma Cutters and High-Power Tools
The 250V, 50A receptacle can serve compatible plasma cutters and other equipment that uses the same plug configuration. The main advantage is not extra power beyond the circuit rating, but a dedicated enclosed connection with a protective cover. Confirm the tool’s voltage, plug, and breaker requirements before use.
For EV Charging Equipment
The product listing markets the box for electric vehicle charging, and some portable or wall-mounted EVSE units use NEMA 6-50 plugs. Compatibility is not automatic. Confirm that your EVSE specifically supports 6-50, that the receptacle and circuit are suitable for the continuous charging load, and that the installation meets current local electrical requirements.
For Outdoor or Semi-Exposed Locations
The spring cover and conditional IP66 design are useful when the receptacle is mounted outside or in a damp, dusty area. The protection depends on correct waterproof cable entry and a properly mounted enclosure. Inspect the cover, fittings, and seals periodically, especially after weather exposure or frequent plug cycles.
Common Mistakes to Avoid
- Buying by amperage alone: A 50A rating does not mean every 50A plug will fit. Confirm NEMA 6-50 compatibility.
- Assuming the receptacle has a neutral: NEMA 6-50 uses two poles plus equipment ground.
- Treating the IP66 label as automatic: The listing ties IP66 protection to the M25/M32 waterproof connector arrangement.
- Copying a wire-size note without checking code: Branch-circuit conductor sizing must be determined for the actual installation.
- Using it as a generator inlet: Do not backfeed a building through this receptacle. Generator connection to premises wiring requires approved inlet and transfer equipment.
Compatibility and Safety
Because this product handles high-amperage 250V power, installation quality is part of product performance. Loose terminals, undersized conductors, damaged plugs, poor weather sealing, or a mismatched breaker can create heat and shock hazards even when the outlet box itself is correctly rated.
Use the box only with equipment that matches the NEMA 6-50R configuration and follow the equipment maker’s instructions. For EV charging, welding, generator-related setups, or outdoor installations, a licensed electrician can confirm the circuit, protection devices, grounding, conductor sizing, enclosure fittings, and local code requirements.
Pros and Cons
Pros
- 250V, 50A NEMA 6-50R receptacle for compatible high-power equipment.
- ETL Listed.
- Weatherproof spring cover protects the receptacle when closed.
- IP66 protection is supported with the specified M25/M32 waterproof connector setup.
- Multiple wiring access options make surface or rear-entry layouts more flexible.
Cons
- No neutral conductor, so it will not work for equipment that needs a 4-wire connection.
- The IP66 claim depends on correct waterproof fitting and installation.
- The seller’s 8AWG/10AWG note is not enough to determine safe branch-circuit conductor size.
Is It Worth the Price?
The Newdeli box makes the most sense when you value an enclosed 6-50R setup rather than buying a receptacle, cover, and enclosure separately. Its useful features are the protected housing, spring cover, multiple wiring access points, ETL listing, and the conditional IP66 setup for more demanding locations.
Value depends heavily on your installation. It is worth considering if you already know that NEMA 6-50R is the correct connection for your equipment and you need a covered box. It is not the best fit if you need a neutral, a different NEMA format, or a lockable heavy-duty enclosure.
How It Compares to Alternatives
A Suplevel 50A NEMA 6-50R outlet box is worth comparing if you prefer a lockable enclosed design. The Newdeli model is a simpler covered box with a spring cover and conditional IP66 protection, so your choice comes down to enclosure style, installation needs, and the exact environmental protection you want.
For a more traditional flush-mount receptacle, the Leviton 5374 is an industrial-grade 50A, 250V NEMA 6-50R option, but it is a receptacle rather than a complete weatherproof box. Leviton’s instructions also state that model is not recommended for EV charging, so it is a better comparison for workshop equipment than for an EVSE installation.
Frequently Asked Questions
Is the Newdeli outlet box weatherproof for outdoor use?
It is marketed for indoor and outdoor use and has a weatherproof spring cover. The listing states IP66 protection when the reserved metric thread is paired with an M25/M32 waterproof connector, so correct cable entry and sealing matter.
Can you use this outlet for EV charging?
The listing includes EV charging among its intended applications, but your EVSE must specifically support a NEMA 6-50 connection. Have the circuit checked for the charger’s continuous load, breaker protection, grounding, GFCI requirements, and local code.
Does a NEMA 6-50R provide a neutral connection?
No. This is a 2-pole, 3-wire grounding receptacle, which means two current-carrying hot conductors plus equipment ground. If your equipment needs a neutral, this receptacle is not the correct configuration.
What wire size should you use with this outlet?
The product listing mentions 8AWG or 10AWG as convenient for wiring, but that is not enough to size a branch circuit safely. A qualified electrician should select conductors based on the actual breaker, load, conductor type, terminals, installation method, and local code.
Can you use it for welders and plasma cutters?
Yes, when the machine uses a NEMA 6-50 plug and its input requirements match the circuit. Check the equipment nameplate and manual before installation because not every welder or plasma cutter uses the same plug or breaker size.
What material is the outlet box made from?
The current Amazon product details list the enclosure material as plastic and the color as gray. If you specifically want a metal or lockable enclosure, compare other 6-50R boxes before buying.
Does the Newdeli 6-50R box have a stated warranty?
A clear warranty term was not confirmed in the product information reviewed for this update. Check the current Amazon listing or contact the seller or manufacturer before purchase if warranty coverage is important to you.
Who should skip this outlet box?
Skip it if your equipment needs a neutral, a different plug configuration, or a lockable metal enclosure. You should also avoid choosing the box until an electrician confirms the circuit design when you are unsure about 50A wiring or outdoor installation requirements.
The Bottom Line
The Newdeli 50 Amp Power Outlet Box is a solid choice when you need an enclosed NEMA 6-50R connection for compatible 250V equipment and you understand the installation requirements. Its strongest points are the 50A receptacle, spring cover, ETL listing, flexible wire-entry options, and conditional IP66 protection, while its main limitations are the lack of neutral and the need for careful code-compliant wiring and weather sealing.
Buy it when NEMA 6-50R is already the correct match for your welder, plasma cutter, or approved EV charging setup. Skip it when your equipment needs another receptacle format or when you want a lockable metal enclosure.
