A welding lens has to protect your eyes, fit your hood, and stay responsive at the amperage you use. The Tefuawe 2×4 1/4 Gold Automatic Welding Lens, model Gold 5813, is a thin variable-shade insert made for welders who want low-amp TIG capability and quick weld-to-grind control. Its strongest points are the 2-amp TIG rating, 0.19-inch profile, adjustable settings, and heat-reflective gold front. Long sessions can also build heat around the hood, which makes the reflective coating and steel frame relevant. The main limitation is clear: Tefuawe does not recommend relying on the hand-gesture feature outdoors.
Quick Verdict
Rating: 8.3/10, recommended with caveats
Best For: Indoor TIG, MIG, MMA, and plasma work in compatible 2 x 4-1/4-inch welding hoods
Bottom Line: The Gold 5813 combines a slim fit, low-amp TIG response, variable settings, and a gold-coated stainless-steel frame. Buy it for indoor multi-process work, but treat gesture control as an optional convenience rather than a feature you can depend on outdoors.
Key Specifications
| Specification | Detail |
|---|---|
| Brand | Tefuawe |
| Model | Gold 5813 |
| Manufacturer part number | Gold-5813 |
| ASIN | B0C3Z1BNPF |
| Product type | Variable-shade auto-darkening welding lens |
| Lens dimensions | 2 x 4.25 x 0.19 inches |
| Viewing area | 3.55 x 1.34 inches |
| Item weight | 4.2 ounces |
| Frame material | Stainless steel |
| Minimum TIG rating | 2 amps |
| Controls | Adjustable shade, sensitivity, and delay |
| Modes | Weld and grind with optional hand-gesture switching |
| Supported processes | TIG, MIG, MMA or stick, plasma, and grinding |
| Power note | Listing specifies one lithium-ion battery is required |
| Best use | Indoor welding where gesture control is less likely to be affected by outdoor conditions |

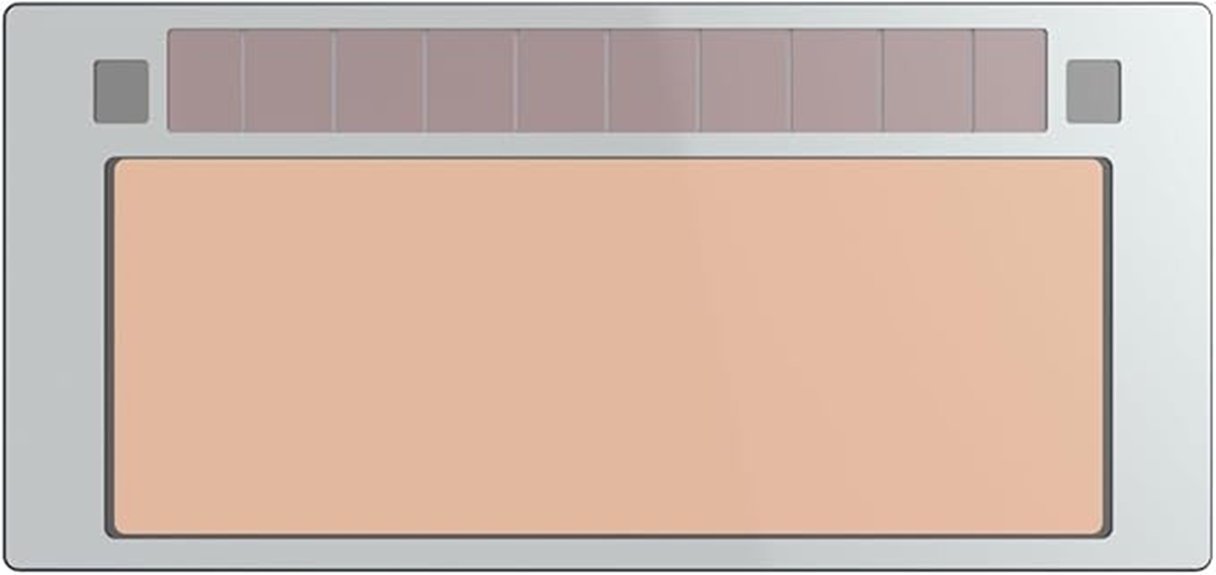

What Is the Tefuawe Gold 5813?
The Gold 5813 is a drop-in auto-darkening filter for welding helmets that accept the common 2 x 4-1/4-inch lens format. At 0.19 inches thick, it is designed to slide into many pipeliner, pancake, and shop-style hoods, including compatible helmets discussed in this 2 x 4-1/4 welding helmet review, without the slot modifications that thicker cartridges may require. You should still measure your hood opening and check clearance before ordering.
Tefuawe positions this model for TIG, MIG, MMA or stick welding, plasma work, and grinding. Its variable controls let you tune shade, sensitivity, and delay instead of working with one fixed setting. The hand-gesture function can move the lens between weld and grind modes without touching the hood, and you can turn that function off when it does not suit the job.
Key Takeaways
- The 2-amp minimum TIG rating is the main reason to consider this lens for low-current TIG work.
- The 2 x 4.25 x 0.19-inch size fits the standard format used by many pipeliner and compact welding hoods.
- Adjustable shade, sensitivity, and delay give you more control than a fixed-shade insert.
- Tefuawe states that the real gold coating rejects 99% of welding-arc UV and IR while reflecting radiant heat.
- The stainless-steel frame helps manage heat around the lens cartridge.
- Gesture switching is intended for indoor use and should be disabled when it becomes inconsistent.
Who Should Buy It?
Best For
- TIG welders who work at very low amperage and need a 2-amp-rated lens
- Multi-process welders who want adjustable settings in a standard 2 x 4-1/4-inch format
- Indoor shop users who can benefit from hands-free weld and grind switching
Skip If
- Your helmet does not accept a 2 x 4-1/4-inch drop-in lens
- You need gesture control to work reliably during outdoor welding
- You prefer the simplicity and optical feel of a fixed-shade passive lens
Before You Buy: This is a replacement filter lens, not a complete helmet. Confirm your hood accepts the 2 x 4-1/4-inch format, has enough clearance for the cartridge, and can hold the lens securely with the proper cover lenses.
Design, Fit, and Viewing Area
The Gold 5813 uses a stainless-steel frame and weighs 4.2 ounces. Its 0.19-inch thickness is a practical advantage in compact hoods because it reduces the chance that you will need to alter the lens slot. The listed viewing area is 3.55 x 1.34 inches, which is typical of a narrow 2 x 4-1/4-inch insert rather than a wide panoramic helmet.
The small format keeps the hood compact, but it also limits peripheral vision compared with larger auto-darkening cartridges. This tradeoff matters most when you move around large workpieces or need a broad view of the joint. For bench work, pipe welding, and focused TIG work, the narrower window can feel natural and easy to position.
Gold Coating and Heat Control
Tefuawe states that the real gold coating rejects 99% of UV and IR from the welding arc and reflects radiant heat. The stainless-steel frame is also designed to reflect infrared energy that can build heat around the cartridge. These features may help the lens stay cooler during long sessions, although your hood design, amperage, ventilation, and work position also affect heat around your face.
The gold front is not a substitute for choosing the correct shade. Use the adjustable shade control for the process and amperage you are running, and never go below the minimum protection required for the job. The gold treatment is best viewed as one part of the lens design, not permission to weld with an overly light setting.
Low-Amp TIG and Multi-Process Control
The 2-amp TIG rating is the product’s most useful performance claim. Auto-darkening lenses can flicker or fail to stay dark when the arc signal is weak, so a low minimum rating matters when you weld thin material, make delicate starts, or taper down at the end of a TIG weld. You still need to set sensitivity correctly and keep the sensors clear.
For MIG, MMA or stick, and plasma applications, the adjustable shade and delay controls let you match the lens response to a brighter arc and a different workflow. A longer delay may help when the weld remains bright after the arc stops, while a shorter delay can speed repeated tacks. Start conservatively, then adjust only after confirming that the lens darkens reliably.
Gesture Control and Grind Mode
The hand-gesture feature lets you switch between weld and grind modes without reaching for the controls. That can save time when you alternate between laying a bead and cleaning the joint. Tefuawe also lets you turn the gesture function off, which is useful when movement around the hood causes unwanted mode changes.
The product listing specifically says the gesture function is not recommended for outdoor use. Bright sunlight, reflections, changing backgrounds, and uncontrolled movement may affect consistency. For outdoor work, switch modes manually and confirm the lens is back in weld mode before striking an arc.
How It Performs in Real Use
For Low-Amp TIG
The 2-amp rating makes this lens most appealing for controlled TIG work where a higher-minimum lens might flicker. Set sensitivity high enough to detect the arc, keep the front clean, and test the response before starting on the finished part. The narrow viewing area can work well when your head remains close to a consistent torch angle.
For MIG and Stick in the Shop
Variable shade and delay controls help the Gold 5813 cover brighter MIG and stick arcs. Its standard format also makes sense for welders who prefer a compact pipeliner-style hood over a large shell. The smaller window demands more deliberate head movement than a wide-view helmet.
For Weld-and-Grind Cycles
Gesture switching is most useful at a stable indoor bench where lighting and movement are predictable. It can reduce how often you touch the lens controls with dirty gloves. Always verify the active mode before welding because grinding in a light state and striking an arc can expose your eyes to intense visible light.
For Outdoor Fabrication
The lens can still be used for outdoor welding, but the gesture feature is the weak point. Disable it and use the manual controls when sunlight or reflections make switching uncertain. Welders who spend most of their time outside may prefer a simpler control system with fewer motion-based features.
Setup and Usage Tips
- Check the hood size: Measure the filter opening and confirm it accepts a 2 x 4-1/4-inch lens before removing your current insert.
- Install cover lenses: Use compatible clear covers on the inside and outside when your hood design calls for them. Covers protect the auto-darkening filter from sparks, spatter, and scratches.
- Inspect the seal: Make sure the cartridge sits flat and cannot shift. Light should not leak around the non-lens areas of the hood.
- Start with a darker shade: Select a shade that is too dark to see the weld zone, then move lighter without going below the required minimum for the process.
- Test every mode: Confirm weld, grind, sensitivity, and delay settings before beginning production work.
- Disable gesture control outdoors: Manual switching is the safer choice when the environment makes motion detection inconsistent.
Pro Tip: Mark your preferred TIG and MIG settings on a small card near your welding station. You can return to a known starting point after changing shade, sensitivity, or delay for a different process.
Safety and Maintenance
A welding filter should be used only inside a compatible helmet or shield. OSHA guidance says welding helmets should be worn with suitable safety glasses or goggles, and the filter shade should match the welding process, arc current, electrode size, or material thickness. Review the OSHA eye and face protection guidance and follow your employer’s safety program.
Before each use, inspect the lens, covers, frame, and retaining system. Replace cracked, deeply scratched, loose, or heat-damaged parts. Clean the covers with a soft lint-free cloth and a cleaner approved for the material. Do not use harsh solvents, abrasive pads, or direct grinding debris on the filter surface.
The Amazon listing states that this model is produced in accordance with CE EN379 and ANSI Z87.1. Treat that as a manufacturer claim and check the markings, manual, and current product documentation when certification is required for your workplace. Warranty terms are not clearly stated on the listing, so confirm support with the seller before purchase if coverage is important.
Pros and Cons
Pros
- 2-amp minimum TIG rating suits low-current work
- 0.19-inch thickness fits many standard compact hoods
- Adjustable shade, sensitivity, and delay support several welding processes
- Gesture control can speed indoor weld-to-grind changes
- Gold coating and stainless-steel frame are designed to reflect radiant heat
Cons
- Gesture control is not recommended for outdoor use
- Narrow viewing area provides less peripheral vision than large-format helmets
- Warranty and scratch-resistance details are not clearly stated on the listing
Is It Worth the Price?
The Gold 5813 makes the most sense as a feature-focused upgrade rather than a basic replacement lens. You are paying for low-amp TIG response, variable controls, a gold-coated front, a slim cartridge, and hands-free mode switching. That combination can be strong value for an indoor multi-process welder who would otherwise need separate fixed-shade and auto-darkening options.
It is less compelling if you weld outdoors every day, want a much wider field of view, or prefer a simple fixed shade. Because pricing changes by seller, compare the current cost with established 2 x 4-1/4-inch alternatives and verify return and support terms before ordering.
How It Compares to Alternatives
The Lincoln Electric C-Series KP3775-1 is worth comparing if you want a well-known brand and a variable shade 8-13 lens. The ArcOne T240-10 is a simpler fixed-shade option for welders who do not need adjustable controls, while the TrueArc Gold shade 10 lens targets buyers who prefer a fixed gold filter.
The Tefuawe Gold 5813 stands out when you want a 2-amp TIG rating, adjustable settings, and an optional gesture-controlled grind mode in one slim 2 x 4-1/4-inch cartridge. A fixed lens may still provide the simpler workflow and viewing character some pipe and stick welders prefer.
Frequently Asked Questions
Will the Tefuawe Gold 5813 fit my welding helmet?
It is sized for helmets that accept a 2 x 4-1/4-inch drop-in lens, and the cartridge is 0.19 inches thick. Measure the opening, check the retaining system, and confirm there is room for the cartridge before ordering.
Can it handle low-amperage TIG welding?
The listing gives the lens a 2-amp minimum TIG rating, which is its main advantage for low-current work. Set sensitivity correctly, keep the sensors clear, and test for stable darkening before welding a finished part.
Does the hand-gesture feature work outdoors?
Tefuawe does not recommend the gesture function for outdoor use. Disable it and switch modes manually when sunlight, reflections, or movement make detection inconsistent.
Is this a complete welding helmet?
No. It is an auto-darkening filter lens that must be installed in a compatible welding hood with the correct retaining parts and cover lenses.
How should I protect the lens from scratches and spatter?
Use compatible inside and outside clear cover lenses when your hood requires them. Replace damaged covers promptly and clean them with a soft cloth instead of abrasive pads or harsh solvents.
What settings can I adjust?
The product listing identifies adjustable shade, sensitivity, and delay controls. Start with protective settings for the process, then make small changes only after confirming consistent darkening.
What warranty does the Gold 5813 include?
The Amazon page provides a link for warranty information but does not clearly state the coverage terms in the visible listing. Confirm the current warranty and seller support before purchase if coverage is a deciding factor.
Who should skip this lens?
Skip it if your hood uses a different lens size, you need a wide panoramic view, or your work depends on gesture control outdoors. A fixed-shade lens may also suit you better when you value simplicity over adjustable features.
The Bottom Line
The Tefuawe Gold 5813 is a strong fit for indoor welders who need low-amp TIG response, variable controls, and a slim 2 x 4-1/4-inch cartridge. Skip it if you need a wide field of view or dependable outdoor gesture switching. Its best feature is the flexible 2-amp multi-process design, while its main tradeoff is the outdoor limitation of the gesture system.
