A larger TIG cup can give you broader shielding coverage, but only if the cup, diffuser, and torch family all match. The WeldingStop #12 TIG Welding Cup set pairs two pink alumina ceramic #12 cups with matching 3/32-inch diffusers for WP-9, WP-20, and WP-25 series TIG torches. Its main appeal is a wide 3/4-inch (19 mm) cup opening and a simple two-pack format for welders who want a spare on hand. The key limitation is compatibility: this specific set is listed for the WP-9/20/25 family, so you should confirm your torch and consumable setup before ordering.
Quick Verdict
Rating: 8/10 editorial rating
Best For: TIG welders using WP-9, WP-20, or WP-25 torches who want a #12 ceramic cup with a 3/32-inch diffuser.
Bottom Line: This is a practical two-pack with a heat-resistant alumina ceramic design and a wide #12 cup size. It is less useful if your torch uses a different consumable family or you need a clear cup for maximum joint visibility.
Key Takeaways
- The verified matching product is a WeldingStop two-pack of pink #12 alumina ceramic TIG cups.
- A #12 cup has a 3/4-inch (19 mm) opening. The 3/32-inch (2.4 mm) measurement refers to the matching diffuser setup, not the cup diameter.
- The set is listed for WP-9, WP-20, and WP-25 series TIG torches.
- The ceramic construction is designed to handle TIG welding heat while keeping the nozzle electrically insulating.
- This kit makes the most sense when you already know that a #12 cup and 3/32-inch diffuser match your torch and tungsten setup.
| Specification | Detail |
|---|---|
| Brand | WeldingStop |
| Product type | TIG welding ceramic cup and diffuser set |
| Package | 2 pink #12 cups with matching diffusers |
| Cup size | #12 |
| Cup diameter | 3/4 in (19 mm) |
| Diffuser size | 3/32 in (2.4 mm) |
| Material | High-purity alumina ceramic cup |
| Color | Pink |
| Compatibility | WP-9, WP-20, and WP-25 series TIG torches |
| Best use | General TIG fabrication where a larger #12 cup and compatible diffuser are appropriate |
What Is the WeldingStop #12 TIG Welding Cup?

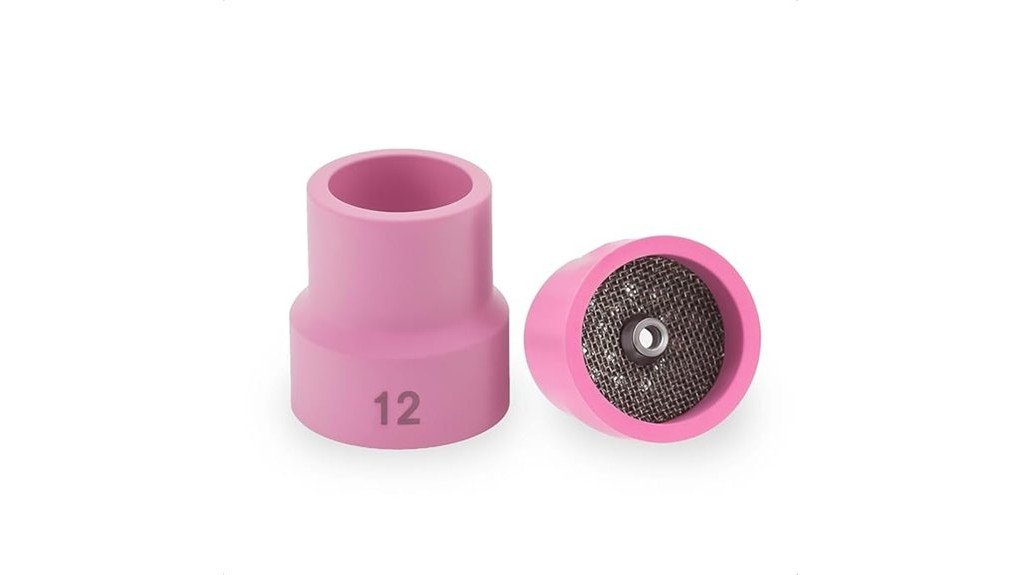

The WeldingStop #12 TIG Welding Cup is a replacement consumable set for compatible TIG torches. Each set includes two pink #12 alumina ceramic cups and matching 3/32-inch diffusers. The #12 designation refers to the cup opening, which is 3/4 inch or 19 mm across.
A larger cup can spread shielding gas over a wider area than smaller common cup sizes. That can be useful when your joint geometry, tungsten stickout, or weld material benefits from broader shielding. The included diffuser is intended to support stable gas coverage, but your results still depend on gas flow, torch setup, joint shape, and technique.
Before You Buy: Do not confuse the 3/32-inch diffuser size with the cup diameter. This is a #12 cup with a 3/4-inch (19 mm) opening, and the set is listed for WP-9, WP-20, and WP-25 torch families.
Who Should Buy It?
Best For
- You use a WP-9, WP-20, or WP-25 series TIG torch.
- You specifically want a wider #12 ceramic cup for broader shielding coverage.
- You use a compatible 3/32-inch diffuser setup and value having a spare cup in the package.
Skip If
- Your torch uses a different cup or gas-lens family.
- You need a transparent cup for direct visibility around the weld pool.
- You have not confirmed that a #12 cup suits your gas coverage and joint access needs.
Material Quality and Durability
The cups are made from high-purity alumina ceramic. That material is commonly used for TIG nozzles because it tolerates high temperatures and provides electrical insulation around the torch end. For you, the practical benefit is a rigid, heat-resistant nozzle that can handle repeated welding cycles when it is not cracked, dropped, or overheated.
Ceramic remains brittle compared with metal. A hard impact on a bench or floor can chip the edge or create a crack that affects gas flow. The two-pack helps here because you can keep one clean spare in your torch kit instead of stopping work when a cup is damaged.
Compatibility With TIG Welding Torches
This set is listed for WP-9, WP-20, and WP-25 series TIG torches. That compatibility is one of the most important buying checks because cups, gas lenses, diffusers, collets, and torch bodies are not universal across every TIG torch family.
The matching listing also describes the 3/32-inch diffuser as part of the set. If your current setup uses another tungsten or diffuser size, verify the consumable stack before ordering rather than assuming the #12 cup alone will make everything fit.
Pro Tip: Check the model stamped on your TIG torch and compare your current cup, gas lens, diffuser, collet, and tungsten size before buying. Matching the whole consumable family is more reliable than choosing by cup number alone.
Installation Process and Ease of Use
Installation is straightforward when your torch already uses the compatible WP-9/20/25 consumable family. Let the torch cool fully, remove the existing cup, inspect the diffuser and related consumables, and install the new parts without forcing the ceramic threads or connections.
Once assembled, check that the cup sits straight and that the torch has no obvious gas leaks. Avoid overtightening ceramic parts. Follow your torch and welder manuals for the correct consumable order, shielding-gas settings, and tungsten setup.
Design Features and Cup Size
The pink color makes the cup easy to spot in a tool drawer, but the more important design feature is its #12 size. A #12 cup has a 3/4-inch opening, giving you more coverage area than smaller #6 or #8 cups. That can help when you need shielding around a wider weld zone, but the larger body may be less convenient in tight corners.
The cup is opaque ceramic, so you cannot see through it the way you can with a clear Pyrex-style cup. If direct visibility around the joint is your top priority, that is a meaningful tradeoff.
Performance in High-Temperature Applications
Alumina ceramic is chosen for TIG cups because it handles heat well while maintaining its shape and insulation. That makes this set suitable for routine TIG fabrication where a #12 cup is appropriate. Still, no ceramic cup is immune to thermal shock, physical impact, or contamination.
For consistent results, inspect the cup edge and interior before each job. A chipped cup or heavy contamination can disturb shielding flow and is a better reason to replace the part than simple cosmetic discoloration.
Gas Output Stability and Efficiency
The included diffuser is the part of this kit that matters most for gas distribution. Its job is to help spread shielding gas before it exits the #12 cup, supporting more even coverage around the tungsten and weld pool. The wide cup can then carry that coverage over a larger area.
You should not treat a larger cup as a reason to guess at gas flow. Too little gas can leave the weld unprotected, while excessive flow can create turbulence and pull air into the shielding envelope. Use settings appropriate for your torch, material, joint, and shop conditions.
How It Performs in Real Use
For General Fabrication
The #12 opening can be useful when you want broader gas coverage over steel, stainless, aluminum, or other TIG-welded materials supported by your process. The ceramic construction is a familiar, durable choice for everyday shop work.
For Tight Joints
The larger cup body can become a limitation when access is restricted. In a tight fillet, inside corner, or confined fixture, a smaller cup may give you better torch positioning even if it provides less coverage area.
For Longer Sessions
Having two cups in the package is practical for longer jobs because you can keep a spare ready. If one cup cracks, chips, or becomes contaminated, you do not have to clean or replace it before continuing.
For Mobile or Field Kits
The two-pack is also useful in a portable TIG kit. Ceramic cups are small but fragile, so keeping the spare protected in a divided case can prevent damage during transport.
How to Use It Correctly
- Confirm your torch is in the WP-9, WP-20, or WP-25 family before installation.
- Match the diffuser and tungsten setup rather than relying only on the cup number.
- Inspect the cup for cracks, chips, and heavy contamination before welding.
- Use the shielding-gas flow recommended for your process and conditions instead of increasing flow automatically because the cup is larger.
- Keep the cup clear of direct impacts and let hot ceramic cool naturally before handling or storage.
Compatibility and Safety
TIG shielding gases can displace oxygen, so use suitable ventilation and follow the safety guidance for your welding machine, gas cylinder, torch, and material. Wear the proper welding PPE for the process and never handle the ceramic cup immediately after welding unless you have confirmed it has cooled.
Compatibility is also a safety and performance issue. A loose, damaged, or mismatched consumable stack can contribute to gas leaks or unstable shielding. If you are unsure about your torch parts, check the torch manufacturer’s consumables chart before use.
Pros and Cons
Pros
- Verified #12 cup size with a 3/4-inch (19 mm) opening.
- High-purity alumina ceramic construction provides heat resistance and insulation.
- Includes matching 3/32-inch diffusers.
- Two-pack gives you a ready spare.
- Listed for common WP-9, WP-20, and WP-25 TIG torch families.
Cons
- Limited to the listed torch families and compatible consumable setup.
- The larger #12 cup can be awkward in tight access areas.
- Opaque ceramic does not provide the visibility of a clear cup.
Maintenance and Care Tips
Keep the cup interior clean and inspect it regularly for cracks, chips, or stubborn contamination. If debris can be removed safely without damaging the ceramic or diffuser, clean the parts according to the torch or consumable maker’s guidance. Do not use a damaged cup simply because it still threads onto the torch.
For storage, keep both cups in a small compartment or protective container so they do not strike metal tools. Ceramic can handle welding heat, but it does not handle drops and impacts well.
Is It Worth the Price?
This set can offer strong value for the price if you already use a compatible WP-9, WP-20, or WP-25 torch and specifically need a #12 cup with a 3/32-inch diffuser. You get two cups instead of a single replacement, which is useful for a shop kit or mobile setup.
Value drops quickly if you have to buy extra adapters or different consumables to make the set work. It is also not the best fit if most of your work is in tight spaces where a smaller cup is easier to position.
How It Compares to Alternatives
If you want a more specialized large-cup setup, the Furick Cup Dual FUPA #12 kit is worth comparing because it uses a titanium diffuser design. The Arc-Zone Monster #12 is another large-cup option with diffuser choices for different electrode diameters. Those alternatives target welders who want more specialized gas-lens performance.
The WeldingStop set is simpler: two pink alumina ceramic #12 cups with matching 3/32-inch diffusers for WP-9/20/25 torches. It makes the most sense when straightforward replacement parts and a spare cup matter more than a premium clear or specialty diffuser system.
Frequently Asked Questions
What does #12 mean on this TIG cup?
The #12 designation refers to the cup opening size. For this product, the opening is 3/4 inch, or 19 mm.
Is the cup itself 3/32 inch?
No. The cup is #12, with a 3/4-inch opening. The 3/32-inch measurement applies to the matching diffuser setup.
Which TIG torches does this set fit?
The matching product listing specifies WP-9, WP-20, and WP-25 series TIG torches. Confirm your exact torch and consumable stack before buying.
Can these cups be used for other welding processes?
They are TIG torch consumables, so you should not treat them as general nozzles for MIG, stick, or other welding processes. Use them only with a compatible TIG torch and consumable setup.
How do I know when to replace the TIG cup?
Replace it if you see cracks, chips, deformation, or contamination that you cannot remove safely. Damage around the opening can disturb gas coverage and make the cup less dependable.
Are there any color options available for these cups?
The verified matching set is pink. Other color variants were not confirmed for this exact set, so check the current listing if color matters to you.
What is the warranty period for these welding cups?
A specific warranty term was not confirmed during verification. Check the current Amazon listing or seller terms before purchase if warranty coverage matters to you.
Can these cups withstand high-temperature welding environments?
The alumina ceramic is made for TIG welding heat, but it can still crack from impact, thermal shock, or misuse. Inspect the cup regularly and replace damaged parts before welding.
The Bottom Line
The WeldingStop #12 TIG Welding Cup set is a solid match for welders who use WP-9, WP-20, or WP-25 torches and want a wide 3/4-inch ceramic cup with a matching 3/32-inch diffuser. Its main strengths are simple compatibility, heat-resistant alumina ceramic, and a two-pack format, while the main tradeoffs are its larger physical size and opaque ceramic design. Skip it if your torch uses another consumable family or you need a clear cup for maximum joint visibility.
