Replacing a worn MIG gun is not just about matching amperage. You also need the correct connection, cable length, wire range, and consumable setup for your welder. The YesRight 15ft 250 Amp MIG Welding Gun, model YESR-MIGWG250A-M25, is designed as an M-25-style replacement for several Miller Millermatic machines, with a 15-foot lead and support for .030 to .045-inch wire. It gives you useful reach and a familiar curved handle, but its fit is specific enough that you should confirm your machine and gun connection before ordering.
Quick Verdict
Rating: 8/10, Recommended with caveats
Best For: Owners of compatible Miller Millermatic welders who want a 15-foot, 250A M-25-style replacement gun.
Bottom Line: The long cable, .030-.045-inch wire range, replaceable front-end consumables, and reinforced copper-and-rubber cable make this a practical replacement option. The main tradeoff is compatibility, because you should not assume it will fit every Miller machine or every current gun system.
Key Specifications
| Specification | Detail |
|---|---|
| Brand | YesRight |
| Model / Style | YESR-MIGWG250A-M25 |
| Product type | Replacement MIG welding gun / stinger torch |
| Rated output | 250A |
| Cable length | 15 ft / about 4.5 m |
| Wire range | .030-.045 in / 0.8-1.2 mm |
| Listed welder compatibility | Millermatic 200, 210, 212, 250, 250X, 251, 252, and Vintage |
| Replacement targets | GA-20C, GA-21C, and M-25 169598-style guns |
| Materials listed | Copper and rubber |
| Item weight | 7.26 lb |
| Package dimensions | 16.54 x 13.58 x 2.95 in |
| Color | Red |
| Included component | MIG welding gun |
Key Takeaways
- The 15-foot lead gives you more room to work around vehicles, benches, farm equipment, and larger fabrication projects.
- The gun is rated at 250A and supports .030 to .045-inch welding wire according to the listing.
- It is listed for specific Miller Millermatic models and as a replacement for GA-20C, GA-21C, and M-25 169598-style guns.
- The cable uses copper conductors inside a flexible high-pressure rubber tube designed to resist oil, aging, and corrosion.
- The nozzle and contact tip are replaceable, which helps with routine maintenance when front-end consumables wear or collect spatter.

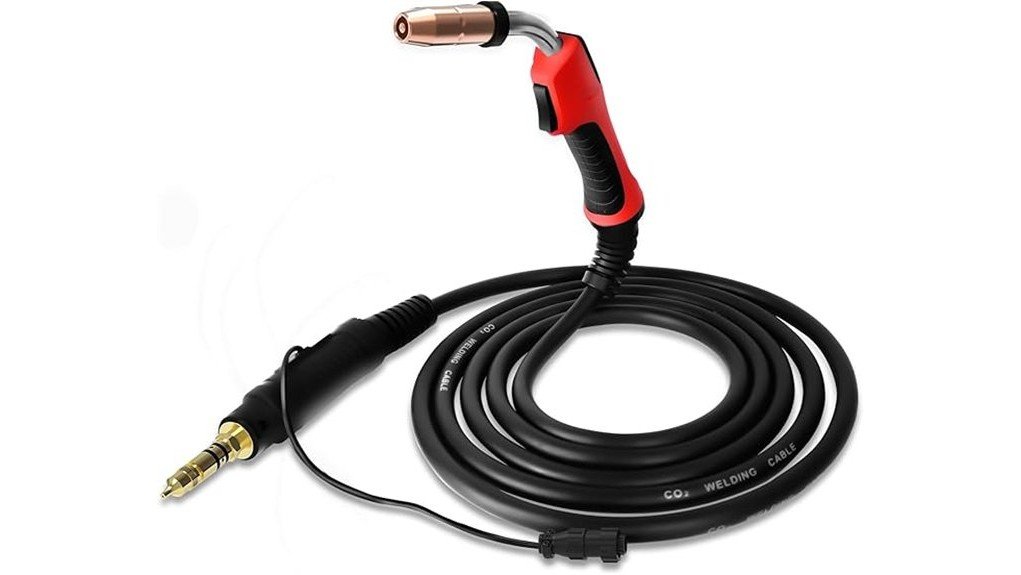

What Is the YesRight 15ft 250 Amp MIG Welding Gun?
This is a replacement MIG gun built for welders who already own a compatible Miller machine and need a longer M-25-style torch. The selected Amazon style is YESR-MIGWG250A-M25, not the separate K533-style variation, so the connection type matters when you choose the correct version.
The main selling point is the combination of a 15-foot cable, 250A rating, and support for .030-.045-inch wire. The curved handle and trigger are intended to give you straightforward control, while the cable construction is designed to stay flexible during normal shop movement.
Before You Buy: Match the gun to your exact welder and existing connection. The M-25-style version in this review is not a universal Miller replacement, and newer machines or updated gun systems may use different front-end parts or connectors.
Who Should Buy It?
Best For
- You own one of the listed Millermatic models and need an M-25-style replacement.
- You want a 15-foot lead for shop, farm, automotive, or repair work.
- You commonly run wire in the .030 to .045-inch range.
Skip If
- Your welder uses a different gun connection or a newer MDX consumable system that you want to keep unchanged.
- You need a lightweight short lead for close bench work and do not benefit from 15 feet of cable.
- Your main goal is aluminum welding and your machine is better served by a spool gun or push-pull setup.
Key Features of the 15ft 250 Amp MIG Welding Gun
Fit and Compatibility
The listing names Millermatic 200, 210, 212, 250, 250X, 251, 252, and Vintage as compatible machines. It also positions the gun as a replacement for GA-20C, GA-21C, and M-25 169598 guns. That gives you a useful starting point, but model name alone should not be your only check.
Before ordering, compare your current gun number, machine connection, trigger lead, and consumable style. A correct mechanical and electrical fit matters more than choosing a gun simply because the amperage is similar.
15-Foot Reach and Handling
A 15-foot cable gives you room to move around a workpiece without repositioning the welder as often. That can be useful when welding on a vehicle, trailer, gate, workbench assembly, or farm equipment where access changes from one joint to the next.
The tradeoff is bulk. The complete gun is listed at 7.26 pounds, and a longer cable can feel less convenient than a shorter lead when you are working in one small area. Good cable routing helps keep the extra length from dragging across sharp edges or hot metal.
Copper Cable and Rubber Outer Tube
The listing describes an enhanced copper cable inside a high-pressure rubber tube. The rubber is intended to remain flexible without kinking and to resist oil, aging, and corrosion, while a spring section is designed to handle repeated bending and pulling.
For you, that matters most at common stress points near the gun handle and machine connection. Even with reinforced construction, avoid pulling the welder by the gun cable or storing the lead in tight bends.
Wire Range and Consumables
The stated wire range is .030 to .045 inch (0.8 to 1.2 mm). That covers common MIG wire sizes used for general fabrication and repair work, provided your welder, drive rolls, liner, contact tip, shielding setup, and settings are also correct for the wire you choose.
The nozzle and contact tip are designed to be replaceable. That is important because these front-end parts are normal wear items and can affect wire feeding, electrical transfer, shielding coverage, and arc consistency when they become damaged or heavily coated with spatter.
Curved Handle and Trigger
The gun uses a curved handle and a straightforward trigger mechanism. The shape can make the torch easier to hold at different angles, especially when you need to rotate your wrist around corners or tack parts from several positions.
Comfort is still personal. A 15-foot 250A gun has more cable mass than a compact light-duty torch, so you may notice fatigue during long sessions even if the handle itself feels comfortable.
How It Performs in Real Use
For Garage and Fabrication Work
For tables, brackets, frames, and general steel fabrication, the longer lead can reduce how often you stop to move the machine. The .030-.045-inch wire range also gives you flexibility across different jobs, as long as your machine settings and consumables match the material and wire.
For Automotive and Equipment Repairs
When you are moving around a vehicle, trailer, or piece of equipment, 15 feet of cable can make awkward access easier. The best benefit is reach, not extra welding power. Your machine still determines the available output and the material thickness you can weld correctly.
For Farm and Shop Maintenance
The listing specifically positions the gun for home, farm, shop, repair, and maintenance work. The oil-resistant rubber outer tube is useful in those environments, but you should still keep the cable away from hot workpieces, sharp corners, moving machinery, and areas where it can be crushed.
For Long Welding Sessions
The curved handle can help with grip, but the full 15-foot assembly is not a featherweight tool. If you weld for long periods, support the cable so its full weight is not pulling on your wrist. This can make the gun feel more controlled and can reduce strain on the cable connection.
Pro Tip: Lay the cable in a wide, relaxed curve before you start welding. Avoid tight coils and sharp bends, because a straighter wire path can help reduce feed resistance and unnecessary strain on the liner and cable.
Setup Tips Before First Use
- Confirm the connection first: Compare the replacement gun with your existing M-25-style gun and welder connection before fully installing it.
- Match consumables to wire size: Use the correct contact tip, liner, and drive-roll setup for the wire diameter you plan to run.
- Route the cable gently: Keep the 15-foot lead as straight as practical and avoid tight loops that can increase wire-feed resistance.
- Inspect the nozzle and tip: Make sure front-end consumables are clean, seated correctly, and not damaged before welding.
- Follow your welder manual: Set voltage, wire-feed speed, polarity, shielding gas, and drive-roll pressure for your machine, wire, and material.
Compatibility and Safety
A MIG gun carries welding current, wire, and shielding-gas flow at the work end, so correct installation matters. Turn the welder off and disconnect input power before installing, removing, or servicing the gun unless your machine manual gives a different safe procedure.
Use normal welding PPE, including an appropriate welding helmet, gloves, protective clothing, and eye protection. Keep the cable away from hot metal and inspect the insulation, trigger lead, connector, nozzle, and contact tip for damage before use.
How to Keep Your MIG Welding Gun in Top Shape
Routine maintenance focuses on the wire path and front-end consumables. Check the nozzle for heavy spatter, inspect the contact tip for wear or an enlarged opening, and replace damaged parts instead of trying to work around poor feeding or an unstable arc.
Also inspect the cable jacket for cuts, crushing, burn marks, or sharp bends. Store the gun in a loose coil, not a tight loop, and avoid using the lead as a handle for moving the welder.
Pros and Cons
Pros
- 15-foot cable gives you useful reach around larger workpieces.
- 250A rating suits the intended replacement class.
- Supports .030-.045-inch wire according to the listing.
- Copper and rubber cable construction is designed for flexibility and durability.
- Replaceable nozzle and contact tip simplify routine front-end maintenance.
Cons
- Compatibility is limited to the correct Miller/M-25-style setup, so you need to verify fit before buying.
- The 15-foot assembly can feel bulky for close bench work.
- It is not the best default choice for aluminum feeding when a spool gun or push-pull system is more appropriate.
Is It Worth the Price?
This YesRight gun makes the most sense as a value-focused replacement when you already know you need an M-25-style 15-foot 250A gun. You are paying for reach, compatibility with the listed machines, a broad common wire range, and replaceable front-end parts rather than premium brand-specific extras.
It is worth considering if the verified fit matches your welder and you want to avoid the cost of an OEM gun. It is not the best fit if you want current Miller MDX consumables, need a different connector, or prefer a shorter and lighter lead.
How It Compares to Alternatives
Miller’s current cross-reference for older M-Series guns points M-25 users toward the MDX-250 family. For a 15-foot setup, Miller lists MDX-250 part 1770037 for .030-.035-inch wire and part 1770038 for .035-.045-inch wire on supported machines. Those OEM options may be better if you want the current Miller consumable system and factory-documented cross-reference.
The YesRight gun is more attractive when you specifically want an M-25-style aftermarket replacement that keeps the older connection approach. Before choosing between them, compare your machine, existing gun number, desired wire size, and the consumables you already stock.
Frequently Asked Questions
Which Miller welders is this gun listed to fit?
The listing names Millermatic 200, 210, 212, 250, 250X, 251, 252, and Vintage. It is also described as a replacement for GA-20C, GA-21C, and M-25 169598 guns, but you should still compare the connection and your existing gun before ordering.
What wire sizes does it support?
The product listing states .030-.045-inch, or 0.8-1.2 mm, welding wire. Your liner, contact tip, drive rolls, machine settings, and shielding setup also need to match the wire you choose.
Is the 15-foot cable better than a shorter gun?
It is better when you need reach around large projects or cannot move the welder easily. A shorter gun can feel lighter and simpler for compact bench work, so extra length is useful only when your work area benefits from it.
Can you use this MIG gun for aluminum?
This gun is not the safest default recommendation for feeding soft aluminum wire through a long conventional liner. If aluminum is your main job, check your welder manual for a compatible spool gun or push-pull option and use the correct wire, liner, tip, gas, and settings.
What maintenance does the gun need?
Keep the nozzle reasonably free of spatter, replace worn contact tips, and inspect the cable and connector for heat or physical damage. Store the lead in broad loops and avoid pulling the welder by the gun cable.
What warranty comes with this welding gun?
The product details we verified do not state a specific manufacturer warranty term. Check the current Amazon listing and seller or manufacturer support information before purchase if warranty coverage is important to you.
Who should skip this gun?
Skip it if your welder does not use the listed M-25-style connection, if you specifically want a current MDX setup, or if a shorter cable better matches your work area. You should also choose a machine-approved aluminum feeding solution if aluminum is your main use.
The Bottom Line
The YesRight 15ft 250 Amp MIG Welding Gun is a practical choice when you own a listed Miller machine and want an M-25-style replacement with more reach. Its strongest points are the 15-foot cable, 250A class, .030-.045-inch wire range, and serviceable front end, while compatibility and cable bulk are the main reasons to check your setup carefully before buying.
