Choosing a TIG welder gets harder when you want AC aluminum capability, pulse control, and stick welding without moving into a large professional machine. The HITBOX TIG Welder HBT250P combines AC/DC TIG, pulse functions, adjustable AC controls, and MMA/Stick welding in one inverter-based unit. Its control range makes it appealing for hobby fabrication, repair work, and skill building, but the many settings create a steeper learning curve than a basic TIG machine. This review focuses on the HBT250P’s verified capabilities, important variant differences, safety points, and the buyers who are most likely to get good value from it.
Quick Verdict
Rating: 8/10
Best For: Hobbyists, makers, small fabricators, and home-shop welders who want AC/DC TIG plus pulse and stick capability.
Bottom Line: The HBT250P gives you a broad set of TIG controls, including AC balance, AC frequency, pulse, and 2T/4T operation, with a verified TIG output range up to 200A. The tradeoff is setup complexity, plus voltage, weight, bundle, and warranty details that can vary by version and seller.
Key Specifications
| Specification | Detail |
|---|---|
| Brand | HITBOX |
| Model | HBT250P AC/DC |
| Product type | Inverter AC/DC TIG and MMA/Stick welder |
| TIG output range | 10-200A on HITBOX’s current specification table |
| MMA/Stick output range | 20-180A on HITBOX’s current specification table |
| Current type | AC/DC |
| Rated duty cycle | 60% |
| Input voltage | 220V standard version; HITBOX also lists a 110/220V dual-voltage variant |
| Dimensions | 29.7 × 11.5 × 19.8 cm |
| Controls | Pulse, AC frequency, AC balance, 2T/4T, adjustable TIG parameters |
| Protection | VRD, overvoltage, overcurrent, overload, and overheat protection |
| Weldable metals listed by HITBOX | Aluminum, stainless steel, copper, titanium, magnesium alloy, and carbon steel |
| Foot pedal | Compatible, but inclusion depends on the selected bundle |

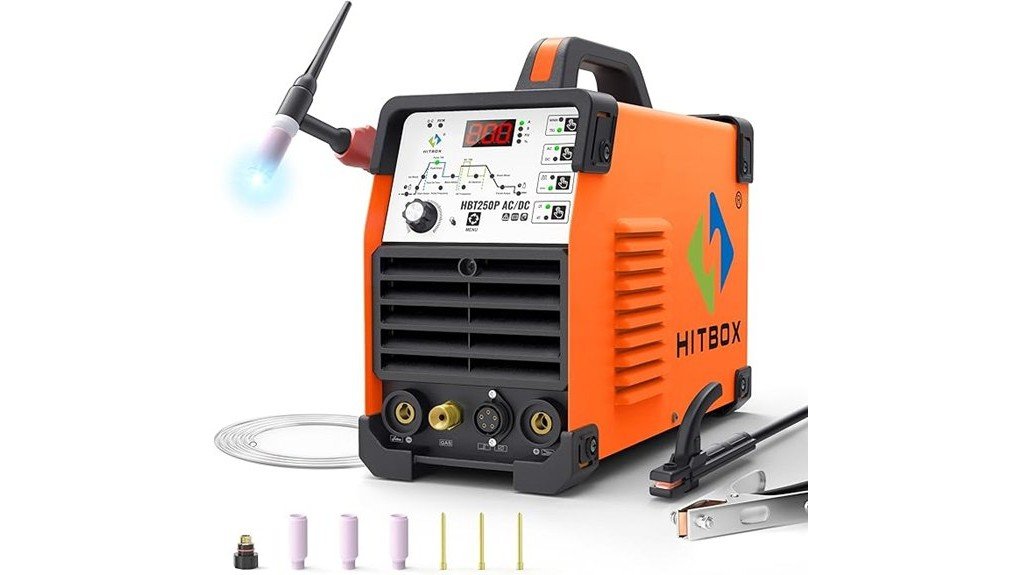

What Is the HITBOX HBT250P?
The HBT250P is an inverter-based AC/DC TIG and Stick welding power source aimed at people who want more control than a simple entry-level TIG unit provides. Its biggest advantage is the ability to use AC TIG for aluminum and DC TIG for steels and other suitable metals, while still keeping MMA/Stick available for repair and general fabrication work.
HITBOX gives the machine adjustable AC frequency and AC balance, pulse controls, 2T/4T torch modes, and a digital control interface. Those settings let you change arc behavior, heat input, cleaning action, and trigger operation instead of relying on one fixed welding profile. That flexibility is useful as your technique improves, but it also means you need to understand the controls before expecting consistent results.
Key Takeaways
- The HBT250P is a 200A-class AC/DC TIG welder, not a verified 250A TIG-output machine.
- AC TIG makes it suitable for aluminum, while DC TIG covers steel, stainless steel, and other listed metals.
- Pulse, AC frequency, AC balance, and 2T/4T modes give you more control over heat and arc behavior.
- HITBOX lists both 220V-only and 110/220V variants, so you should confirm the exact version before ordering.
- Foot-pedal compatibility is useful for TIG work, but the pedal may be optional depending on the bundle.
- The control depth is a strength for experienced users and a learning challenge for first-time TIG welders.
Who Should Buy It?
Best For
- Home-shop welders who need AC TIG for aluminum and DC TIG for steel or stainless.
- Hobbyists and small fabricators who want pulse and adjustable AC controls without buying separate TIG and Stick machines.
- Users who are willing to learn parameter setup and want room to improve their TIG technique.
Skip If
- You want the simplest possible TIG interface with minimal parameter adjustment.
- You need a guaranteed 120V-capable machine without checking the exact voltage variant first.
- You require clearly standardized accessory and warranty terms across every seller and bundle.
Before You Buy: Confirm the exact input-voltage version and bundle on the Amazon listing before checkout. HITBOX currently lists both 220V-only and 110/220V HBT250P variants, and foot-pedal inclusion can also vary.
Top Features of the HITBOX TIG Welder HBT250P
AC/DC TIG for Aluminum and Steel
AC/DC capability is the main reason to consider the HBT250P. AC TIG gives you the alternating-current cleaning action needed for aluminum and magnesium alloys, while DC TIG is the normal choice for carbon steel, stainless steel, titanium, copper, and other suitable metals listed by HITBOX.
This makes the machine more flexible than a DC-only TIG welder. You can practice on mild steel, move into stainless work, and still have the AC controls needed for aluminum projects without changing machines.
Adjustable AC Frequency and Balance
AC frequency changes how concentrated or broad the AC arc feels, while AC balance changes the relationship between oxide-cleaning action and penetration. These controls matter most when you weld aluminum because surface oxide and heat control can affect arc stability and bead quality.
The benefit is control, not automatic perfection. You still need clean material, correct shielding gas, proper tungsten preparation, and settings that match the joint and thickness.
Pulse TIG and Adjustable Parameters
The pulse function alternates between higher and lower current levels. Used correctly, it can help you manage heat input, control puddle size, and create a more repeatable rhythm for adding filler metal. HITBOX also describes adjustable start and end current, slope timing, pulse settings, AC frequency, and AC balance across the HBT250P control system.
For thin stainless or heat-sensitive work, those controls can be useful because you can tune how aggressively the arc delivers heat. The downside is that a new TIG user has more variables to understand.
2T/4T Torch Modes
In 2T mode, you normally hold the torch switch while welding. In 4T mode, the trigger sequence can reduce the need to hold the switch continuously during a longer bead. That can make torch handling more comfortable when you are working on longer joints or trying to keep your hand position steady.
Stick Welding as a Backup Process
The HBT250P also supports MMA/Stick welding. HITBOX’s current specification table lists a 20-180A Stick output range, so the machine can cover general repair tasks where TIG’s gas shielding and fine control are not necessary.
How It Performs in Real Use
For Aluminum Practice and Fabrication
The combination of AC TIG, AC frequency, AC balance, and pulse gives you the core controls needed to tune the arc for aluminum work. You can increase cleaning action when surface condition demands it or adjust for stronger penetration once the material is properly prepared.
For Steel and Stainless TIG Work
DC TIG mode makes the HBT250P useful for steel and stainless projects that benefit from a clean, controllable arc. Pulse can be especially helpful when you are trying to limit heat buildup on thinner material, but it still requires correct travel speed, gas coverage, and filler technique.
For Repair and Maintenance Jobs
Stick mode adds flexibility when a TIG setup is unnecessary or inconvenient. That makes the machine more practical in a garage or small workshop where you may switch between precise TIG fabrication and simpler repair work.
For Longer TIG Beads
The 4T trigger mode can reduce constant finger pressure on the torch switch during a longer pass. If you prefer foot control, the HBT250P supports a foot pedal, but you should check whether the selected bundle includes one or requires a separate purchase.
How the HBT250P Elevates Your Welding Skills
The HBT250P can grow with you because it exposes settings that basic TIG machines often hide. As your technique improves, you can experiment with AC frequency, balance, pulse timing, start current, and slope rather than changing to a more adjustable machine later.
That same control depth can slow down a beginner. A good approach is to learn one process at a time, record settings that work on known material, and change one parameter between practice beads so you can see what each control actually does.
Pro Tip: Before changing pulse, AC balance, and AC frequency together, establish a stable basic TIG setup first. Then change one setting at a time and keep notes for the material and thickness you are practicing on.
Setup Tips Before First Use
- Verify power first: Check the machine label and seller listing to confirm whether your unit is 220V-only or the 110/220V version.
- Check your accessories: Confirm the TIG torch, work clamp, electrode holder, gas hose, and any consumables included with your bundle before setup.
- Plan for shielding gas: TIG welding requires the correct inert shielding-gas setup. Do not assume every bundle includes every gas-control accessory.
- Confirm foot-pedal inclusion: The machine supports remote amperage control, but HITBOX sells bundles with and without a pedal.
- Start with the manual: Match polarity, tungsten, gas flow, amperage, AC/DC mode, and other settings to your material and welding process.
Keeping Safe While Welding With the HBT250P
The HBT250P includes VRD and protection systems for overvoltage, overcurrent, overload, and overheating, plus fan cooling. Those features help protect the machine, but they do not replace normal welding safety practices.
| Protective Gear or Practice | Why It Matters |
|---|---|
| Proper welding helmet | Protects your eyes and face from arc radiation and sparks. |
| Welding gloves | Helps protect your hands from heat, sharp metal, and spatter. |
| Flame-resistant clothing | Reduces exposure to sparks and hot metal. |
| Ventilation or fume control | Helps limit exposure to welding fumes. Use appropriate local exhaust and respiratory protection when the job requires it. |
| Dry, grounded work area | Reduces electrical risk. Follow the machine manual and applicable electrical and welding-safety requirements. |
Do not operate the welder in wet conditions, bypass its protection systems, or use an electrical supply that does not match the machine. If you are uncertain about circuit capacity, wiring, ventilation, shielding gas, or safe setup, use qualified professional guidance before welding.
Pros and Cons of the HBT250P Performance
Pros
- AC/DC TIG covers aluminum plus common steel and stainless applications.
- Pulse, AC frequency, and AC balance provide useful control over heat and arc behavior.
- 2T/4T modes support both short work and longer torch-trigger sequences.
- MMA/Stick mode increases usefulness for repair and general fabrication.
- Compact dimensions make it easier to place in a home shop than many larger TIG systems.
Cons
- The number of adjustable settings creates a real learning curve for first-time TIG users.
- Voltage and included accessories can vary by HBT250P version or bundle.
- Current HITBOX warranty wording is inconsistent, so coverage should be confirmed before purchase.
Customer Support and Warranty: What to Confirm
HITBOX promotes ongoing product support, but the current HBT250P product page contains conflicting warranty language. One part of the page says five years, while the site’s support section states a 3-year standard warranty with a 30-day return and exchange service.
Because warranty terms can depend on seller, region, and purchase channel, you should treat the warranty as a detail to verify rather than assuming the longest statement applies to every Amazon purchase. Save your order record and check the current seller terms before the return window closes.
Is It Worth the Price?
The HBT250P is best viewed as a value-focused AC/DC TIG machine for buyers who care more about feature access than a stripped-down beginner interface. You get 200A-class TIG output, AC aluminum capability, pulse, adjustable AC controls, 2T/4T operation, and Stick welding in one unit.
It is worth considering if those controls match the projects you plan to do and you are comfortable learning the settings. It is not the best fit if you want a highly simplified setup, guaranteed dual-voltage operation without checking the variant, or a premium accessory package with completely uniform warranty terms.
How It Compares to Alternatives
The PrimeWeld TIG225X is a step-up alternative if you want 225A TIG output, 120/240V input, multiple AC waveforms, and a more complete accessory package that includes a foot pedal and regulator. It is also a larger, heavier machine and sits in a higher price tier.
The AHP AlphaTIG 203Xi is another strong comparison if you want 120/240V input, 200A TIG output at a stated 60% duty cycle on 240V, adjustable AC controls, pulse, and an included foot pedal. The HBT250P makes the most sense when you want similar core AC/DC TIG flexibility in a more compact, value-oriented package and are willing to verify the exact bundle details yourself.
Frequently Asked Questions
Can the HITBOX HBT250P weld aluminum?
Yes. The HBT250P supports AC TIG and gives you adjustable AC balance and AC frequency, which are important controls for aluminum welding. You still need correct material preparation, shielding gas, tungsten, and technique.
Is the HBT250P a 250A TIG welder?
The model name can suggest 250A, but HITBOX’s current specification table lists a TIG output range of 10-200A. For buying decisions, use the current technical specification rather than assuming the model number equals maximum output.
Does the HBT250P run on 110V and 220V?
HITBOX lists both a standard 220V version and a dual-voltage 110/220V HBT250P variant. Check the exact Amazon option and the label on the machine before connecting power.
Does the HBT250P include a foot pedal?
The welder is compatible with foot-pedal amperage control, but HITBOX sells different combinations. Some bundles include a pedal and others do not, so confirm the contents of the selected listing before ordering.
What metals can the HBT250P weld?
HITBOX lists aluminum, stainless steel, copper, titanium, magnesium alloy, and carbon steel among the weldable metals for this model. The correct AC or DC mode, filler, tungsten, shielding gas, and settings depend on the material.
Is the HBT250P suitable for beginners?
A beginner can learn on it, but the machine is more adjustable than a basic TIG welder. You will get better results if you learn the core process first and add pulse, AC balance, frequency, and slope adjustments one at a time.
How portable is the HBT250P?
Its listed machine dimensions are 29.7 × 11.5 × 19.8 cm, so the power source is compact for an AC/DC TIG unit. Published weight figures vary across HITBOX and retailer material, so check the current listing if carrying weight is an important part of your decision.
What warranty comes with the HBT250P?
HITBOX’s current product page contains both five-year wording and a site support banner that states a 3-year standard warranty. Confirm the warranty that applies to your seller, country, and exact purchase before relying on a specific term.
The Bottom Line
The HITBOX HBT250P is a strong fit for hobbyists and small fabricators who want a compact AC/DC TIG and Stick welder with pulse, AC balance, AC frequency, and 2T/4T control. Its biggest strength is the amount of adjustment you get around a verified 200A TIG range, while its main limitation is the need to confirm the exact voltage, bundle contents, and warranty terms before buying.
Choose it if you want room to grow into more advanced TIG settings. Skip it if you want the simplest beginner machine or you need every accessory and support term to be standardized without extra checking.
