A welding curtain needs to do more than divide a shop. It should help shield nearby people from welding arc light and spatter while still fitting the space you need to separate. The Jackson Safety Welding Curtain 36296 is a 6 ft × 6 ft Gold transparent PVC curtain designed for that job, with 14-mil material and built-in grommets for hanging. Its main strengths are its welding-specific light filtering, straightforward setup, and recognized flame-resistance standards, but you still need a suitable frame or mounting system and proper personal protective equipment.
Quick Verdict
Rating: 8.7/10
Best For: Welding shops, fabrication areas, maintenance bays, and home workshops that need a transparent 6 ft × 6 ft welding barrier.
Bottom Line: The Jackson Safety 36296 combines 14-mil PVC, Gold welding-filter material, and grommet mounting in a practical single curtain. Its main limitation is that it is a curtain rather than a complete freestanding screen, so your mounting setup matters.
Key Takeaways
- The verified 36296 variant is a Gold transparent welding curtain measuring 6 ft × 6 ft.
- Its transparent PVC/vinyl material is 14 mil, or 0.014 inch, thick.
- The Gold material is designed to filter far and near ultraviolet radiation and blue light while allowing supervision of the work area.
- Built-in grommets make the curtain easier to hang from a compatible frame or support system.
- The curtain meets listed flame-resistance standards including ANSI/FM 4960, California Fire Marshall requirements, and NFPA 701.
- It can help create a containment area for more efficient fume and vapor extraction, but it does not replace a ventilation or extraction system.
Jackson Safety 36296 Specifications
| Specification | Detail |
|---|---|
| Brand | Jackson Safety |
| Product line | Wilson transparent welding curtain |
| Model | 36296 |
| Product type | Transparent welding curtain |
| Color | Gold |
| Nominal size | 6 ft × 6 ft (72 × 72 inches) |
| Material | Transparent PVC/vinyl |
| Thickness | 14 mil / 0.014 inch |
| Fabric weight | 13 oz |
| Temperature rating | 150°F |
| Hanging method | Built-in grommets |
| Grommet spacing | Approximately 8 inches apart along one width side and 16 inches apart along both height sides |
| Standards | ANSI/FM 4960, California Fire Marshall, NFPA 701 |
| Package | One welding curtain |
| Best use | Creating a transparent barrier around indoor welding work areas |

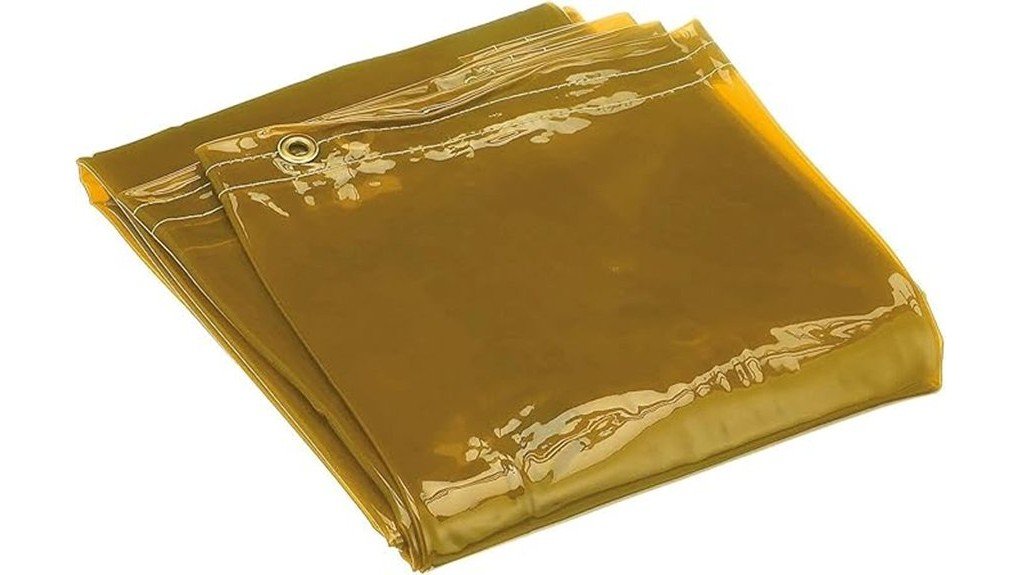

What Is the Jackson Safety 36296 Welding Curtain?
The Jackson Safety 36296 is part of the Wilson line of transparent welding curtains. This specific Amazon-linked version is the Gold 6 ft × 6 ft curtain with 14-mil PVC/vinyl material.
Its purpose is to separate welding activity from nearby workers and bystanders while still allowing some visual supervision through the curtain. The Gold material is designed to filter far and near UV radiation and blue light from welding operations rather than acting like an ordinary clear plastic room divider.
You are buying the curtain itself, not a complete freestanding welding booth. The grommets make mounting easier, but you should plan your frame, hooks, track, or other compatible hanging method before ordering.
Who Should Buy It?
Best For
- Fabrication and maintenance areas that need a 6 ft × 6 ft transparent welding barrier.
- Shops where supervisors need some visibility into the welding area.
- Home or professional workshops that already have a compatible hanging frame or support system.
Skip If
- You need a complete freestanding screen with the frame included.
- Your opening requires substantially more coverage than a 6 ft × 6 ft curtain provides.
- You need a product specifically rated and configured for exposed outdoor use.
Before You Buy: Measure the area you need to cover and plan the hanging system first. This listing is for the curtain, so do not assume that a freestanding frame, hooks, or complete booth structure is included.
Welding Light Protection and Safety Features
One of the main reasons to use the 36296 instead of a standard plastic divider is its welding-specific optical protection. Jackson Safety describes the Gold Wilson material as filtering far and near ultraviolet radiation and blue light while maintaining visibility into the work area.
The transparent barrier also helps keep sparks and spatter separated from bystanders. That makes it useful when welding takes place near assembly, maintenance, fabrication, or other occupied shop areas.
The curtain should still be treated as one part of a complete welding safety setup. It does not eliminate the need for appropriate welding helmets, eye protection, protective clothing, ventilation, safe distances, and other controls required for the operation.
Material, Thickness, and Durability
The 36296 uses transparent PVC/vinyl with a verified thickness of 14 mil, or 0.014 inch. That is substantially different from a thin household plastic sheet because it is made specifically for welding-area separation.
The material is designed to resist tearing and is sold as flame-resistant welding curtain material. Verified specifications also list a 150°F temperature rating and a 13 oz fabric weight.
Flame resistance should not be confused with fireproof construction. Keep the curtain installed and maintained according to the manufacturer’s instructions, and do not treat it as a surface that can safely contact hot metal, active flames, or unrestricted welding heat.
Flame-Resistance Standards
The 36296 is listed as meeting ANSI/FM 4960, California Fire Marshall, and NFPA 701 requirements. These standards are useful when you are selecting a welding curtain for a shop where material flame resistance matters.
Standards compliance does not turn the curtain into personal protective equipment. You still need to follow your workplace welding procedures and applicable safety requirements for the work being performed.
Visibility and the Gold Tint
Gold is one of several transparent Wilson welding-curtain colors. Jackson Safety describes the Gold option as allowing supervision and maintaining a relatively bright working environment while filtering welding-related UV and blue light.
This makes the Gold version a sensible choice when visibility through the divider matters. If your main priority is reducing more visible arc light, Jackson Safety also produces Green transparent curtains designed to decrease total light from the welding arc. Orange versions are intended to put more light back into the welding area.
Fume Containment and Workspace Separation
A curtain can help create a more defined welding zone. Jackson Safety states that its transparent welding curtains create a containment barrier that can support more efficient fume and vapor extraction.
The key distinction is that the curtain does not extract fumes by itself. You still need a correctly designed exhaust, local extraction, or ventilation system. The curtain can help that system by reducing how freely fumes move into adjacent areas.
Installation and Grommet Layout
The built-in grommets are one of the most practical features of the 36296. For this ASIN-matched version, the grommets are described as being spaced about 8 inches apart along one width side and 16 inches apart along both height sides.
That layout gives you multiple support points rather than forcing the curtain to hang from only its corners. Even support can help reduce sagging and make it easier to create a defined barrier.
Setup Tips Before First Use
- Measure the opening. The curtain is nominally 6 ft × 6 ft, so confirm that this provides the coverage your welding area needs.
- Plan the support system. Decide whether you will use a welding-screen frame, track, hooks, or another compatible mounting method.
- Use multiple grommets. Supporting the curtain across its available grommets spreads the load better than hanging it from only one or two points.
- Check clearance. Position the curtain so it forms a barrier without interfering with the welder, cables, hot workpieces, or normal movement.
- Inspect it regularly. Replace or remove the curtain from service if damage could reduce its ability to provide the intended barrier.
Pro Tip: Measure both the width and the height of your planned barrier before ordering. A 6 ft × 6 ft curtain works well for many individual bays, but larger openings may require a larger curtain or multiple properly installed panels.
How It Performs in Real Use
For a Small Welding Bay
The 6 ft × 6 ft size is practical for separating an individual welding station or compact fabrication area. You get enough material to form a meaningful visual barrier without managing an oversized curtain.
For Shops That Need Visual Supervision
The Gold transparent material is useful when you need separation without completely blocking the view into the work area. Jackson Safety specifically positions Gold as a choice that allows supervision while filtering welding-related UV and blue light.
For Areas With Fume Extraction
When the curtain is arranged around a welding zone, it can help contain fumes and vapors so a separate extraction system can work more efficiently. You should view the curtain as a containment aid, not as a substitute for ventilation.
For Reconfigurable Work Areas
Because the curtain uses grommets rather than being permanently attached to a wall, you can use it with an appropriate removable or movable support system. That is helpful in shops where welding areas need to be changed as jobs and equipment move.
Cleaning and Maintenance
For routine cleaning, the original product guidance in this review recommends wiping the curtain gently with a damp cloth and mild detergent. Avoid aggressive cleaning methods or harsh chemicals that could damage the transparent material.
During cleaning, inspect the PVC and grommet areas for tears, excessive wear, or other damage. Keeping the surface clean also makes it easier to maintain useful visibility through the Gold material.
Pros and Cons
Pros
- Verified 14-mil PVC/vinyl construction made for welding-area separation.
- Gold transparent material filters far and near UV radiation and blue light.
- 6 ft × 6 ft size works well for many individual welding stations.
- Built-in grommets simplify hanging from a compatible support system.
- Meets listed ANSI/FM 4960, California Fire Marshall, and NFPA 701 standards.
Cons
- The curtain alone does not provide a freestanding frame or complete welding booth.
- A 6 ft × 6 ft panel may be too small for wide bays or large fabrication areas.
- It supports fume containment but does not replace a proper extraction or ventilation system.
Is It Worth the Price?
The Jackson Safety 36296 makes the most sense for buyers who value a welding-specific transparent barrier from an established safety-equipment brand. Its 14-mil construction, verified flame-resistance standards, Gold optical filtering, and ready-to-hang grommets give you more purpose-built features than a basic plastic divider.
The value depends heavily on what you already own. If you already have a compatible frame or overhead hanging system, the curtain can be a straightforward addition. If you need an entire portable welding screen, buying a separate curtain and frame may be less convenient than choosing a complete screen kit.
How It Compares to Alternatives
The Tillman ArcShield 601R and 604R are other transparent 14-mil welding curtains worth comparing. Tillman offers Yellow and Blue versions with grommets on 12-inch centers and lists welding-related optical and flame-resistance approvals.
Within Jackson Safety’s own Wilson range, Green is a better comparison if you want to reduce more visible arc light, while Orange is designed to return more light into the welding area. The 36296 Gold version makes the most sense when you want a balance between welding-light filtering and visibility for supervision.
Frequently Asked Questions
What size is the Jackson Safety 36296 welding curtain?
The verified 36296 Gold curtain is nominally 6 ft × 6 ft, or 72 × 72 inches. Measure the opening you need to cover before ordering, especially if you need overlapping panels.
Does the Jackson Safety 36296 include a frame?
The verified product is a welding curtain rather than a curtain-and-frame combo. Plan on using a compatible existing frame, hooks, track, or another suitable mounting system.
Does the Gold curtain filter welding UV and blue light?
Yes. Jackson Safety describes its Gold Wilson curtain material as filtering far and near ultraviolet radiation and blue light. The transparent Gold tint is also intended to allow supervision of the welding area.
Can you use the Jackson Safety welding curtain outdoors?
The ASIN-matched technical information identifies this 36296 variant for indoor use. Do not assume that the curtain or your mounting system is designed for wind or exposed outdoor conditions unless Jackson Safety approves that specific setup.
How are the grommets spaced?
For this ASIN-matched version, the grommets are described as approximately 8 inches apart along one width side and 16 inches apart along both height sides. Using several support points can help the curtain hang more evenly.
How do you clean the welding curtain?
For routine care, wipe the surface gently with a damp cloth and mild detergent. Avoid harsh chemicals, and inspect the curtain and grommets for damage while cleaning it.
Does this welding curtain replace PPE or fume extraction?
No. The curtain is a barrier for separating the work area and can help contain welding fumes for more efficient extraction, but it does not remove those fumes itself. You still need appropriate PPE, ventilation, and other welding safety controls.
Should you choose Gold, Green, or Orange?
Gold is useful when you want welding-light filtering while maintaining visibility for supervision. Jackson Safety describes Green as reducing more total welding-arc light, while Orange is designed to put more light back into the welding area.
The Bottom Line
The Jackson Safety 36296 Welding Curtain is a strong choice when you need a 6 ft × 6 ft transparent welding barrier with 14-mil PVC, Gold optical filtering, grommet mounting, and recognized flame-resistance standards. It is best for buyers who already have a suitable mounting system, while anyone needing a complete freestanding barrier should compare curtain-and-frame kits instead.
